Atlona AT-UHD-CLSO-612 User Manual

6 input switcher and scaler with hdbaset and mirrored hdmi output
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

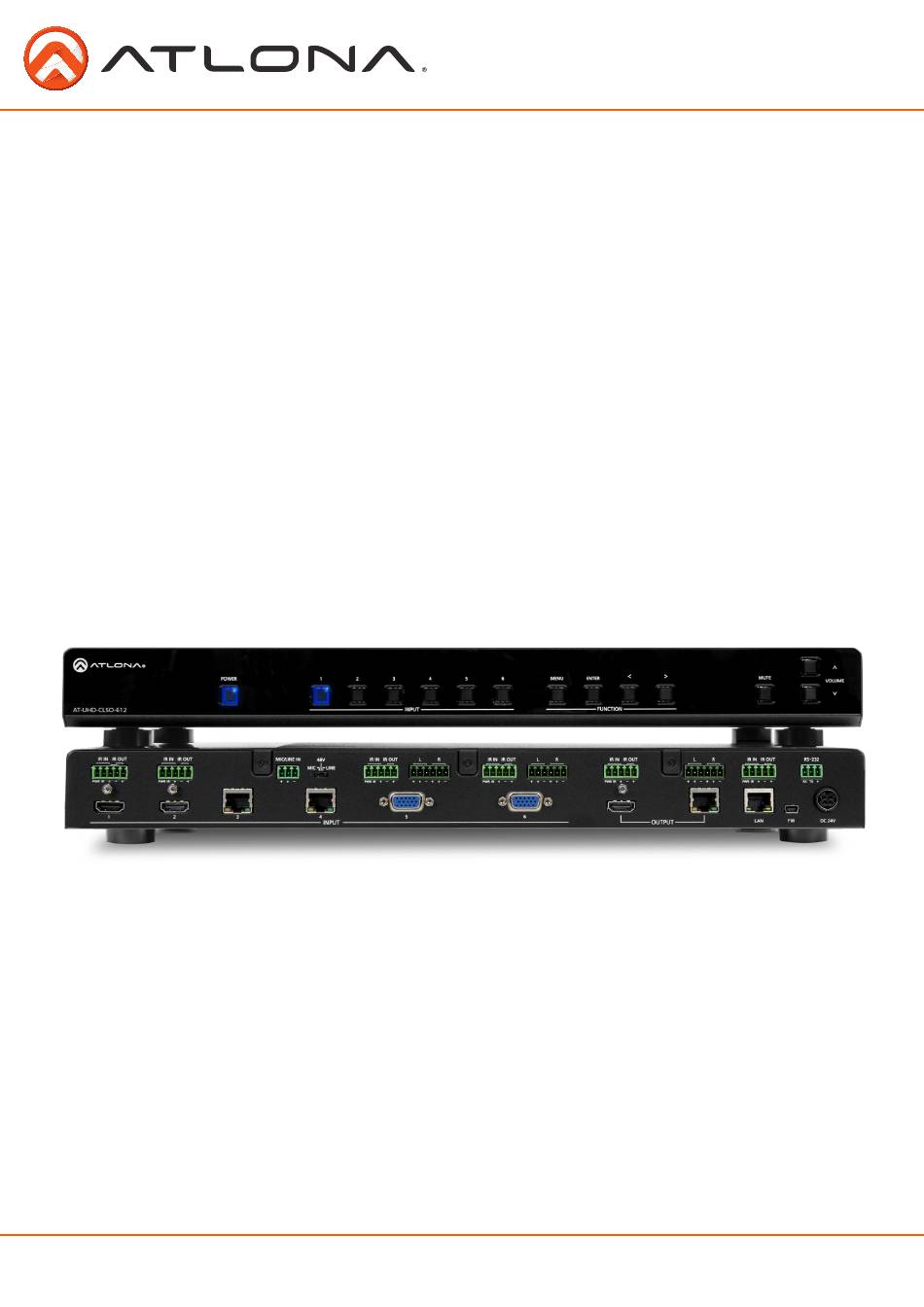

Atlona 6 Input Switcher and
Scaler with HDBaseT and
Mirrored HDMI Output
AT-UHD-CLSO-612
User Manual
Please check http://www.atlona.com/UHD-CLSO-612.html
for the most recent firmware update or manual.
Toll free: 1-877-536-3976
atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading

Related Manuals for Atlona AT-UHD-CLSO-612

Summary of Contents for Atlona AT-UHD-CLSO-612

  • Page 1 Atlona 6 Input Switcher and Scaler with HDBaseT and Mirrored HDMI Output AT-UHD-CLSO-612 User Manual Please check http://www.atlona.com/UHD-CLSO-612.html for the most recent firmware update or manual. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 2: Table Of Contents

    20. Registration ..................35 Revision B - Firmware Beta Auto Switching Pg. 3, 15, 20, 27 VGA Preferred Timing Pg. 18, 27 HDVS Transmitters Pg. 20 Resolutions Pg. 10, 26 Video Adjustment Pg. 26 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 3: Introduction

    AV system. Package Contents • 1 x AT-UHD-CLSO-612 • 11 x Female Captive Screw Connector (6 pin: audio, 5 pin: IR, 3 pin: RS-232, 3 pin: MIC/Line) • 1 x 24V/2.7A DC power supply adaptor (AT-PW24V2.7A) •...

  • Page 4: Panel Description

    Panel Description Front Panel < > POWER MENU ENTER MUTE VOLUME AT-UHD-CLSO-612 INPUT FUNCTION IR IN IR OUT IR IN IR OUT IR IN IR OUT IR IN IR OUT IR IN IR OUT IR IN IR OUT RS-232 MIC/LINE IN...

  • Page 5: Wall/Rack Mounts

    Please use EIA/TIA-568-B termination (T568B) at anytime Important! 4K signals are sensitive to cable quality and installation technique. It is recommended to use CAT6a/7 Solid core cables only. Note: For cable distances see the specifications on page 32. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 6: Analog Multi-Format Inputs

    CLSO-612. Then each input to the matrix could be connected to a different format analog signal. A 3rd party control system could ensure the correct format is selected to match the input to the switcher. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 7: Audio Connections

    Important! When terminating cables, please ensure exposed adjacent wires do not touch. This may result in a short that can damage connected devices. BALANCED UNBALANCED Important! With unbalanced connections a jumper is needed between ground and negative to reduce noise Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 8: Microphone

    Supplies 48 volts. Balanced MIC/LINE IN MIC/LINE IN LINE Connect wireless microphone receivers (or other sources) with line level outputs using this setting. Either balanced or unbalanced connections may be used. LINE LINE Balanced Unbalanced Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 9 Color 0 to 100 Tint 0 to 100 H Position 0 to 40 Phase 0 to 63 Disabled Medium High Disabled Medium High Disabled Medium High Scale Full Overscan Underscan Letterbox Panscan Follow Input Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 10 640x480@75 800x600@60 800x600@72 800x600@75 1024x768@60 1024x768@72 1024x768@75 PC-2 1280x768@60 1280x800@60 1280x960@60 1280x1024@60 1360x768@60 1366x768@60 1400x1050@60 1440x900@60 1600x900@60 1600x1200@60 1920x1200@60 2560x1600@60 Network Network Status MAC Address xx-xx-xx-xx-xx-xx IP Address xxx.xxx.x.xxx Subnet xxx.xxx.xxx.x Gateway xxx.xxx.x.x DHCP Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 11 (ex. 16x9) Color Space xxxx (ex. YUV) Color Depth xxxx (ex. 24) Audio Info Input xxxx (ex. HDMI 1) Audio Format xxxx (ex. PCM) Sampling Rate xxxx (ex. 48 KHz) Channels xxxx (ex. 2-Ch) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 12: Tcp/Ip And Gui

    TCP/IP WebGUI Atlona has created an easy to use WebGUI for initial setup and later changes to the configuration of the CLSO-612. To begin, connect the LAN port of the CLSO-612 to your network. Type the IP address of the CLSO-...
  • Page 13 The home screen tab will display the general system information. If an HDMI or HDBaseT port is the current input, audio will display (see image above). If an analog port is selected then no audio information is displayed. (see below) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 14 If your control system supports password protection, set the login mode to on. The GUI always requires a password. Note: The username and password used in IP Login Mode will be the same login information as the WebGUI. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 15 Note: When the output is set to UHD resolutions, UHD sources are passed through without scaling. Frame rates are not changed. (ex. if 3840x2160@30Hz input is received, output will remain 30Hz even if output is set to 24Hz) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 16 OSD Display Settings OSD func - Turns the CLSO’s display OSD menu on/off OSD logo - Turns the atlona logo on/off when switching sources *recommended setting - off* OSD info - Turns the source information on the display on/off when switching Toll free: 1-877-536-3976 atlona.com...
  • Page 17 Note: User information will display for the admin only. Note: Only the admin password can be changed. The admin username will always remain “root”. If the admin password is lost the system must be returned to factory settings and setup repeated. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 18 Audio settings adjust output volume for all sources including the microphone. Master - Affects all sources at the same time Inputs - Used to balance levels from each source. Note: For best results, gains should be balanced between master and source levels. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 19 The further right the slider is, the more sensitive the setting. 7. Set program decrease to ensure when ducking is triggered the program level is low enough the speaker can be heard. Fine tuning these settings will help achieve the best results. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 20 IMPORTANT - Firmware version must be 1.2.2 (and higher) or 2.2.2 (and higher) to be compatible with the CLSO. View firmware tab to verify which firmware is best for the extender being used. HDTX-WP can be used to pass RS-232 and IR to the source. HDTX-WP manual can be found at: http://www.atlona.com/HDTX-WP.html Toll free: 1-877-536-3976 atlona.com...
  • Page 21 (see picture 1). IR pin outs have been included for the included IR emitter and IR receiver (see picture 2 & 3). The wires are colored for each pin (see picture 4 and 5). Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 22 IR OUT RS-232 MIC/LINE IN LINE PWRIR PWRIR PWRIR PWRIR PWRIR PWRIR RX TX INPUT OUTPUT DC 24V DC 24V CAT5e/6/7 OUT AT-HDTX-IR POWER IR IN IR OUT FIRMWARE HDMI IN LINK PWR IR Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 23: On Screen Display

    SXGA - 1280x1024 Auto - Auto VGA setup SXGA+ - 1440x900 UXGA - 1600x1200 WUXGA - 1920x1200 720p 1080p 4Kx2K - 3840x2160 Native - Upscales/downscales the output signal to match the HDBaseT display’s preferred resolution Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 24: Rs-232

    Bits Per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow Control: None. (see picture C) Set up is done and any hyperterminal program may be used to control the CLSO-612 now. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 25: Commands

    Brings up the software versions: ex. Version mcu firmware [mcu] Version [Y] Version [Y] OSD menu [osd] ex. Version osd ex. Version x.x.xx DSP [dsp] FPGA [fpga] Type AT-UHD-CLSO-612 Brings up the model information Mreset Mreset Reset device to manufacture default Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 26 OSD menu [osd] ex. Version osd ex. Version x.x.xx DSP [dsp] FPGA [fpga] Type AT-UHD-CLSO-612 Brings up the model information Mreset Mreset Reset device to manufacture default Set output video format to any of the [Y] resolutions below VFmtRes XX VFmtRes [Y] Ex: Set output video format to 1080p@60 =>...
  • Page 27 VGA 2 [X] preferred timing - 1280x800 1920x1080 1024x768 1280x720 1920x1200 1366x768 800x600 1600x900 2560x440 3840x2160 sta Read status VGA [X] preferred timing - 1280x800 1920x1080 1024x768 1280x720 1920x1200 1366x768 800x600 1600x900 sta Read status Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 28: Ip Commands

    For example if you wish to change the baud rate of the switcher to 38400 the command would look like this: CSpara[38400,8,0,1] Note: Default for the switcher is: Baud rate-115200bps, Data length-8bit, Parity-None, Stop Bit-1 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 29: Control Diagram

    RS232 FIRMWARE AT-HDVS-TX HDMI 1 HDMI 2 VGA IN HDMI OUT LINK PWR IR RX TX POWER DISPLAY INPUT AUDIO ON/OFF SELECT HDMI 1 HDMI 2 Use RS-232 commands to select inputs on AT-HDVS-TX Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 30: Connection & Installation

    Connection and Installation HDMI HDBaseT Audio < > POWER MENU ENTER MUTE VOLUME AT-UHD-CLSO-612 INPUT FUNCTION IR IN IR OUT IR IN IR OUT IR IN IR OUT IR IN IR OUT IR IN IR OUT IR IN IR OUT...

  • Page 31: Control Drivers

    CLSO-612: OSD and Firmware. Note: Atlona is constantly improving and updating features and stability. It is recommended that you check to make sure you are on the most current firmware before installation, especially when using a control system.

  • Page 32: Specifications

    Switchable - Compliant / Non compliant Temperature Operating 0°C to 50°C 32°F to 122°F Storage -20°C to 60°C -4°F to 140°F Humidity 20 to 90% non-condensing Power Consumption Idle Consumption 9.3W Supply Input: AC100~240V 50/60Hz Output: DC 24V/2.7A Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 33: Safety

    It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

  • Page 34: Warranty

    Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.

  • Page 35: Registration

    Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
