Part Names and Functions

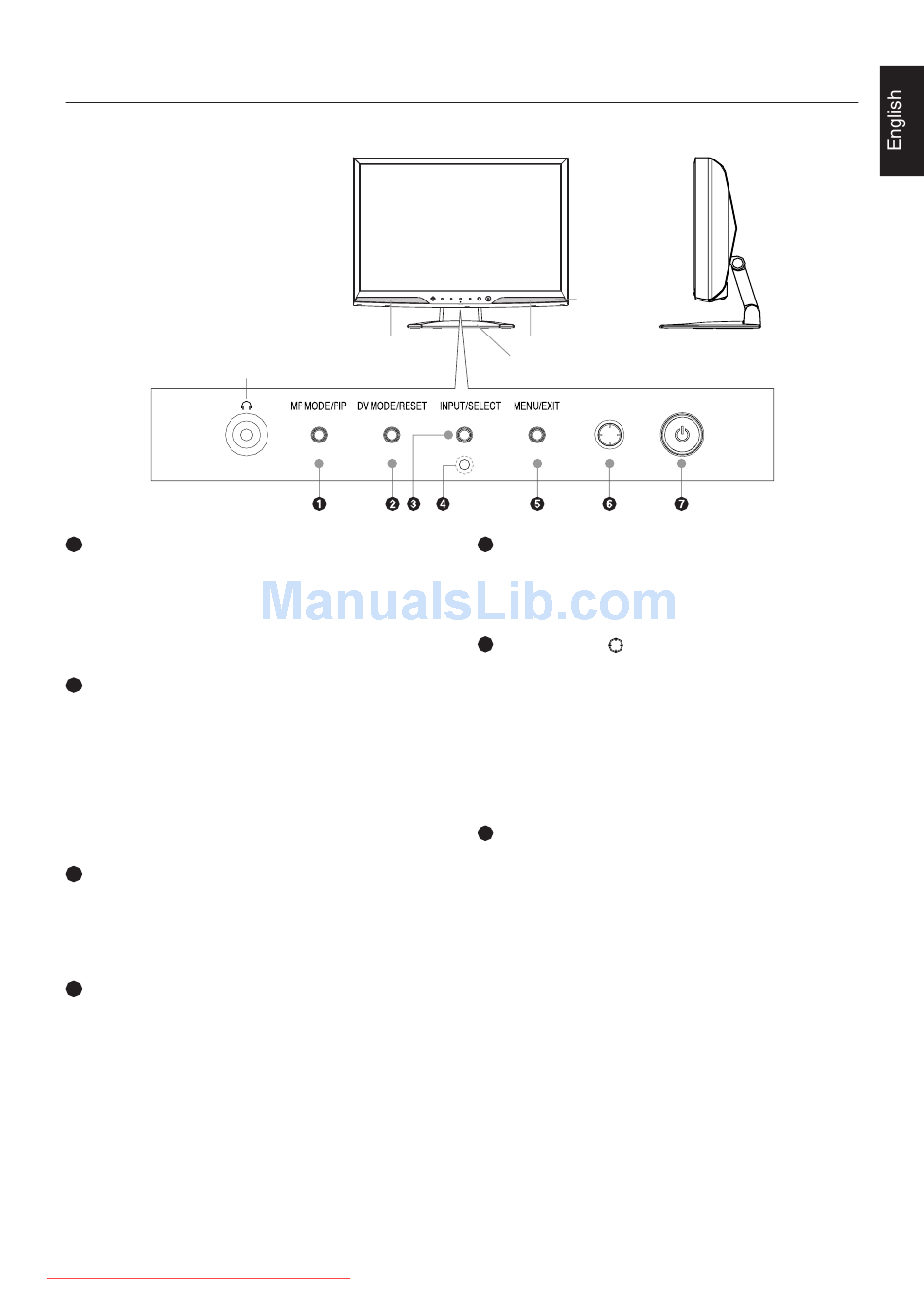

Front Panel

Headphone output
1
MP MODE/PIP Button
When PIP Screen Not Shown (Hot Key Function):
Pressing the button cycles MP Mode. (Four Levels) (Page 23
and 30) [OFF], [LEVEL1], [LEVEL2], and [LEVEL3].
Holding down the button turns on the PIP Function.
When PIP Screen Shown: Pressing the button toggles the main
screen and the sub-screen.
Holding down the button turns off the PIP Function.
2
DV MODE/RESET Button
When OSD Screen Not Shown (Hot Key Function):
The button cycles DV Modes (Page 23 and 30).
• When PC Input or HDMI Input Selected (Eight Modes):
[STANDARD1], [STANDARD2], [TEXT], [sRGB], [PHOTO],
[GAME1], [GAME2], and [MOVIE].
• When Video Input Selected (Five Modes): [STANDARD1],
[STANDARD2], [GAME1], [GAME2], and [MOVIE].
The current status is shown at the top right of the screen.
When OSD Screen Shown: Displays the corresponding reset
screen for the currently shown controls.
3
INPUT/SELECT Button
When OSD Screen Not Shown (Hot Key Function): Pressing the
button cycles through the input signals. [D-SUB], [DVI-D], [HDMI1],
[HDMI2], [VIDEO1], and [VIDEO2].
Holding down the button displays the audio input select screen.
When OSD Screen Shown: The button specifies the control to set.
4
MENU/EXIT Button
Turns OSD Screen on and off.
While operating OSD Screen, the button returns to the previous
screen.
NOTE: For detailed button operations in the OSD Screen, see "OSD Screen Operations" on page 21 and
"Front Panel Key Operations" on page 41.
The duration for holding down a button is approximately three seconds.
Caution: Pressing the Control button with force may cause damage to the controller.
Downloaded from ManualMonitor.com Manuals
Speaker
Stand
5
Brightness Sensor
This sensor detects the room brightness.
Then sensor becomes active when the Brightness Sensor is turned
on (Page 24 and 30).
Do not leave in the shadow when using the Brightness Sensor.
6
Control Button (
When OSD Screen Not Shown (Hot Key Function): Pressing the
top or bottom of the button controls the audio volume.
Pressing the right or left of the button controls the brightness.
Pressing the middle of the button turns mute on and off.
When OSD Screen Shown: Pressing the top, bottom, left, right, or
middle of the button controls the OSD Screen.
When PIP Screen Shown (Hot Key Function): Pressing the left or
right of the button cycles input signals for PIP Screen.
Cycling may not be available according to the input signal
combination (Page 27).
7
Power Switch
This switch becomes active only when the main power is on.
When in Stand By: Pressing the button turns on the monitor and
the blue LED is lit.
When in Operation: Pressing the button turns off the monitor and
the blue LED.
Tip: Do not turn on and off the power repeatedly in a short period of
time. This may damage the monitor.
LED: LED illuminates blue when the monitor is turned on.
LED flashes blue while the Power Management Functions are in
operation (Page 34).
If the LED is not lit even after the monitor is turned on, check if the
LED brightness is too low using the LED Brightness Adjustment
Function (Page 28).
English-5
Remote control
receptor
Speaker
)
