Part Names and Functions

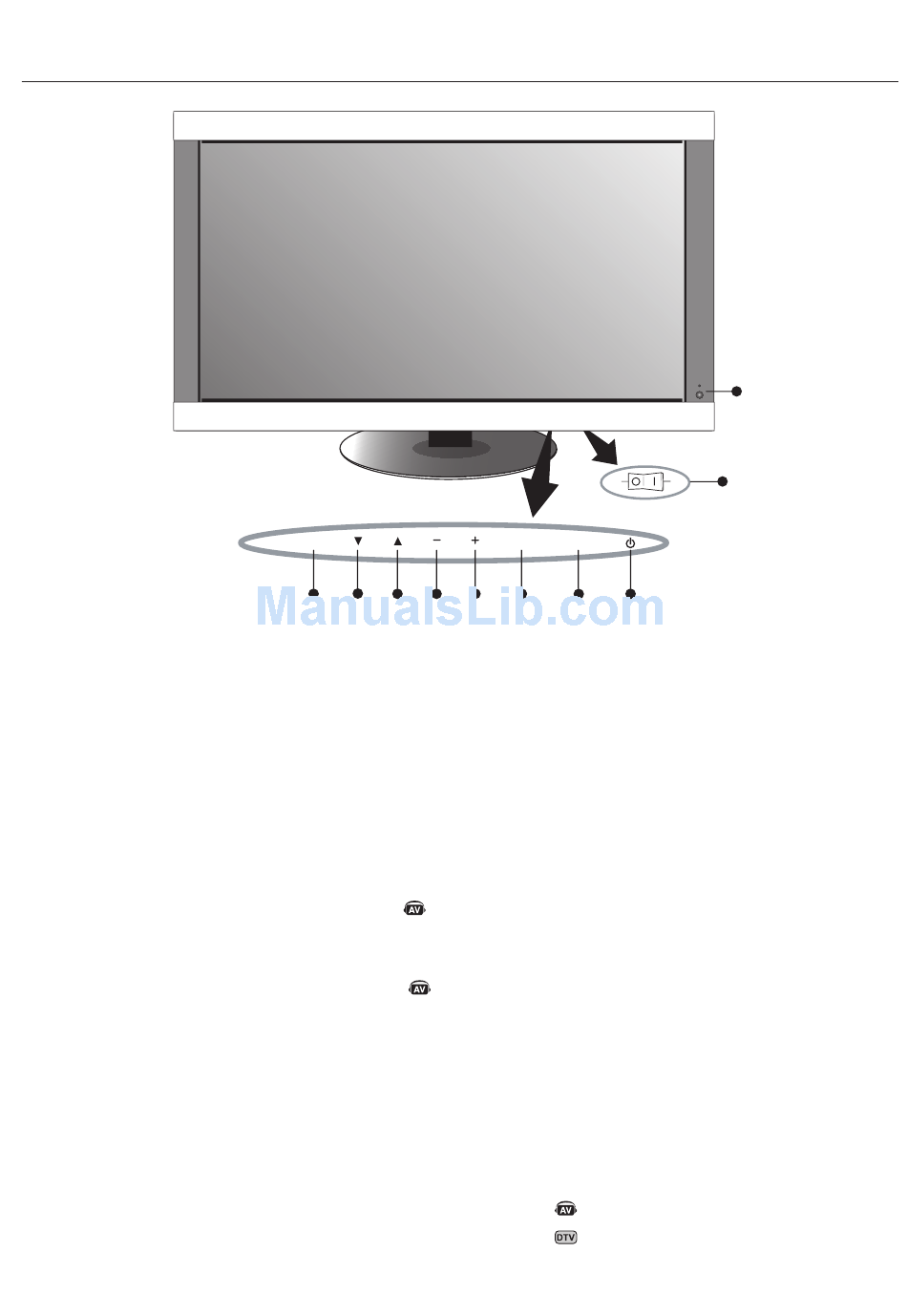

Control Panel

1) POWER
Switches the power on/off. (See page 24)
2) MUTE
Switches the audio mute ON/OFF.
3) INPUT
Selects which signal connected to the display is shown.
([DVI], [VGA], [RGB/HV], [HDMI], [DVD/HD],
[VIDEO], [TV])
Acts as SET button within the OSM menu.
4) PLUS (+)
Increases the setting adjustment within OSM menu.
Increases the audio output level when the OSM is off.
5) MINUS (-)
Decreases the setting adjustment within OSM menu.
Decreases the audio output level when the OSM is off.
6) UP (▲)
Activates the OSM menu when the OSM menu is off.
Moves the highlighted area up to select which setting to be
adjust within OSM menu.
7) DOWN (▼)
Activates the OSM menu when the OSM menu is off.
Moves the highlighted area down to select which setting to
be adjust within OSM menu.
EXIT
5
8 7 6 4
8) EXIT
9) Remote control sensor and Power indicator
10) Main Power Switch
English-10
1-11
OFF
INPUT MUTE
3 2 1
Activates the OSM menu when the OSM menu is off.
Exits from the current menu being displayed to the
previous menu within the OSM.
Receives the signal when using the wireless remote control.
(See page 14)
Glows green when the LCD monitor is in active. Glows red
when the LCD is in POWER OFF (ECO standby) mode.
Glows Amber when the LCD is in POWER OFF (standby).
Amber blinks when the monitor is in Power Save Mode.
Green and Amber blink alternately while in Power Standby
with the "SCHEDULE SETTINGS" function enabled.
When a component failure is detected within the monitor,
the indicator will blink red.
Seesaw Switch for the main power on/off.
Control Key Lock Mode
This function completely locks out access to all Control Key
functions.
To enable the Control Key Lock Mode, press both "▲" and
"▼" simultaneously and hold down for three (3) seconds.
To go back to user mode, press both "▲" and "▼"
simultaneously and hold down for three (3) seconds.
Denotes aV unit function. all aV functions are enabled with the aV
unit is installed. not all models have the aV unit installed.
Denotes Digital tuner function. all DtV and aV functions are
enabled when the DtV unit is installed. not all models will have
the digital tuner installed.
9
ON 10
Buttons and Main Power
Switch are located underneath
and behind the bezel.
