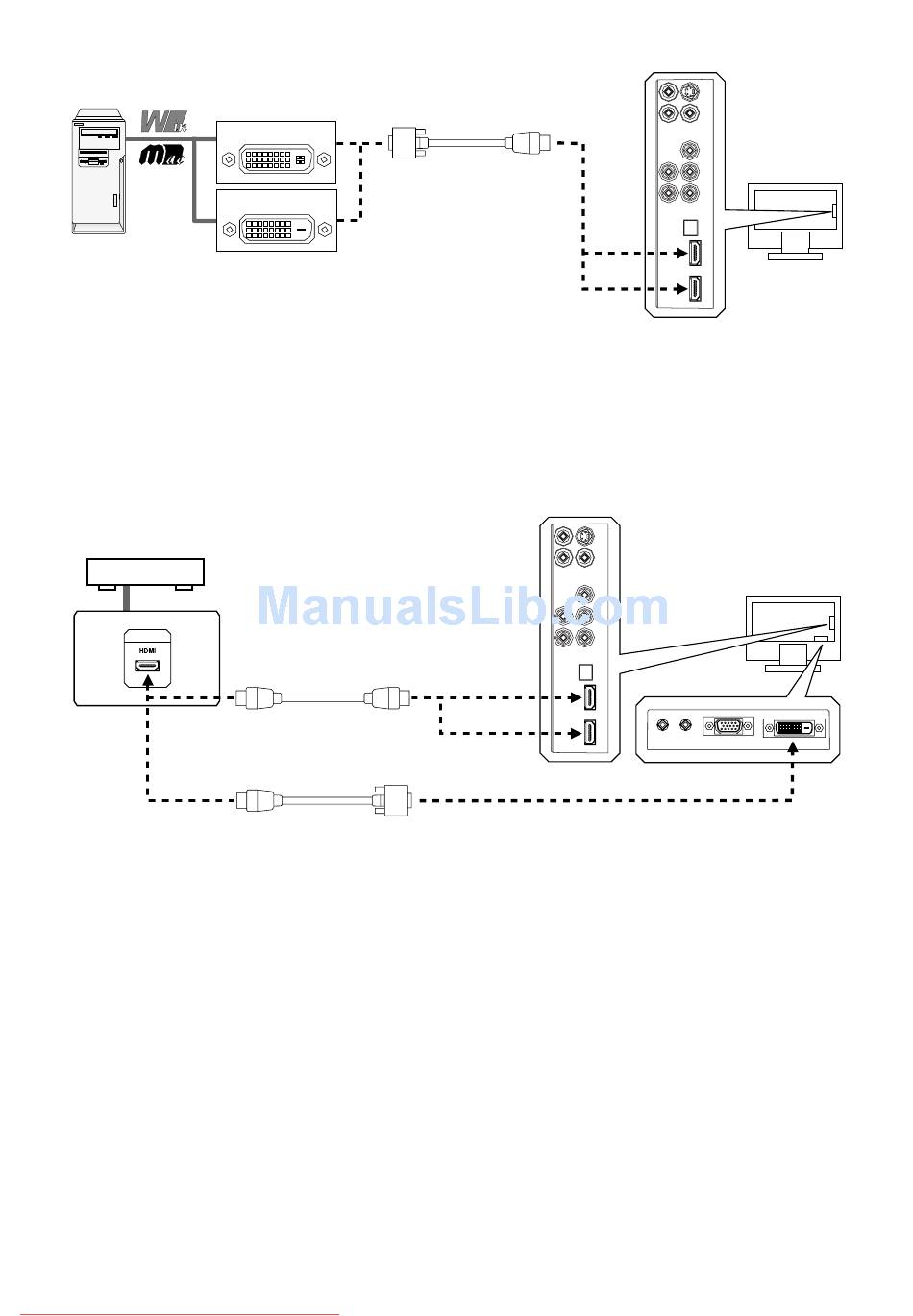

To Connect a Computer to the HDMI Input
Computer
When connecting a computer to the HDMI Input, a maximum of four inputs are available though DVI-D input and Mini D-Sub
input.
NOTE: When HDMI input is used for computer digital output, 1920 x 1200 resolution output may not be available.
Use DVI-D input instead.
2. Connecting an imaging device.
NOTE: For details of connecting imaging devices, see the documentation supplied with your devices.
To Connect an HDMI-Ready Imaging Device
Game machine, DVD player, etc.
Output
To connect an HDMI-ready imaging device to the DVI-D input, set OSD Function's DVI EDID SELECT to AV (Page 28).
NOTE: When connecting an HDMI-ready imaging device to DVI-D input, audio included in the HDMI signals is not output.
Downloaded from ManualMonitor.com Manuals
Commercially available
DVI-D – HDMI cable
DVI-I
DVI-D
HDMI cable
Commercially available HDMI – DVI-D cable
To HDMI Input 2
or
HDMI Input 1
To HDMI Input 2
Or
To HDMI Input 1
English-12
Monitor (rear)
Monitor (rear)
To DVI-D Input
