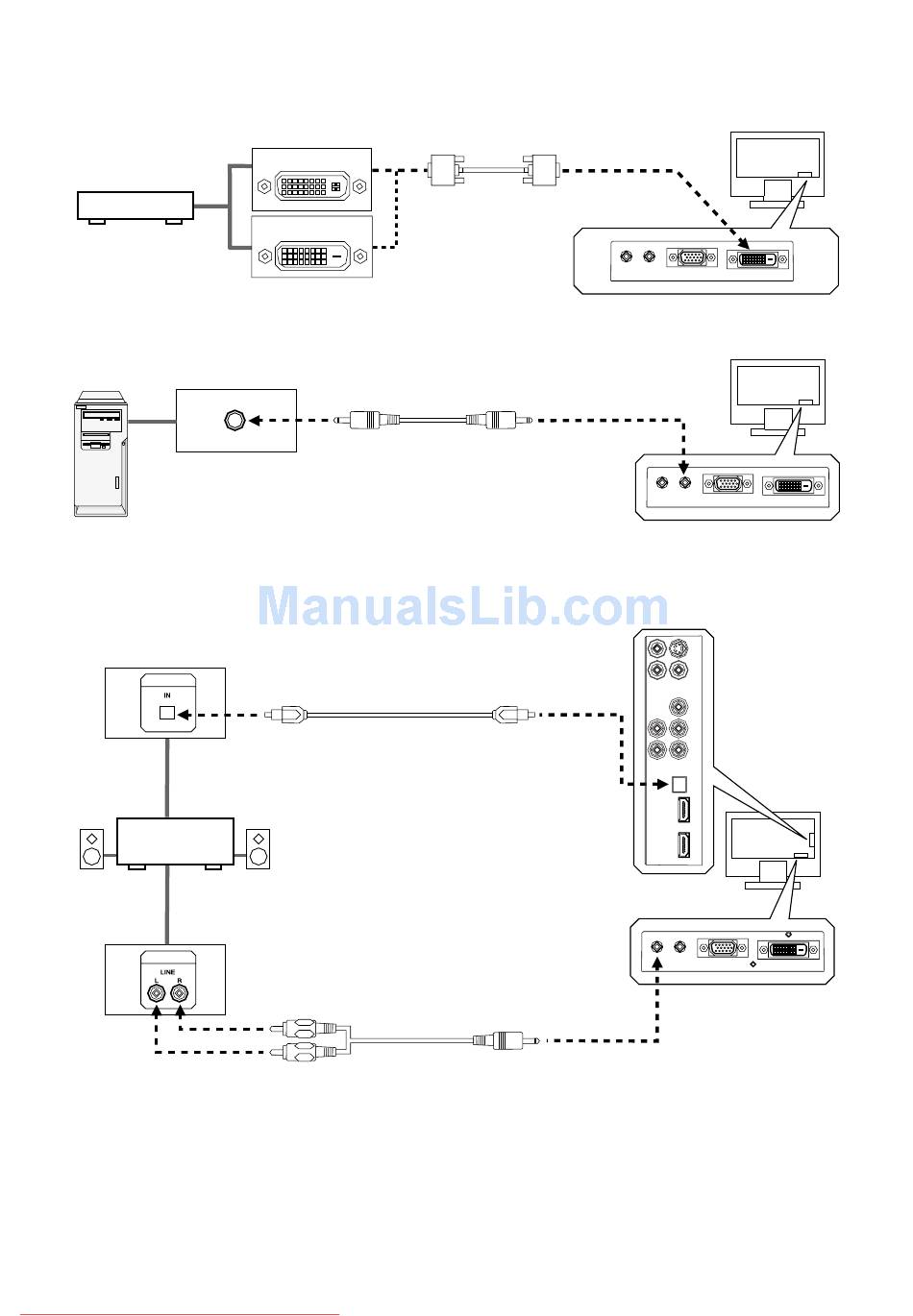

To Connect an Imaging Device with DVI Output
The monitor can be used with an imaging device with DVI output (e.g. DVD player).
• To connect a DVD player with DVI output, set OSD Function's [DVI EDID SELECT] to [AV] (Page 28).
DVD player with
DVI output etc.
3. Connect an audio cable.
Computer
NOTE: • For details of connecting computers, see the documentation supplied with your computer.
• Use a low-impedance audio cable with a stereo mini jack plug.
Using a high-impedance audio cable may result in the audio not sounding or very low volume.
To Connect Audio Amplifiers
Input
To connect to
an optical digital
audit input
Audio amplifier
Speaker
To connect to
line input
Input
NOTE: • For details of connecting an audio amplifier, see the documentation supplied with your amplifier.
• Use a low-impedance audio cable with stereo mini jack plug.
Using a high-impedance audio cable may result in the audio not sounding or very low volume.
• The optical digital audio output with this monitor is not capable for 5.1 channel.
Downloaded from ManualMonitor.com Manuals
DVI-I
DVI-D
Audio cable
Audio output
(green)
Commercially available optical digital cable
Speaker
Commercially available 2 pin –
Stereo mini plug audio cable
DVI-D – DVI-D cable
To audio input (pale blue)
To optical
digital audio
output
To analog audio
output (green)
English-14
Monitor (rear)
To DVI-D input
Monitor (rear)
Monitor (rear)
