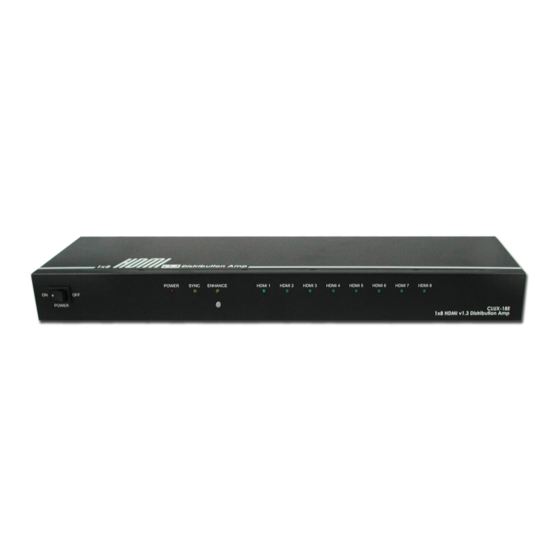

- Page 1 CLUX-18E 1x8 HDMI 1.3 Splitter Operation Manual CLUX-18E...
- Page 2 TABLE OF CONTENTS 1. Introduction................2. Features..................3. Operation Controls and Functions.......... 3.1 Front Panel................3.2 Rear Panel................4. Connection and Installation............. 5. Specifications................
- Page 3 1. Introduction The HDMI v1.3 Distribution Amplifier Series is the most advanced solution to HDMI signal distribution. Each product in this series is compatible to HDMI v1.3 specifications, a cutting-age technology which defines the support to transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps).
-
Page 4: Operation Controls And Functions
HDMI 6 HDMI 7 HDMI 8 POWER CLUX-18E 1x8 HDMI v1.3 Distribution Amp ① Power Switch: Press the switch to power on the unit. ② Power LED Indicator: The LED will illuminate when the power is connected. ③ Sync LED: The LED will illuminate when the HDMI source signal is connected to the input port. -
Page 5: Connection And Installation
4. Connection and Installation LCD TV LCD TV LCD TV LCD TV LCD TV LCD TV LCD TV LCD TV 5. Specifications Frequency bandwidth 2.25Gbps (single link) Input port 1x HDMI female port (Type A connector) Output ports 8x HDMI female ports (signal link) Power Supply 5VDC/4.5A (US/EU standards, CE/FCC/UL certified) Dimensions (mm) - Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20080202 MPM-CLUX18E...
