- Page 1 CLUX-4EN 1 by 4 HDMI Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 6: Introduction
1. INTRODUCTION This 1 by 4 HDMI Splitter can split and distribute a single HDMI input into 4 identical HDMI outputs without any loss of quality. It supports a wide range of HDMI features including high definition video and lossless audio, 3D, and 12-bit Deep Color. -
Page 7: Features
5. FEATURES • Supports HDTV resolutions up to 1080p60 and PC resolutions up to WUXGA (1920×1200 Reduced Blanking) • HDMI and HDCP compliant • Supports up to 12-bit Deep color • Supports up to 7.1 channels of high definition audio: LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, and DTS-HD Master Audio transmission (32~192 kHz Fs sample rate) •... -
Page 8: Operation Controls And Functions

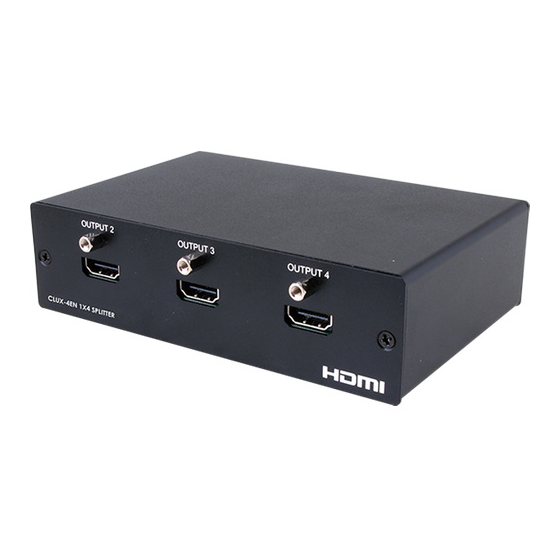

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OUTPUT 2 OUTPUT 3 OUTPUT 4 CLUX-4EN 1X4 SPLITTER OUTPUT 2/3/4: Connect each of the HDMI outputs to HDMI displays for simultaneous HDMI distribution. 6.2 Rear Panel OUTPUT 1 INPUT SYNC POWER... -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray or PS3 Player AV Receiver HDMI Input Power Supply OUTPUT 1 INPUT SYNC POWER DC 5V SERVICE EDID OUTPUT 2 OUTPUT 3 OUTPUT 4 CLUX-4EN 1X4 SPLITTER HDMI Outputs Projector Projector HDTV HDTV... -
Page 10: Specifications
8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75 Gbps Input Ports 1×HDMI (Female), 1×USB (Service only) Output Ports 4×HDMI (Female) Output Resolution 480i ~ 1080p@24/50/60 up to 12-Bit Color Depth, and VGA ~ WUXGA(RB) HDMI Input Cable 15m (1080p 8-bit)/10m (1080p 12-bit) HDMI Output Cable 15m (1080p 8-bit)/10m (1080p 12-bit) Power Supply... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM EDID Extended display identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Video Graphics Array WUXGA Widescreen Ultra Extended Graphics Array... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
