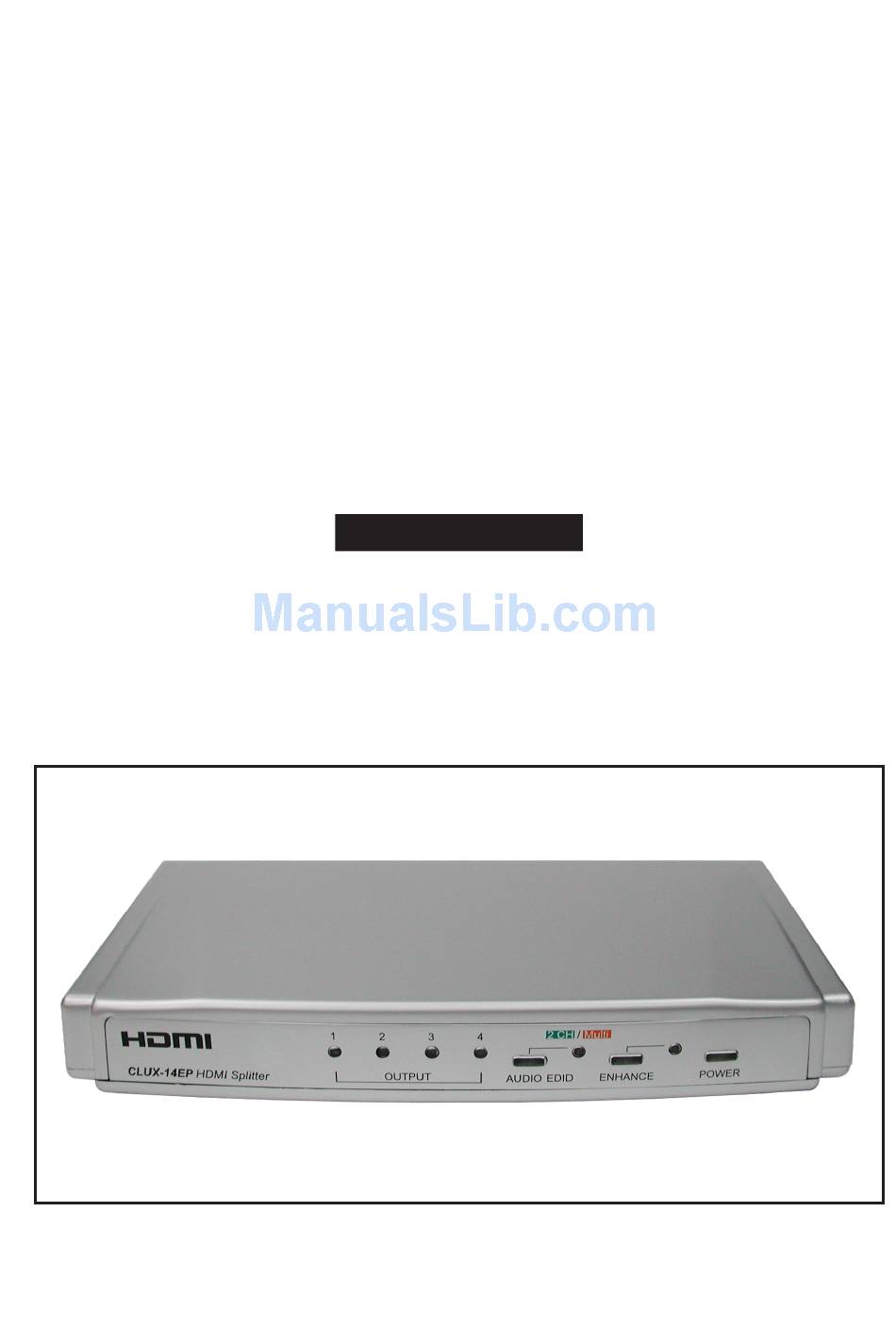

- Page 1 CLUX-14EP 1x4 HDMI v1.3 Splitter Operation Manual CLUX-14EP...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................2. Features..................3. Operation Controls and Functions.......... 3.1 Front Panel................3.2 Rear Panel................4. Connection and Installation............. 5. Specifications................6. Cypress HDMI v1.3 Series............ -
Page 3: Introduction
1. Introduction The HDMI Splitter is the most advanced solution to HDMI signal distribution. Each product in this series is compliant with HDMI v1.3 and HDCP v 1.1 specifications. It allows one HDMI source to connect up to four HDMI displays simultaneously. 2. -
Page 4: Operation Controls And Functions
3. Operation Controls and Functions 3.1 Front Panel 2 CH Multi OUTPUT CLUX-14EP HDMI Splitter AUDIO EDID ENHANCE POWER HDMI output Indicator: The LED will illuminate when the output sources are been connected. Audio EDID Switch: This system build-in standards audio EDID for 2 channels and multi channels support. -
Page 5: Rear Panel
3.2 Rear Panel INPUT OUT 1 OUT 2 OUT 3 OUT 4 DC 5V HDMI Input: Connect input port to the HDMI or DVI output of your source equipment such as DVD player or set-top-box. HDMI Outputs 1 to 4: Connect each of the output ports to the HDMI display. -
Page 6: Connection And Installation
4. Connection and Installation DVD 1 LCD TV LCD TV LCD TV LCD TV 5. Specifications Input port 1x HDMI female port (Type A connector) Output port 4 x HDMI female ports (signal link) Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 206(W) x 111(D) x 32(H) Weight(g) -
Page 8: Cypress Hdmi V1.3 Series
6. Cypress HDMI v1.3 Series: Product Description CLUX-11S 1x1 HDMI V1.3 Repeater CLUX-12S 1x2 HDMI V1.3 Splitter CLUX-14S 1x4 HDMI V1.3 Splitter CLUX-18S 1x8 HDMI V1.3 Splitter CLUX-21SY 2x1 HDMI V1.3 Switcher CLUX-31S 3x1 HDMI V1.3 Switcher CLUX-31SY 3x1 HDMI V1.3 Switcher CLUX-41SY 4x1 HDMI V1.3 Switcher CLUX-41AT...
