- Page 1 CLUX-4M 1x4 HDMI 1.3 with Multi-channels Splitter Operation Manual CLUX-4M...
- Page 2 Revision History Version No Date Summary of Change 20081110 Preliminary Release 20090430 EDID Rephrase Precautions Failure to follow the precautions described below may cause damage to multi channel splitter and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find ...
-
Page 3: Specifications
Table of Contents Introduction…………………………………………………..………. Applications…………………………..……………………....…. Package Contents……………..…………………......… System Requirements………………..………….…………..……. Features……………………………………………..……..……… Operation Controls and Functions……………………………………. Front Panel ................Rear Panel …………………………………………..….….… Connection and Installation……………………………..……..… Specifications……………………………………………...……….. -
Page 4: System Requirements
1. Introduction This is a 4 to 2 HDMI v1.3 switcher/selector which allows 4 HDMI ports to be switched to two independent display output. This is compatible with HDMI v1.3 specifications, a cutting-adge technology which defines the support to transfer Deep Color (12 bits/color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz. - Page 5 5. Features HDMI 1.3, HDCP1.1 and DVI1.0 compliant. Deep color video up to 12bit, 1080p@(24/60)Hz. One HDMI source that can connect up to four HDMI displays simultaneously. HDCP keysets allows each output to work independently when connecting to a HDMI display.
-
Page 6: Operation Controls And Functions

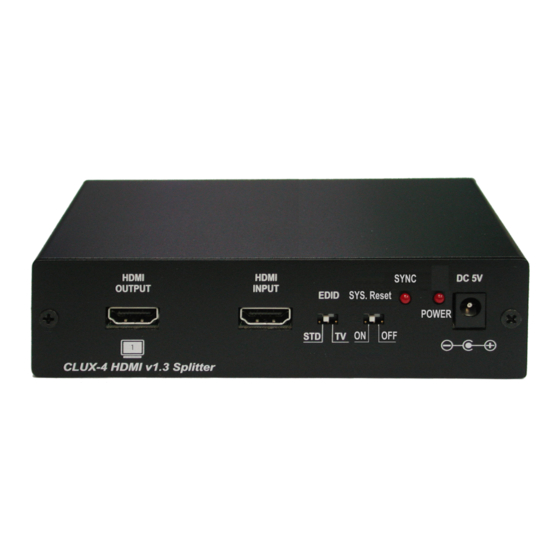

OUTPUT INPUT EDID SYS. Reset POWER TV ON CLUX-4M HDMI V1.3 Splitter ① HDMI Outputs 1: Connect each of the output ports to the HDMI display. When more than one output connected, the HDMI outputs play identical video signal simultaneously. -
Page 7: Connection And Installation
6.1 Rear Panel HDMI HDMI HDMI OUTPUT OUTPUT OUTPUT ① HDMI Outputs 2/3/4: Connect each of the output ports to the HDMI display. When more than one output connected, the HDMI outputs play identical video signal simultaneously. 7. Connection and Installation HDMI Cable DVD or Set-Top-Box HDTV... - Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20081120 MPM-CLUX4M...
