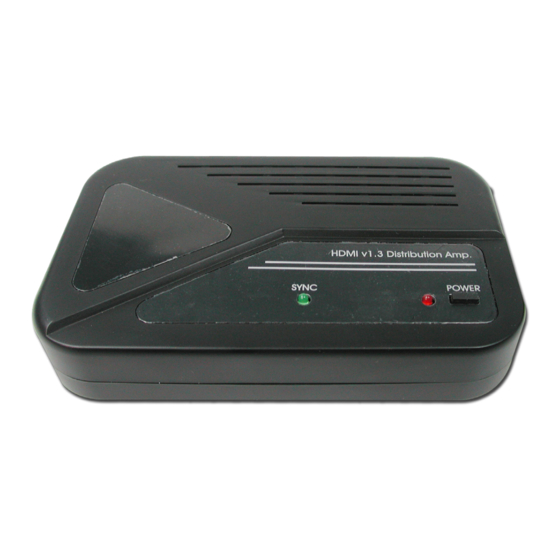

- Page 1 CLUX-12E 1x2 HDMI 1.3 Splitter Operation Manual CLUX-12E...
- Page 2 Table Of Contents 1. Introduction................2. Features..................3. Operation Controls and Functions.......... 3.1 Top Panel................3.2 Rear Panel................4. Connection and Installation............. 5. Specifications................6. Cypress HDMI v1.3 Series............
- Page 3 1. Introduction The HDMI v1.3 Distribution Amplifier Series is the most advanced solution to HDMI signal distribution. Each product in this series is compatible with HDMI v1.3 specifications, a cutting-edge technology which defines the supports to transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps).
- Page 4 3. Operation Controls and Functions Top Panel: 1x2 HDMI v1.3 Distribution Amp. POWER SYNC Sync LED: The LED will illuminate when the HDMI source signal is connected to the input. Power LED indicator: The power LED will illuminate when power on. 3.2 Rear Panel: DC 5V INPUT...
- Page 5 4. Connection and Installation LCD TV LCD TV 5. Specifications Frequency Bandwidth 2.25Gbps (single link) Input Port 1x HDMI female port (Type A connector) Output Ports 2x HDMI female ports (signal link) Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 145(W) x 90(D) x 32(H) Weight(g) Chassis Material...
- Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20080204 MPM-CLUX12E...
