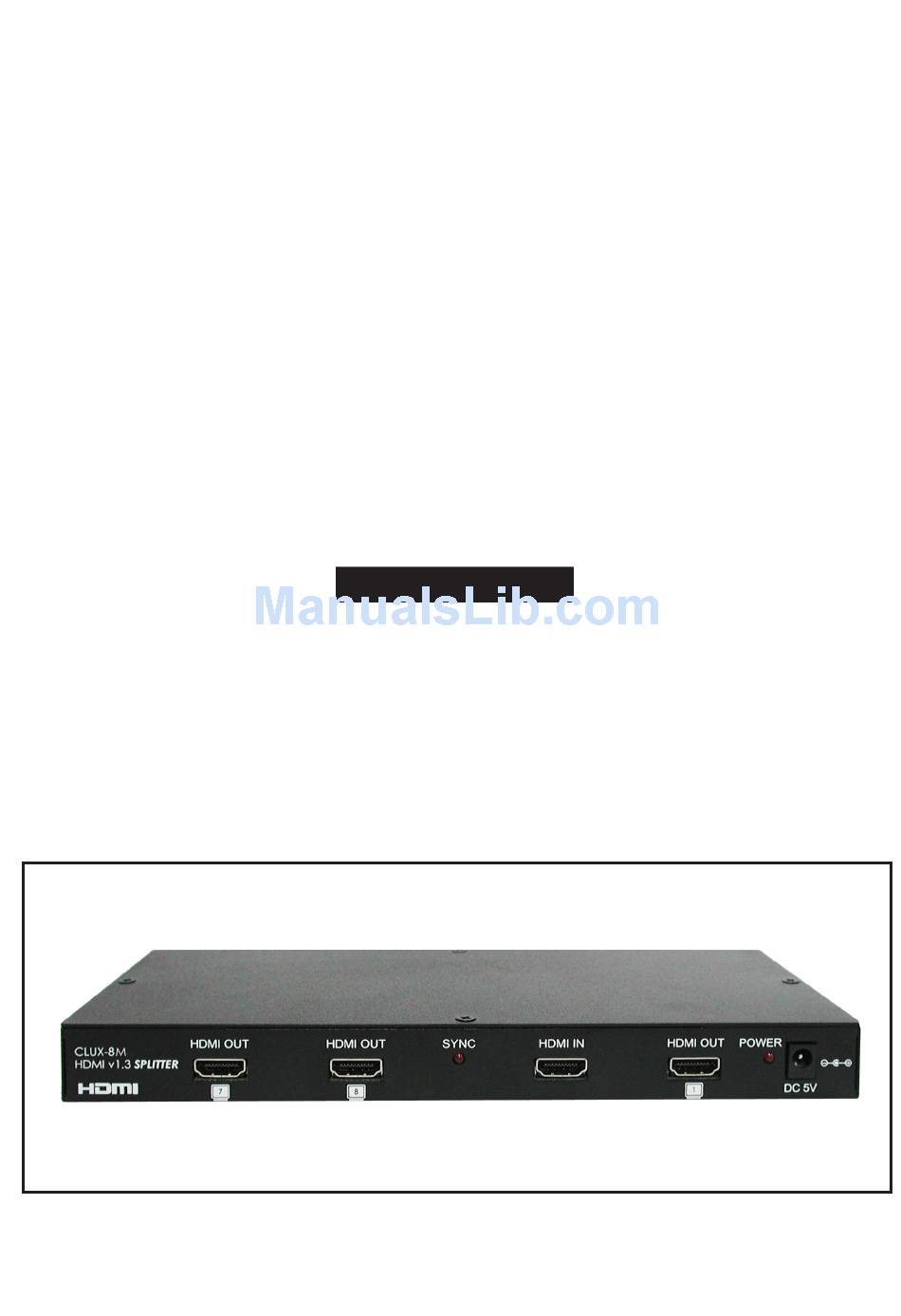

- Page 1 CLUX-8M 1x8 HDMI 1.3 with Multi-channel Splitter Operation Manual CLUX-8M...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................2. Features..................3. Operation Controls and Functions.......... 3.1 Front Panel................3.2 Rear Panel................4. Connection and Installation............. 5. Specifications................ -
Page 3: Features
1. Introduction The HDMI v1.3 Distribution Amplifier Series is the most advanced solution to HDMI signal distribution. Each product in this series is compatible to HDMI v1.3 specifications, a cutting edge technology which defines the support to transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps). -
Page 4: Operation Controls And Functions

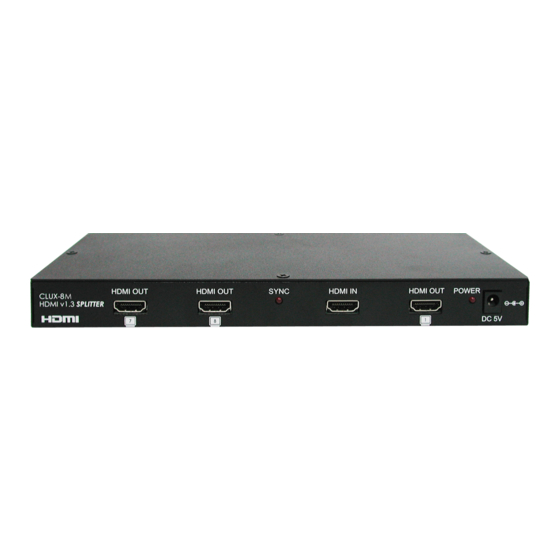

HDMI OUT SYNC HDMI IN HDMI OUT POWER CLUX-8M HDMI v1.3 SPLITTER DC 5V HDMI Outputs 1/7/8: Connect each of the output ports to the HDMI display. When more than one output connected, the HDMI outputs play identical video signal simultaneously. -
Page 5: Rear Panel
3.2 Rear Panel HDMI OUT HDMI OUT HDMI OUT HDMI OUT HDMI OUT EDID SYS.Reset EDID Control switch: Default factory setting is TV, leave as is if the display is properly. Switch to STD to use build-in EDID if the display has problems. When the EDID control switch in TV selection, the unit will detect the first HDMI output source’s EDID and record in the unit. -
Page 6: Connection And Installation
4. Connection and Installation DVD or Set-Top-Box HDMI Cable HDMI Cable HDTV HDMI display LCD TV 5. Specifications 2.25Gbps (single link) Frequency bandwidth 1x HDMI female port (Type A connector) Input port 8x HDMI female ports (signal link) Output ports 5VDC/5A (US/EU standards, CE/FCC/UL certified) Power Supply Dimensions (mm) - Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20080801 MPM-CLUX8M...
