- Page 1 1x8 HDMI Splitter Operation Manual CLUX-18S...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................2. Features..................3. Operation Controls and Functions.......... 3.1 Front Panel................3.2 Rear Panel................4. Connection and Installation............. 5. Specifications................6. Cypress HDMI v1.3 Series............ -
Page 3: Introduction
1. Introduction The HDMI Distribution Amplifier Series is the most advanced solution to HDMI signal distribution. Each product in this series is compatible to HDMI specifications, a cutting edge technology which defines the support to transfer Deep Color (10-bit and12-bit ) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps). -
Page 4: Operation Controls And Functions

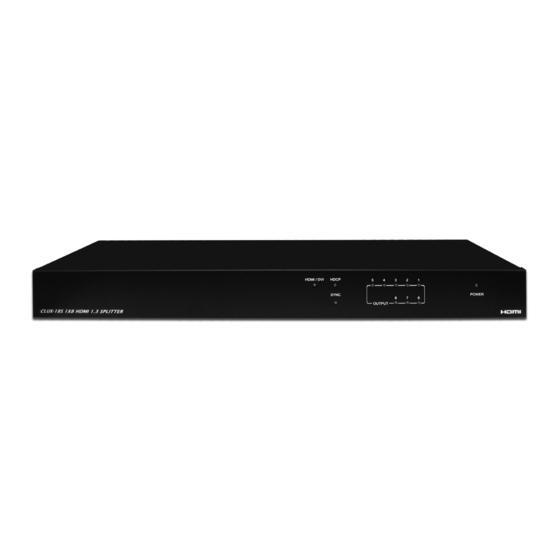

SYNC POWER OUTPUT CLUX-18S 1X8 HDMI 1.3 SPLITTER 1 HDMI/DVI Indicator: The LED will illuminate when the selected HDMI input source is originally from an HDMI output, the LED will not illuminate when the selected HDMI input source is originally from a DVI output. -
Page 5: Rear Panel
3.2 Rear Panel HDMI IN HDMI OUT DC 5V EDID 1 EDID Control Jumper: Default factory setting is TV, leave as is if the display is properly. Switch to STD to use build-in EDID if the display has problems. When the EDID control jumper in TV selection, the unit will detect the first HDMI output source’s EDID and record in the unit. -
Page 6: Connection And Installation
4. Connection and Installation HDMI Cable HDMI Cable DVD or Set-Top-Box HDTV HDMI display LCD TV 5. Specifications Frequency Bandwidth 2.25Gbps (Single Link) Input Port 1x HDMI female port (Type A) Output Port 8 x HDMI female ports (Type A) Power Supply 5VDC/5A (US/EU standards, CE/FCC/UL certified) Dimensions (mm) -
Page 8: Cypress Hdmi V1.3 Series
6. Cypress HDMI v1.3 Series: Product Description CLUX-11S 1x1 HDMI V1.3 Repeater CLUX-12S 1x2 HDMI V1.3 Splitter CLUX-14S 1x4 HDMI V1.3 Splitter CLUX-18S 1x8 HDMI V1.3 Splitter CLUX-21SY 2x1 HDMI V1.3 Switcher CLUX-31S 3x1 HDMI V1.3 Switcher CLUX-31SY 3x1 HDMI V1.3 Switcher CLUX-41SY 4x1 HDMI V1.3 Switcher...
