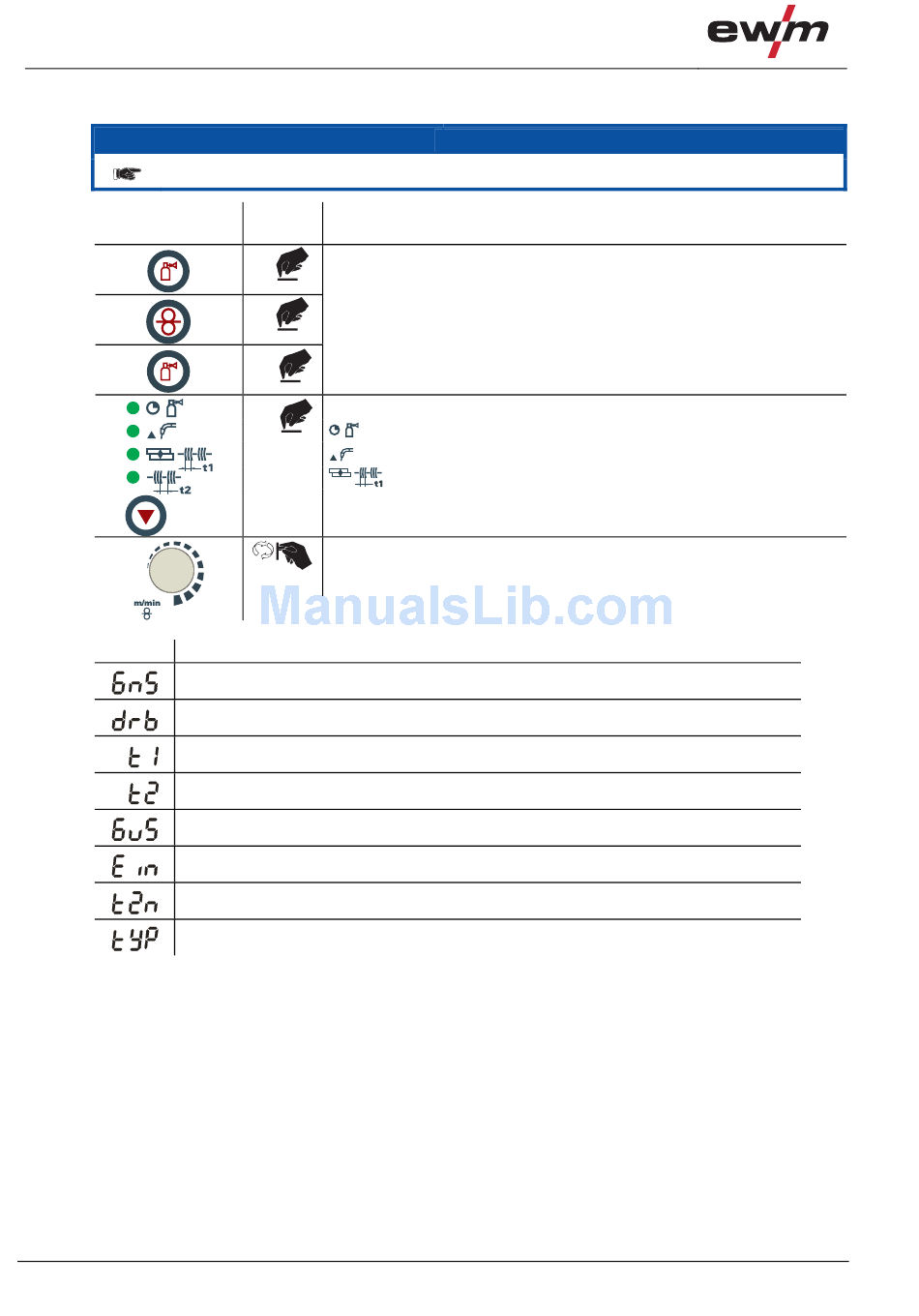

Setting The Expert Parameters; Explanation Of Symbols - EWM Wega 401 M1.02 FKG Operating Instructions Manual

Design and function
Select welding task

5.10.3.5 Setting the expert parameters

The parameter values set are preset in the JOB and can be modified if necessary.
Operating
element

5.10.3.6 Explanation of symbols

Symbol Meaning
"GnS" - Gas post-flows
"drb" - Wire burn-back
"t1" - Spot time
"t2" - Interval time
"GvS" - Gas pre-flows
"On" - Wire creep
"tZn" - Ignition time
"tyP" - Machine type (type table, see chapter "Rectifying faults")
48
Action Result
Select expert parameters.
1 x
The key combination must be pressed within 3 seconds.
1 x
2 x
Select expert parameters:
n x
The selected parameter is shown on the display.
Set the parameter chosen.
NOTE
Gas pre-flow time "GvS" (0 s to 10 s)
Wire creep speed "On" 0.5 – 24 m/min
Ignition time "tZn" (0 ms to 500 ms)
099-005224-EW501
