Welding parameter setting in the operation sequence

Welding parameters are set by briefly pressing the control knob (selecting the function sequence) and
then turning the knob (navigation to the desired parameter). Press again to apply the selected parameter
as the setting (corresponding parameter value and signal light flash). Turn the button to set the parameter
value.
During welding parameter setting, the parameter value to be set flashes in the left hand display. A para-
meter abbreviation or a deviation in the specified parameter value upwards or downwards is shown on
the right-hand display:

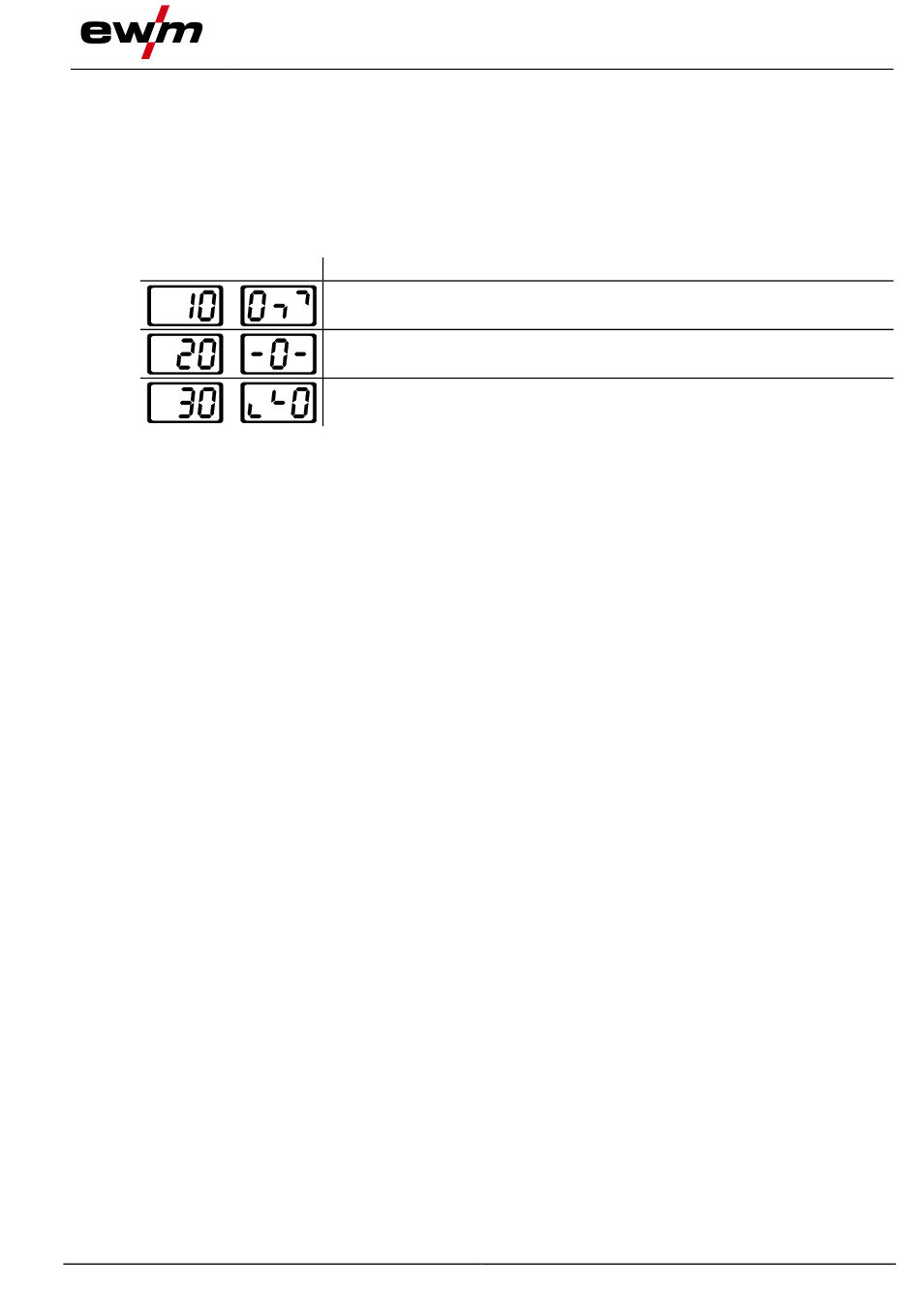

Display
4.3.4

Setting advanced welding parameters (Expert menu)

The Expert menu contains functions and parameters which cannot be set directly in the machine control
or which do not need to be et on a regular basis. The number and display of these parameters depends
on the previously selected welding procedure or the functions.
To select them hold the control button for more than 2 sec. Select the required parameter/menu item by
turning (navigate) and pressing (confirm) the control button.
You can also or alternatively use the push-buttons to the left and right of the control button to navigate.
4.3.5

Changing basic settings (machine configuration menu)

The basic welding system functions can be adjusted in the machine configuration menu. Only experi-
enced users should change the settings > see 5.6 chapter.
099-00T404-EW501
02.07.2020
Machine control – Operating elements
Meaning
Increase the parameter value
To return to the factory settings.
Factory setting (example value = 20)
Parameter is set to optimum value
Decrease the parameter value
To return to the factory settings.
Operating the machine control
13
