Item
Symbol Description
1
2
3
4
5
•
Extend and lay out the torch hose package.
•
Unfasten pressure units and fold out (clamping units and pressure rollers will automatically flip
upwards).
•
Unwind welding wire carefully from the wire spool and insert through the wire inlet nipple over the drive
roller grooves and the guide pipe into the capillary tube and Teflon core using guide pipe.
•
Press the clamping element with the pressure roller back downwards and fold the wire units back up
again (wire electrode should be in the groove on the drive roller).
•
Set the contact pressure with the adjusting nuts of the pressure unit.
Press the wire inching button until the wire electrode projects out of the welding torch.
•
The inching speed is infinitely adjustable by simultaneously pressing the wire inching
button and turning the wire speed rotary dial. The display shows the selected inching
speed.
099-005224-EW501
08.11.2011
5
0
Pressure units
Clamping units
Wire feed nipple
Guide tube
Capillary tube or plastic core with support tube, depending on the torch
equipment
Design and function
1
2
4

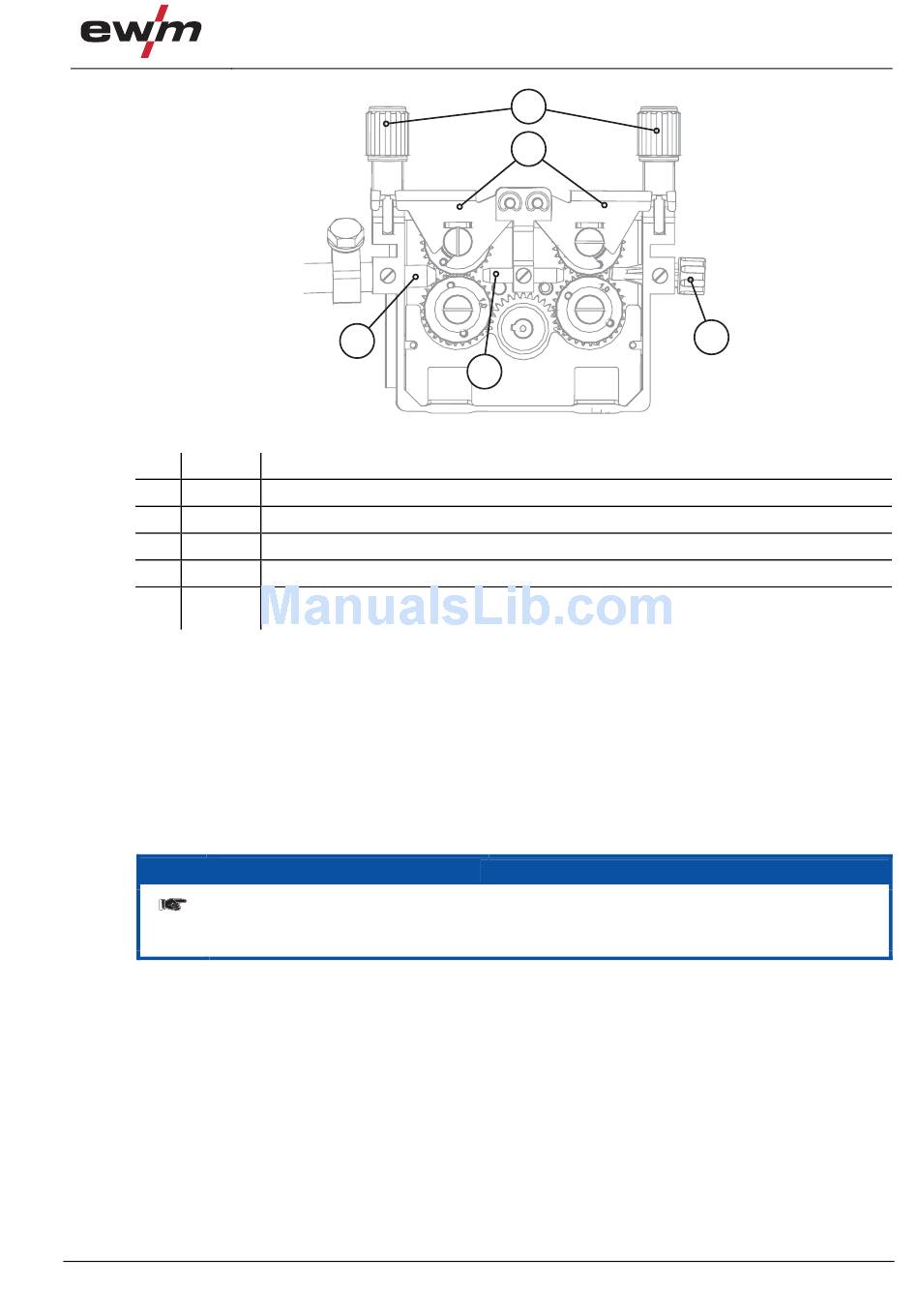

Figure 5-8
NOTE
Inserting the wire electrode
3
39
