EWM Wega 401 M1.02 FKG Operating Instructions Manual page 17

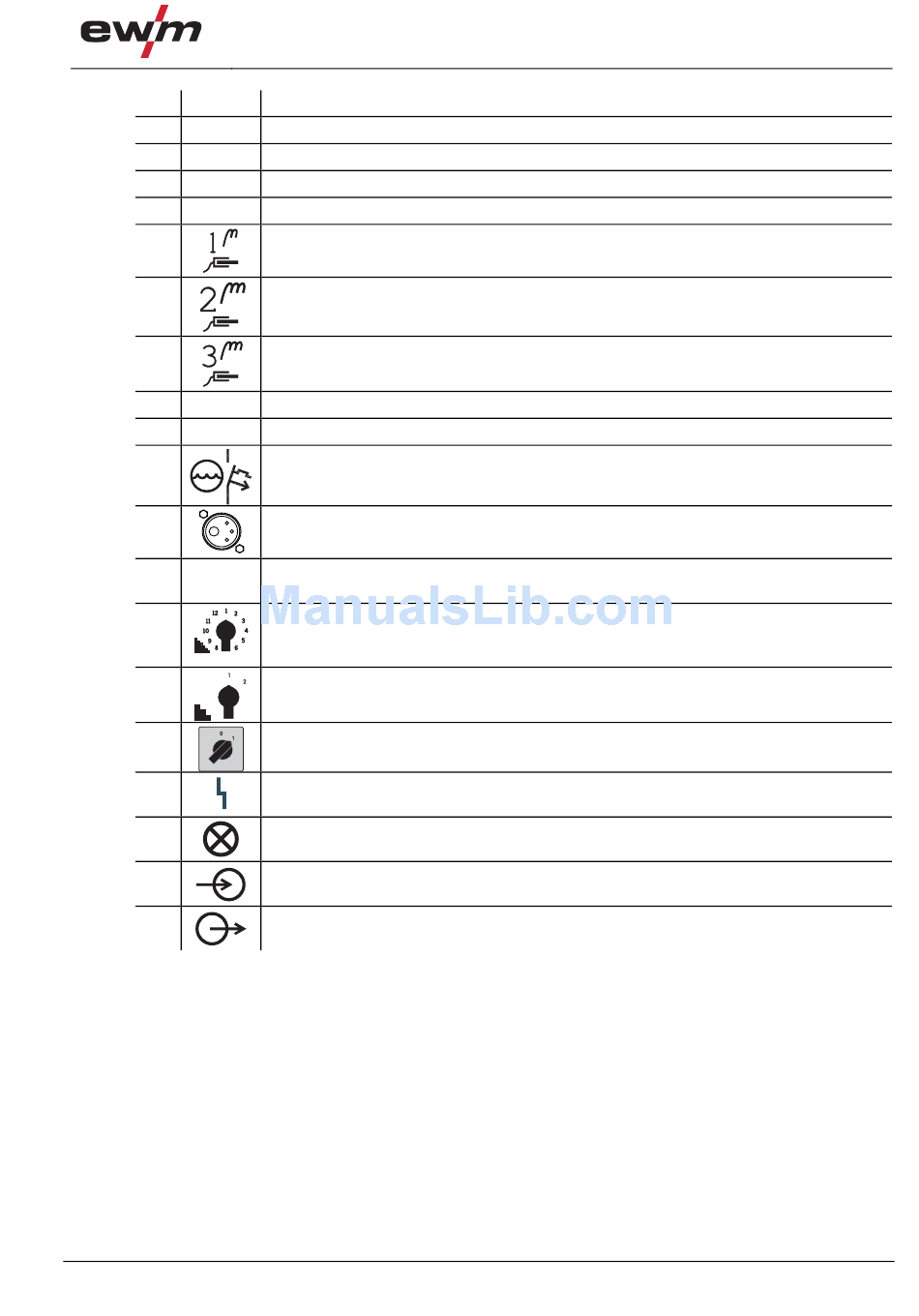

Item Symbol Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
099-005224-EW501
08.11.2011
Machine description – quick overview
0
Lifting lug
Carrying handle
Cooling air inlet
Wheels, guide castors
Connection socket, workpiece lead
"Hard" choke tapping
Connection socket, workpiece lead
"Medium" choke tapping
Connection socket, workpiece lead
Choke tapping "soft"
Coolant tank
Coolant tank cap
Automatic cut-out of coolant pump key button
press to reset a triggered fuse
Central connection for welding torch (Euro)
Integrated welding current, shielding gas and torch trigger
Machine control
See Machine control – operating elements chapter
Welding voltage step switch, final setting
To finally adjust the welding voltage (select the option to roughly preset the welding
voltage first)
Welding voltage step switch, presetting
To roughly preset the welding voltage
Main switch, machine on/off
Collective interference signal light
For error messages, see the "Rectifying faults" chapter
Ready for operation signal light
Signal light on when the machine is switched on and ready for operation
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply
Front view
