ROBINHOOD RHCP9G Installation And Operating Insctructions

Wall canopy glass 90cm platto
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Description:
Model Numbers:

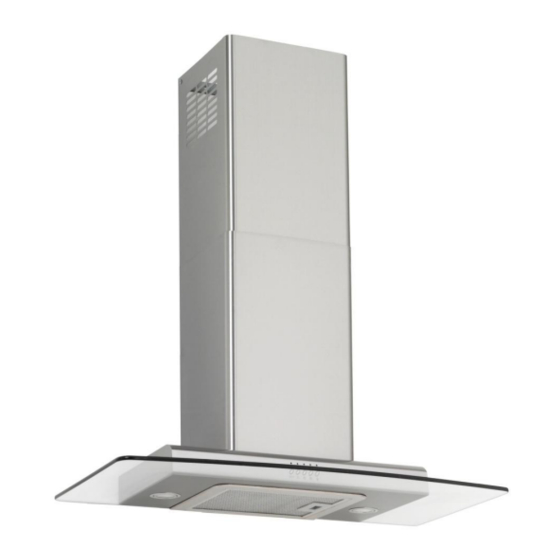

ROBINHOOD WALL CANOPY GLASS 90CM PLATTO
RHCP9G
Product may vary slightly from the picture
Issue G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RHCP9G and is the answer not in the manual?

Questions and answers

Related Manuals for ROBINHOOD RHCP9G

Summary of Contents for ROBINHOOD RHCP9G

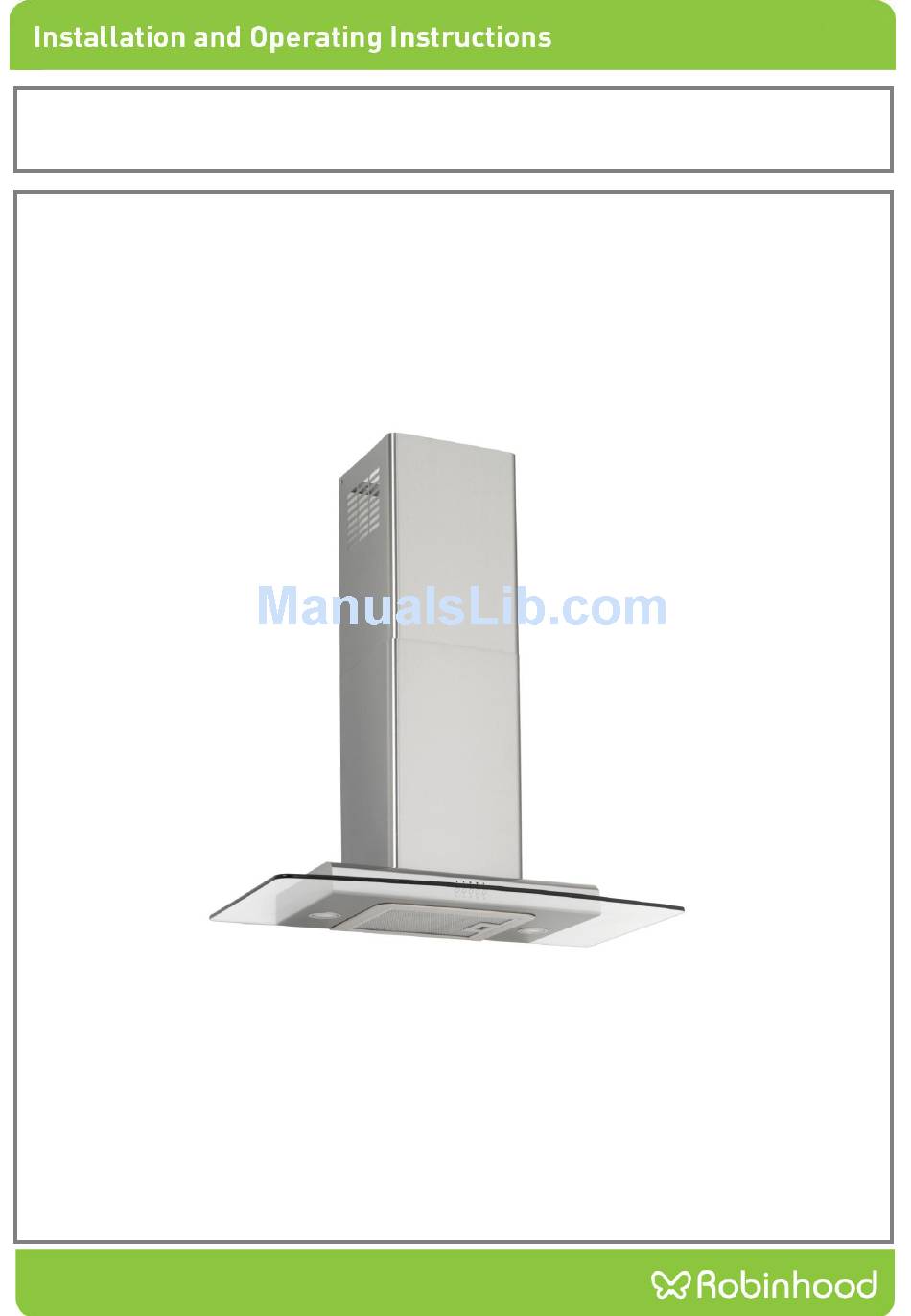

  • Page 1 Issue G Description: ROBINHOOD WALL CANOPY GLASS 90CM PLATTO Model Numbers: RHCP9G Product may vary slightly from the picture...

  • Page 2: Pre-Installation

    Pre-installation Thank you for purchasing a quality Robinhood rangehood. Robinhood has a high standard of quality control and every rangehood is tested and approved before it leaves the factory. Important: Please read the entire instructions before installing the rangehood, always switch power off prior to installation.
  • Page 3 Pre-installation •The canopy hood is designed for 2400mm ceilings. •The chimney is telescopic and is designed for hood installations between 650 to 750mm above the cooking surface. •Ascertain the desired installation height of the canopy hood. •Any installation above 750mm will compromise the extraction performance. •The air outlet from the motor requires 150mm round ducting which requires 170mm diameter hole in the ceiling.

  • Page 4: Contents Of Packaging

    Extra lengths and/or bends may be required, depending on the length required and whether there is any structural material in the way, e.g. rafters. Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure. For NZ phone 0800 760 667 or www.robinhood.co.nz. For AUS phone 1800 648 556 or www.robinhood.com.au.

  • Page 5: Installation

    Installation Control Panel Timer switch Canopy hood will remain on a low, mid or high speed for 15 minutes to clear away all residual cooking odours before switching off automatically Wall / ceiling preparation Recirculation For recirculation, do not cut 170mm hole and purchase a charcoal filter.

  • Page 6: Cleaning And Maintenance

    Installation 1. Pre drill pilot hole 3mm diameter at dimensions C and B. B=305mm and C=220mm. 2. Loosely fix the mounting screw and 2 x washer in position, check with a spirit level across the washers to ensure they are level. 3.

  • Page 7: Important Safety Information

    Product approvals and ratings Product approval number Q051031 Product rating 200W, 230-240 Volt,50 hertz Electrical approval AS/NZS 60335.2.31:2004 EMC AS/NZS CISPR14:2001 Performance tested IEC61591 Important safety information The canopy hood is not intended for use by persons (including children) with reduced physical, sensory or metal capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 8 The product was not used, cleaned or cared for in accordance with our instructions. The product was used outdoors. All Robinhood rangehoods are suitable for indoor use only, and not suitable over BBQs or charcoal cookers designed for outdoor use.
  • Page 9 The product was used outdoors. 2. All Robinhood rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
