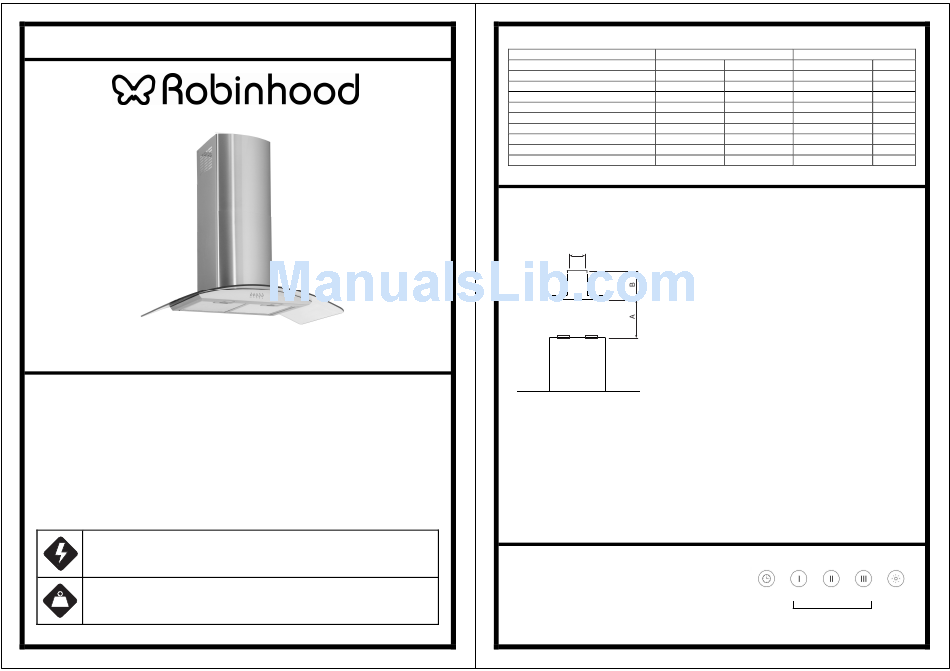

ROBINHOOD RHCV9G VETRO WALL Installation Instructions

INSTALLATION INSTRUCTIONS CANOPY HOOD
Model No: RHCV9G – VETRO WALL

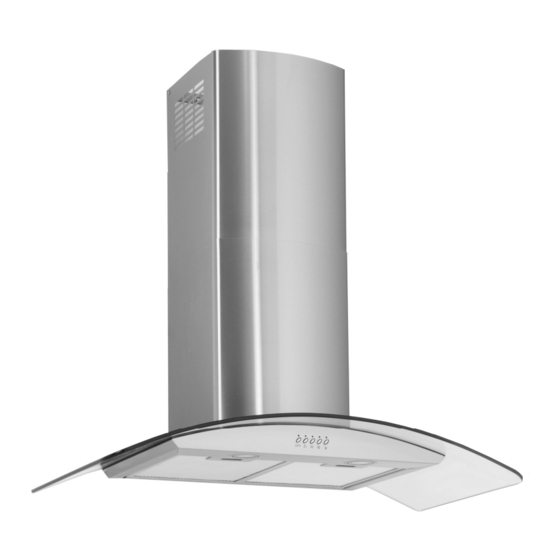

(PLEASE NOTE PRODUCT MAY VARY SLIGHTLY FROM THE PICTURE)
PRE-INSTALLATION
Thank you for purchasing a quality, stainless steel canopy hood.
We have a high standard of quality control and each canopy hood is tested and approved before it
leaves the factory.
IMPORTANT
Please read the entire instructions before installing the canopy hood
•
Always switch the power off prior to installation, servicing or cleaning the canopy hood.
•
Never use the canopy hood without the filters.
•
Stainless steel is very easily damaged during installation if abraded or knocked by tools.
•
Note all ducting must comply with local requirements and building codes.
•
A power outlet should be within 1200mm from the motor assembly and can be either on the
•
wall, behind the chimney or in the ceiling.
All electrical work must be done in accordance with local and/or national electrical
codes as applicable. For safety, this product must be earthed. If you are unfamiliar with
methods of installing electrical wiring, employ the services of a qualified electrician.
Turn off power at service entrance before installing wiring or servicing this product.
The canopy hood is heavy please ensure adequate care when installing the canopy
hood to prevent personal injury.
lbs
The canopy hood must be installed onto a solid wall or solid stud. (Weight = 18 Kg)
114310 Issue D
ECN 07 007
CONTENTS
Contents of packaging Equipment Required
1 x Canopy hood Electric Drill
2 x Chimney pieces with bracket Screwdriver
1 x Installation instructions Duct tape
2 x Filter (Part Number 114311) Jig saw
Installation kit (Part Number 114326) Ladder
2 x 12 x 2' Screw
4 x 15 Dia Washer
2 x Wall Anchor Plastic
2 x 8 x 1.25' Screw
4 x M4 x 8 Pan Head Screw
HEIGHT OF CANOPYHOOD
C
•
•
FILTER SURFACE
•
HOB TOP
•
•
A=650mm(electric cook top)
min
A=650mm(gas cook top) min
B=305mm
C=220mm
CONTROL PANEL
Timer switch: Canopy hood will remain on a low,
mid or high speed for 15 minutes to clear away all
residual cooking odours before switching
automatically .
Optional Accessories
Drill bits Charcoal Filter 2517
Spirit Level Light Bulb 114313
Tape measure Chimney Ext (10') 2194
Knife Chimney Ext (12') 2195
Saw
The canopy hood is designed for 2400mm
ceilings.
The chimney is telescopic and is designed for
hood installations between 650 to 750mm above
the cooking surface.
Ascertain the desired installation height of the
canopy hood.
Any installation above 750mm will compromise
the extraction performance.
The air outlet from the motor requires 150mm
round ducting which requires 170mm diameter
hole in the ceiling.
off
Timer Speed settings Lights
