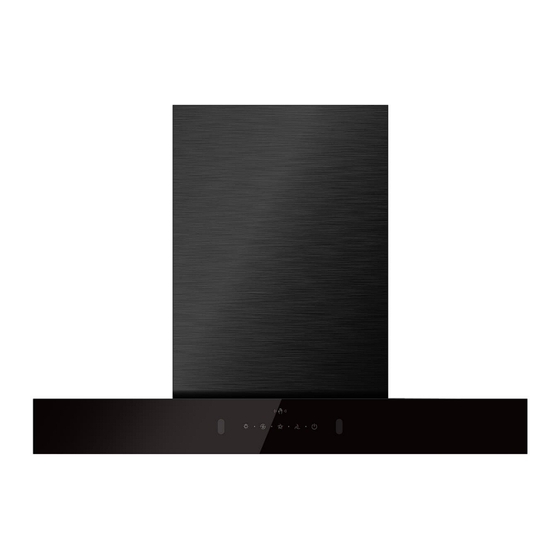

- Page 1 Issue: 1 Description: ROBINHOOD PREMIUM WALL CANOPY RANGEHOOD 90CM WITH GESTURE CONTROL Model: RHWC1600PBW Model pictured: RHWC1600PBW Pure Black Model may vary slightly from image pictured...
-
Page 2: Product Dimensions
Product Dimensions Model Pictured: RHWC1600PBW (Pure Black) -
Page 3: Important Safety Information
Product approvals and ratings Appliance: Product rating RHWC1600PBW: 284W 220-240V ~50Hz LED: 1x4W Important safety information All electrical work must be done by a registered electrician in accordance with local and national electrical codes as applicable. For your safety, this product must be earthed. -
Page 4: Pre-Installation
Pre-installation Thank you for purchasing a quality Robinhood rangehood. Robinhood has a high standard of quality control and every range hood is tested and approved before it leaves the factory. Important: Please read the entire instructions before installing the rangehood. Check appliance for damage or missing parts (if damaged, do not install). -
Page 5: Ducting Options
- through the top of the home (for the roof and eaves) and through the wall of the home. For RHWC1600PBW model Robinhood always recommends the use of the 2M Ø180mm flexi ducting included with the model and the Ø180mm wall duct outlet. - Page 6 Pre-Installation - continued 600 mm – 800 Note: RHWC1600PBW is not suitable for Wall or Soffit Ducting with a 2.4m stud height. Stud heights of 2.55m and above are OK. Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure.
-
Page 7: Installation
Installation Installation • With the rangehood unpackaged, place the outlet spacer on top of the outlet hole, place the Ø180mm outlet on top of that, line up the mounting holes and fix in place using eight of the 15mm screws. •... -
Page 8: Control Panel
Operating instructions Control Panel The control panel for the RHWC1600PBW is combined with gesture and touch controls. Each function is represented by an icon. When the user touches or gesture controls the rangehood, each function will be activated. If the icon is touched/pressed, a “beep” will be heard. -
Page 9: Cleaning And Maintenance
Cleaning and maintenance General Maintenance Switch off the rangehood before cleaning or maintenance. To prevent surface damage never use abrasive or oil based liquid cleaners. To clean the surfaces of the appliance, use mild detergent and warm water. In areas of high humidity and coastal environments cleaning should be carried out frequently. - Page 10 Cleaning and maintenance Fault Cause Solution The LED damaged Lights do not work, but fan LED wiring connection poor Contact Service Department works LED switch damage Motor bearings damage Motor burn out Contact Service Department Lights work, but fan does not work Motor control switch damage Plug contact outlet bad...
- Page 11 The following conditions apply in respect of the warranty given in this certificate: 1. Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: Rangehood, Ovens, Cooktops, Dishwashers - 24 months from date of original purchase for domestic use.
- Page 12 The product was used outdoors. 2. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
