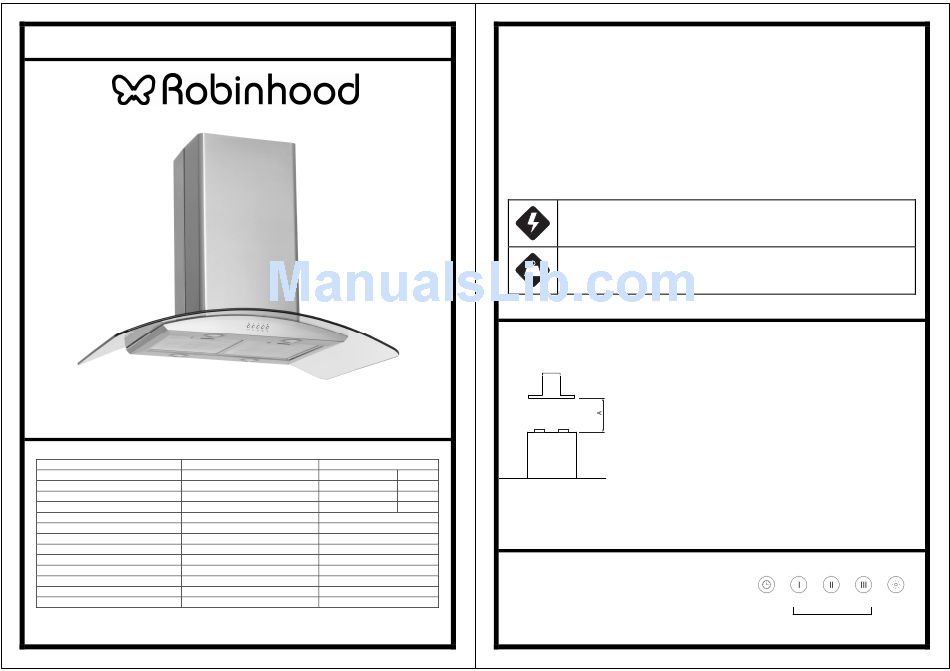

ROBINHOOD RHCVI9G - Vetro Island Installation Instructions

Installation INSTRUCTIONS CANOPY HOOD
Model No: RHCVI9G – Vetro Island
PLEASE NOTE PRODUCT MAY VARY SLIGHTLY FROM THE PICTURE

CONTENTS

Contents of packaging Equipment Required
1 x Canopy hood Electric drill
2 x Chimney pieces Drill bits
2 x Support frames Spirit level
1 x Installation Instructions Screwdriver
2 x Filters (Part number 114311) Jig saw
Installation kit (Part Number 114481) Ladder
4 x 12 x 2' Screw Tape measure
4 x 15 Dia Washer Duct tape
4 x M3 x 10 C/Sunk Screw
16 x 6 x 3/8' Self Tapping Screw
Optional Accessories
Light Bulb
Chimney Ext.(10')
114431 Issue D
ECN 07 007

PRE-INSTALLATION

Thank you for purchasing a quality, stainless steel canopy hood.
We have a high standard of quality control and each canopy hood is tested and approved before it
leaves the factory.
IMPORTANT
Always switch the power off prior to installation, servicing or cleaning the canopy hood.
•
Never use the canopy hood without the filters.
•
Stainless steel is very easily damaged during installation if abraded or knocked by tools.
•
Please read the entire instructions before installing the canopy hood.
•
A power outlet should be within 1200mm from the motor assembly and can be either on the
•
wall, behind the chimney or in the ceiling.
Ducting accessories are not supplied. All ducting must comply with local requirements and
building codes.
All electrical work must be done in accordance with local and/or national electrical
codes as applicable. For safety this product must be earthed. If you are unfamiliar with
methods of installing electrical wiring, employ the services of a qualified electrician.
Turn off power at service entrance before installing wiring or servicing this product.
The canopy hood is heavy please ensure adequate care when installing the canopy hood
to prevent personal injury. The canopy hood must be installed onto a solid wall or solid
lbs
stud. Weight of product 21 kg.

HEIGHT OF CANOPY HOOD

FILTER SURFACE
HOB TOP
114313
2196
A=600 min (electric cook top)
A=650 min (gas cook top)

CONTROL PANEL

Timer switch: Canopy hood will remain on a low,
mid or high speed for 15 minutes to clear away all
residual cooking
automatically .
The canopy hood is designed for 2400mm ceilings.
•
The chimney is telescopic and is designed for hood installations
•
between 600 to 750mm above the cooking surface.
Ascertain the desired installation height of the canopy hood.
•
Any installation above 750mm will compromise the extraction
•
performance.
The air outlet from the motor requires 150mm round ducting
•
which requires 170mm diameter hole in the ceiling.
odours before switching off
Timer Speed settings Lights
