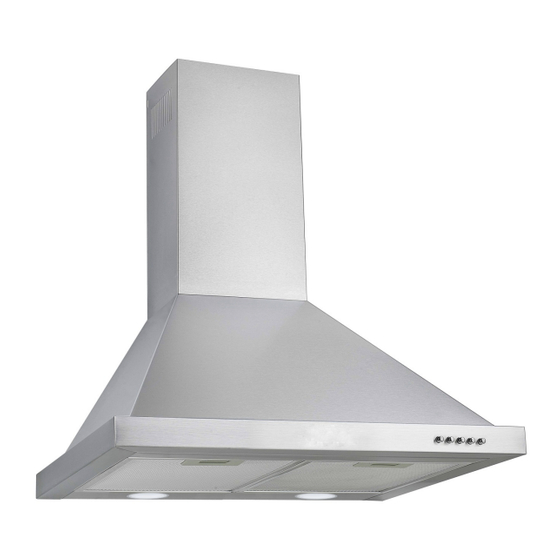

- Page 1 Installation and Operating Instructions Model Numbers: RWC60XCOM, RWC90XCOM Description: Wall Canopy Rangehood Pictured: RWC60XCOM...
-
Page 2: Table Of Contents
Contents Congratulations! Thank you for choosing one of our appliances. Before you use the appliance, we strongly recommend that you read through the whole user manual which provides important safety instructions and description of the product and the proper use of its functions. To avoid the ever‐present risks involved with using an electrical appliance it is vital that the oven is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. -
Page 3: Important Safety Instructions
Important Safety Instructions IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. In certain circumstances electrical appliances may be a safety hazard. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 4: Appliance Details
Appliance Details Voltage and Frequency: 220‐240V 50Hz RWC60XCOM: 2 x 3W GU10 LED Lamp Max: RWC90XCOM: 2 x 3W GU10 LED RWC60XCOM: 196W Rated Input Power: RWC90XCOM: 196W General Information Before installing and operating the rangehood, carefully read the following important information regarding installation safety and maintenance. -
Page 5: Pre-Installation
Pre-Installation Ducting The method of ducting should be carefully considered before installing the rangehood. 150mm round ducting should be used in conjunction with this model rangehood. Alternatively, this rangehood can be operated in recirculation mode. Installation position Minimum height from the hob surface to the underside face of the rangehood: 650mm. -
Page 6: Installation
Installation Mounting to a stud is recommended. However, if fitted to other wall linings (plasterboard, concrete etc) suitable fixings will be required. Before drilling any holes check that the wall and ceiling are clear of any electrical cables, pipes etc. Pre drill pilot holes in the positions given. - Page 7 Installation Connect and secure the ducting (use duct tape if required). Remove the protective plastic covering from all parts including the filters. Fit the canopy hood on the fixing bracket. Mark and drill the two holes required for the safety screws. Secure the canopy in place with the safety screws provided.
-
Page 8: Operating Instructions
Operating Instructions Controls Power On / Off Speed 1 Speed 2 Speed 3 Lights On / Off Light The light can be operated independently from the fan and is controlled in accordance with the graphics printed above. The fan is operated by turning the power switch on. It can be run at three different speeds (Speed 1 / Speed 2 / Speed 3) depending on the cooking requirements and is controlled in accordance with the graphics printed above. -
Page 9: Replacing The Lights
Replacing the Lights Warning: Before attempting to replace the lights, ensure that the appliance is switched off and unplugged from the wall socket. Ensure that the light is cool before touching. • Remove the aluminium filter. • Press the light face and turn anti‐clockwise to remove. •... -
Page 10: Warranty Certificate
This warranty is given by: Shriro Australia Pty Ltd ABN 28 002 386 129 Telephone: 1800 648 556 Facsimile: 1800 628 577 Email: customercare@shriro.com.au www.robinhood.com.au Attention: Customer Services Manager Warranty exclusions The warranty does not apply where, in Shriro’s opinion: •...
