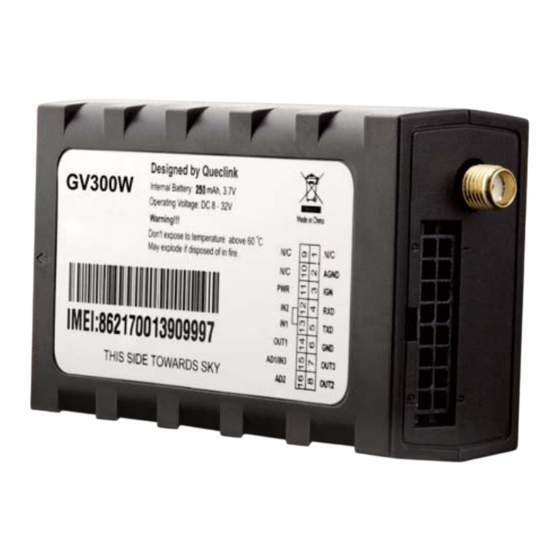

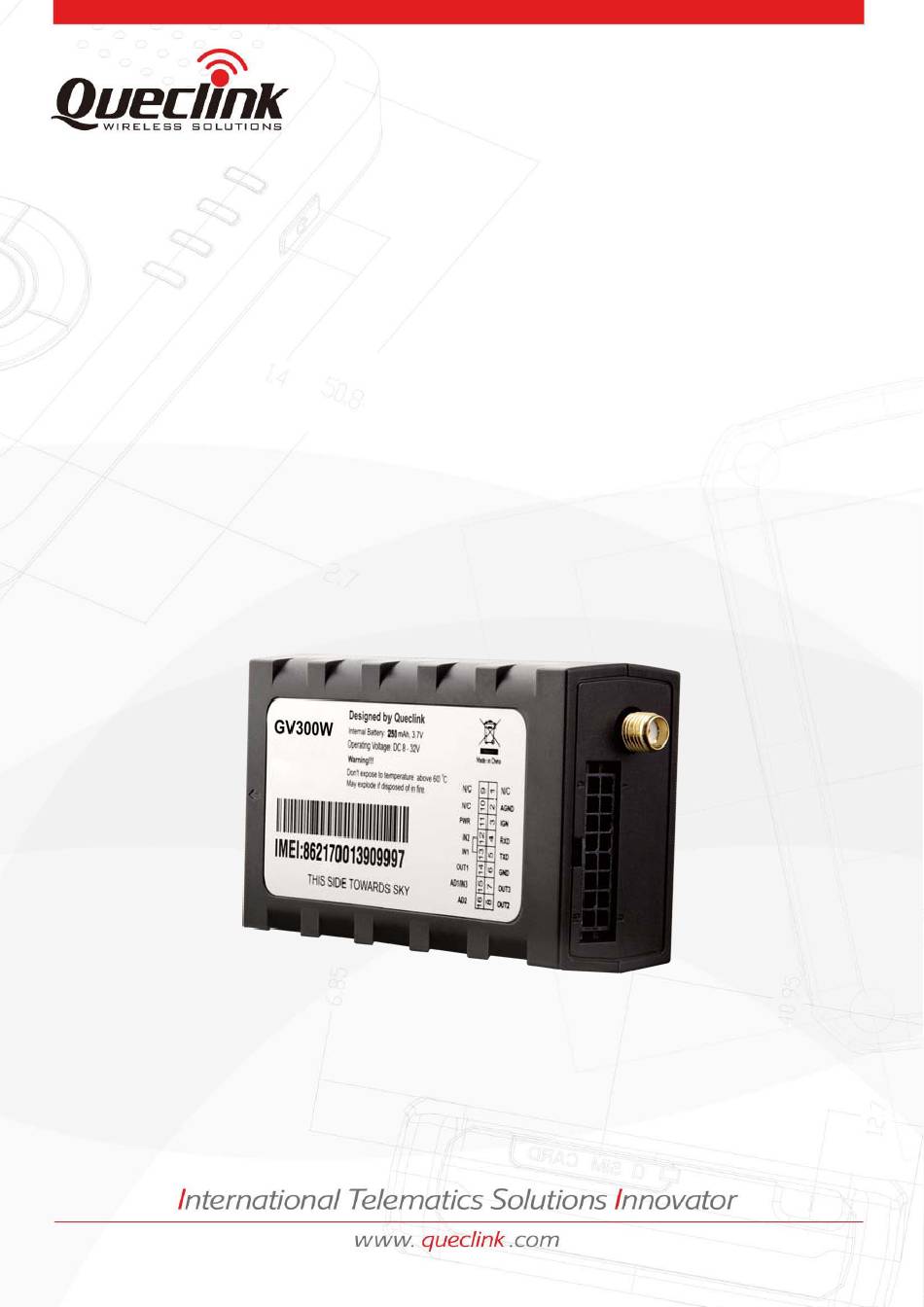

- Page 1 GV300W Manage Tool User Guide GV300W Manage Tool User Guide GSM/GPRS/WCDMA/GNSS Tracker TRACGV300WMT001 Version: 1.08 TRACGV300WMT001 - 0 -...
- Page 2 TRACGV300WMT001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.
- Page 3 GV300W Manage Tool User Guide Contents Contents ............................2 0. Revision History..........................3 1. GV300W Manage Tool Interface ....................4 1.1. System Requirements......................4 1.2. COM Setting ........................4 1.3. Quick Setting Wizard......................4 1.4.
- Page 4 GV300W Manage Tool User Guide 0. Revision History Version Date Author Description of Change 1.00 2015-01-27 Chard xu Initial 1.01 2015-06-09 Happy Peng 1. Added the AT+GTURT command. 2. Added the commands AT+GTFSC, AT+GTDAT, AT+GTACD, AT+GTEFS, AT+GTUDT, AT+GTCAN, AT+GTIDA and AT+GTTMP.
- Page 5 GV300W Manage Tool User Guide 1. GV300W Manage Tool Interface GV300W Manage Tool is PC software which can be used to configure GV300W through UART. It is easy for the backend server developers to configure GV300W with the Manage Tool, which has friendly user interface.
- Page 6 GV300W Manage Tool User Guide Before you enter Quick Setting Wizard, you must make sure the COM connection is OK. Please refer Chapter 2.1 for the details of setting with Quick Setting Wizard. 1.4. Professional Setting Windows Title Bar Menus...
- Page 7 GV300W Manage Tool User Guide 1.4.1. Title Bar Title Bar indicates current operational command title and the name of the Manage Tool. 1.4.2. Menus It includes “Start”, “Tool”, “Help” in menus. 1.4.2.1. Start Menu Start menu includes “COM Settings”. [COM Setting]: It is used to set the COM information and password. For setting details, please refer to Chapter 1.2.
- Page 8 GV300W Manage Tool User Guide “Advanced Options” includes COM settings and other settings. COM Settings is used to set COM setting. It is recommended to use default settings for these settings. 1.4.2.3. Help Menu [About]: Select “About”. Then the following pop-up window will be displayed.
- Page 9 GV300W Manage Tool User Guide “Manage Tool Version” indicates the version of this Manage Tool. “Support Version” indicates the firmware which this Manage Tool is used for. “Device Version” indicates the firmware which connects to the PC. It is recommended to use the same version as Support Version.
- Page 10 GV300W Manage Tool User Guide “Load Configuration From File”: It is used to load configuration file to the Manage Tool. [Send All Configuration]: It is used to send all configurations in Command Operation Space. [Save All Configuration]: It is used to save all configurations in Command Operation Space to file.
- Page 11 GV300W Manage Tool User Guide Report Frequency Change of Fixed Report AT+GTFFC Information Alarm Settings Geo-Fence Configuration AT+GTGEO Tow Alarm Configuration AT+GTTOW Speed Alarm AT+GTSPD Excessive Idling Detection AT+GTIDL Harsh Behavior Monitoring AT+GTHBM Start/Stop Report AT+GTSSR Buzzer Alarm Configuration AT+GTBZA...
- Page 12 GV300W Manage Tool User Guide AT+GTAVS Detection Accelerometer(Motion status) Virtual Ignition Settings Real Time Operation AT+GTRTO Hour Meter Count AT+GTHMC AT+GTMON Voice Monitoring White List AT+GTWLT Other Settings Command String Storage AT+GTCMD User Defined Function AT+GTUDF AT+GTFVR Configuration File Version...
- Page 13 GV300W Manage Tool User Guide [Send]: Click this button to send this command to the device. 1.5. Operation Result Interface 1.5.1. Operation Successful Interface 1.5.2. Operation Failed Interface There should be something wrong with COM port connection if the failure reason is timeout.
- Page 14 GV300W Manage Tool User Guide Please change to correct the device password if Password Error occurs. There are some issues with this COM. Please check your COM wire or port. TRACGV300WMT001 - 13 -...
- Page 15 OK. Welcome to Quick Setting Wizard 2.1.2. WCDMA Network Setting Step_1: Set APN, APN user name and password in this window. For the meanings of these parameters, please refer to the “GV300W @Track Air Interface Protocol”. TRACGV300WMT001 - 14 -...
- Page 16 Step_1: Set report mode, main server, main server port, and SMS gateway in this window. The meaning of these parameters, please refer to the “GV300W @Track Air Interface Protocol”. Step_2: Click “Check if main backend server is available” to check if main server IP and port are valid in network.
- Page 17 Step_3 2.1.4. Fixed Time Report Setting Step_1: Set check interval, send interval and discard no fix in this window. For the meanings of these parameters, please refer to the “GV300W @Track Air Interface Protocol”. Step_2: Click “Next”. TRACGV300WMT001 - 16 -...
- Page 18 GV300W Manage Tool User Guide Step_1 Step_2 2.1.5. Send Command to Device Step_1: Click “Send Command”. The commands AT+GTBSI, AT+GTSRI, and AT+GTFRI will be sent to the device. Step_2: If the settings are downloaded successfully, the result return OK. Click “OK” the result windows will be closed.
- Page 19 GV300W Manage Tool User Guide Step_1 Step_2 TRACGV300WMT001 - 18 -...
- Page 20 Command Operation Space. Step_2: Command Create Automatically The command message which shall be sent to GV300W will be generated based on input and displayed here. Please note this command message can also be sent to GV300W through SMS or CDMA.
- Page 21 GV300W Manage Tool User Guide 2.3. Read/Save All Configuration Step_1: It is recommended to read all configurations from the device before saving the configuration. Select “Read All Configuration””Read From Device”. Note：The command AT+GTDAT will not be read when clicking ”Read From Device”.
- Page 22 GV300W Manage Tool User Guide 2.4. Load/Send All Configuration Step_1: Before sending all configurations, please load the configuration file or set all parameters in commands. To load configuration file, please select “Read All Configuration” ” Load Configurations From File”. Then select the configuration file you need.
