Page 1: User Manual

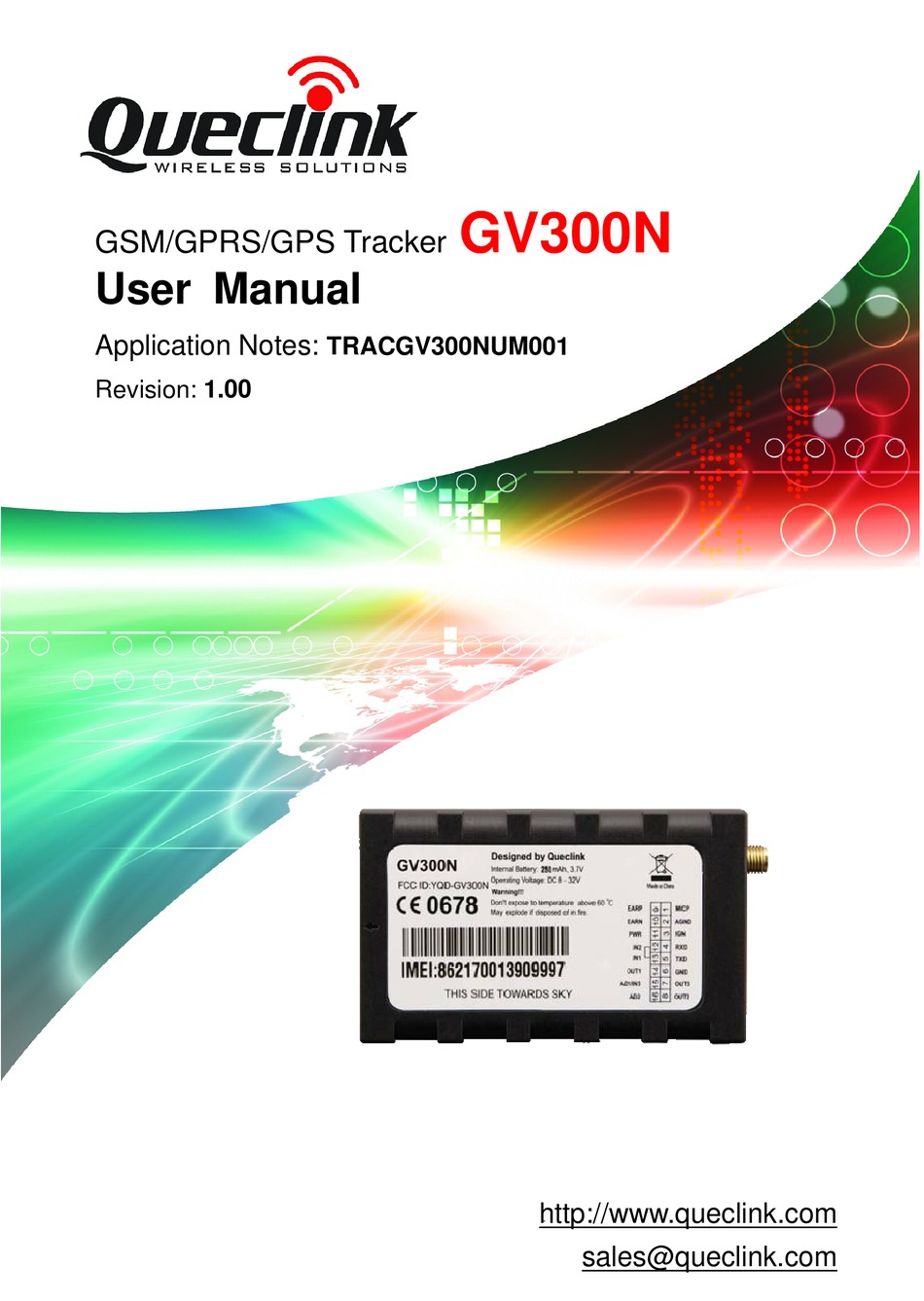

GV300 User manual GV300N GSM/GPRS/GPS Tracker User Manual Application Notes: TRACGV300NUM001 Revision: 1.00 H h ttp://www.queclink.com TRACGV3SUM001 - 1 - H s ales@queclink.com... - Page 2 Document Control ID General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.
-
Page 3: Table Of Contents
Product Overview ........................9 2.1. Check Parts List ......................9 2.2. Parts List .........................10 2.3. Interface Definition ....................11 2.4. GV300N User Cable Color ..................12 Get Started..........................13 3.1. Open the Case ......................13 3.2. Close the Case ......................13 3.3. Install a SIM Card ....................14 3.4. - Page 4 TERMS AND ABBREVIATIONS ..................8 TABLE 3. PARTS LIST........................10 TABLE 4. DESCRIPTION OF 16 PIN CONNECTIONS.............. 11 TABLE 5. GV300N USER CABLE COLOR DEFINITION ............12 TABLE 6. GPS ANTENNA SPECIFICATION ................16 TABLE 7. ELECTRICAL CHARACTERISTICS OF IGNITION DETECTION ......17 TABLE 8.
- Page 5 GV300N User manual Figure Index FIGURE 1. APPEARANCE OF GV300N ..................9 FIGURE 2. THE 16 PIN CONNECTOR ON THE GV300N............11 FIGURE 3. OPEN THE CASE......................13 FIGURE 4. CLOSE THE CASE.......................13 FIGURE 5. SIM CARD INSTALLATION..................14 FIGURE 6. BACKUP BATTERY INSTALLATION ...............14 FIGURE 7.
-
Page 6: Revision History
GV300N User manual 0. Revision History Revision Date Author Description of change 1.00 2014-11-17 Super Zhao Initial TRACGV300NUM001 - 6 -... -
Page 7: Introduction
GPS position as well as many other useful functions. Users can also use GV300N to monitor the status of a vehicle and control the vehicle by its external relay output. System integrators can easily set up their tracking systems based on the full-featured @Track protocol. -
Page 8: Reference
GV300N User manual Reference Table 1. GV300N Protocol Reference Document name Remark GV300N @Track Air Interface Protocol The air protocol interface between GV300N and backend server. Terms and Abbreviations Table 2. Terms and Abbreviations Abbreviation Description AGND Analog Ground Analog Input... -
Page 9: Product Overview

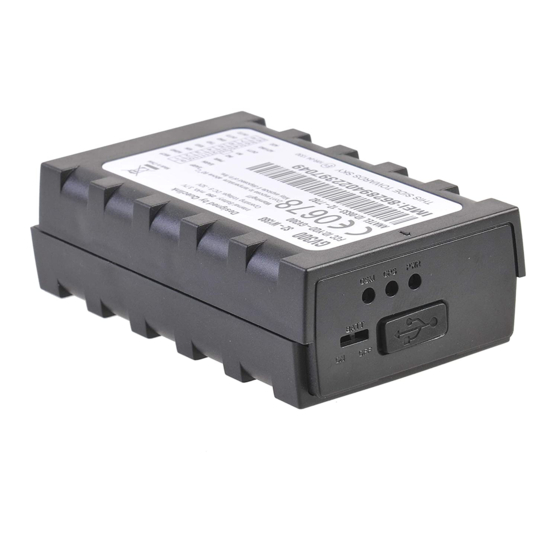

GV300N User manual 2. Product Overview 2.1. Check Parts List Before starting, check whether all the following items have been included with your GV300N. If anything is missing, please contact your supplier. Figure 1. Appearance of GV300N TRACGV300NUM001 - 9 -... -
Page 10: Parts List
GV300N User manual 2.2. Parts List Table 3. Parts List Name Picture GV300N Locator 80*49*26 mm User Cable GPS Antenna (Optional) DATA_CABLE_M (Optional) TRACGV300NUM001 - 10 -... -
Page 11: Interface Definition
GV300N User manual 2.3. Interface Definition The GV300N has a 16 PIN interface connector which contains the connections for power, I/O, RS232, microphone, speaker, etc. The sequence and definition of the 16PIN connector are shown in the following figure: Figure 2. The 16 PIN Connector on the GV300N Table 4. -
Page 12: Gv300N User Cable Color
GV300N User manual 2.4. GV300N User Cable Color Table 5. GV300N User Cable Color Definition Definition Definition Color Cable Color OUT2 Yellow Brown/White OUT3 Brown Green AD1/IN3 Black Blue OUT1 White/Black Orange Pink Orange/Black White AGND Gray/Black Purple/White EARN MICP... -
Page 13: Get Started
GV300N User manual 3. Get Started 3.1. Open the Case Figure 3. Open the Case Insert the triangular-pry-opener into the gap of the case as shown above, and push the opener up until the case is unsnapped. 3.2. Close the Case Figure 4. -
Page 14: Install A Sim Card
Take care to align the cut mark. Close the SIM card holder. Close the case. Figure 5. SIM Card Installation 3.4. Install the Internal Backup Battery Figure 6. Backup Battery Installation GV300N has an internal backup Li-ion battery. TRACGV300NUM001 - 14 -... -
Page 15: Switch On The Backup Battery
GV300N User manual 3.5. Switch on the Backup Battery To use the GV300N backup battery, the switch must be in the ON position. The switch on the case and the ON/OFF position are shown below. Figure 7. Switch and ON/OFF Position Note: 1. -
Page 16: Gps Antenna Specification
GV300N User manual 3.6.1. GPS Antenna Specification Table 6. GPS Antenna Specification GPS antenna Frequency: 1575.42 MHz Bandwidth >5 MHz Beam width >120 deg Supply voltage 2.7V-3.3V Polarization RHCP Gain Passive: 0 dBi min Active: 15 dB Impedance 50Ω VSWR <2... -
Page 17: Ignition Detection
IGN signal can be configured to start transmitting information to the backend server when ignition is on, and enter the power saving mode when ignition is off. 3.9. Digital Inputs There are three general purpose digital inputs on GV300N. They are all negative triggers. Table 8. Electrical Characteristics of the Digital Inputs Logical status... -
Page 18: Analog Inputs
GV300N User manual Figure 11. Typical Digital Input Connection 3.10. Analog Inputs There are two analog inputs on GV300, and the analog input voltage range is from 0 to 16V. The following diagram shows the recommended connection. Figure 12. Typical Analog Input Connection Note: PIN 15 is a multifunction pin: it can be configured as a digital input or an analog input. -
Page 19: Digital Outputs
GV300N User manual 3.11. Digital Outputs There are three digital outputs on GV300N. All are of open drain type and the maximum drain current is 150 mA. Each output has the built-in over current PTC resettable fuse. Figure 13. Digital Output Internal Drive Circuit Table 9. -
Page 20: Device Status Led
If this diode is not internal, it should be added externally. A common diode such as a 1N4004 will work in most circumstances. 3.12. Device Status LED Figure 16. GV300N LED on the Case TRACGV300NUM001 - 20 -... -
Page 21: Serial Port/Uart Interface
GV300N User manual Device status LED status Device is searching GSM network. Fast flashing (Note 1) (Note 3) Device has registered to GSM network. Slow flashing (Note 4) SIM card needs pin code to unlock. GPS chip is powered off. -
Page 22: Connect With Garmin Gps Set
GV300N can communicate with Garmin GPS set. The following typical connection is using Queclink AG100 cable. Figure 18. GV300 Connection with Garmin GPS Set Note: Some versions of GV300N can connect with Garmin GPS set by Garmin FMI10/FMI15 cable. Please consult Queclink for detail information. TRACGV300NUM001 - 22 -... -
Page 23: Connect With Can100 Device
GV300N User manual 3.13.2. Connect with CAN100 device GV300N can communicate with CAN100 device only by RS232 port. The following picture shows the external interface of CAN100 device. Refer to Figure 19. Figure 19. The External Interface of CAN100 Device The following table 11 shows the definition of CAN100 device’s external interface .
