Ayra TDC Power Derby User Manual

Ayra TDC Power Derby User Manual

Dmx led light effect
Hide thumbs Also See for TDC Power Derby:

Advertisement

Table of Contents

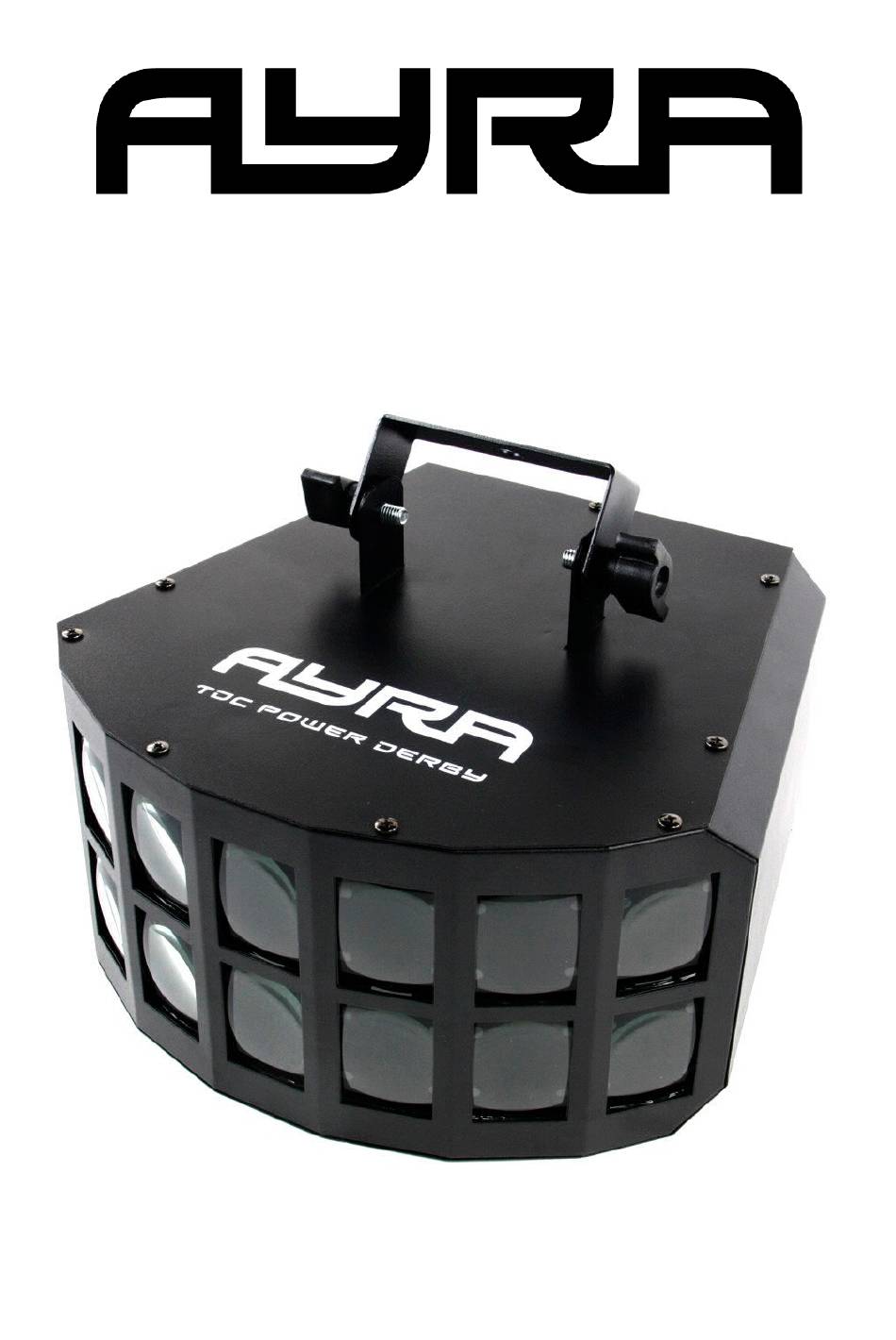

TDC Power Derby
DMX LED light effect
User manual
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0
Creation date + author initials: 21-11-2013 RV Revision date + author initials: 16-07-2014 RV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDC Power Derby and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ayra TDC Power Derby

Summary of Contents for Ayra TDC Power Derby

  • Page 1 TDC Power Derby DMX LED light effect User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 16-07-2014 RV...

  • Page 2: Safety Instructions

    Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device.
  • Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra can not be held responsible for any damage or injury caused by improper use.
  • Page 4 rating. - Do not bridge the fuse with electrical wires, aluminum foil, as the fuse is used for protection against electrical shocks and short circuit. - Always mount the fuse cover back to the fuse compartment. Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 16-07-2014 RV...

  • Page 5: Box Contents

    Box contents Box contents 1x TDC Power Derby fixture 1x power cable to Schuko 1x power cable to UK plug Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it.

  • Page 6: Device Overview

    Device overview 1. Beam output 2. Adjustable bracket 3. Built-in microphone 4. DMX input (3P XLR) 5. DMX output (3P XLR) 6. Menu display with buttons 7. Safety eye 8. IEC output (Power link) 9. IEC input with fuse Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 16-07-2014 RV...

  • Page 7: Setting Up The Unit

    Setting up the unit To activate the unit, connect the included power supply to the unit and a suitable 230V, 50 Hz power outlet. The fixture will start up and show the last chosen setting on the display. Usually, with a new product, this is the DMX mode with the value set on 001.
  • Page 8 The master/slave function requires XLR – XLR cables (not included). DMX: The TDC Power Derby can be connected to a DMX-controller with standard XLR – XLR cable. While doing so, a DMX-terminator must be connected to the last fixture, at the end of the DMX-chain. This prevents reflections in the DMX-signal, which could cause flickering and unwanted behavior from your intelligent fixtures.
  • Page 9 10CH mode: Channel Mode Value Function Function Black out 001-199 Dimmer 200-247 Strobe 248-255 Full bright Color 000-255 The first red dimmer Color 000-255 The first green dimmer Color 000-255 The first blue dimmer Color 000-255 The first white dimmer Color 000-255 The second red dimmer...

  • Page 10: Installation And Maintenance

    - It is prohibited to install the system by using only safety cables or chains! Warranty is void when any of the above safety precautions are not met. Ayra can not be held responsible if any damage or injury occurs due to improper use of the system.
  • Page 11 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve any difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
  • Page 12 DMX signal (high) power cables parallel to each other. No DMX terminator Apply a DMX terminator at the end of your DMX-chain Signal loss or distortion in DMX Apply a DMX booster in your DMX values chain after 32 fixtures or less. After a maximum of 32 fixtures the DMX signal needs to be refreshed.

  • Page 13: Technical Specifications

    Technical specifications Powerful LED derby effect High output thanks to 2x 10W RGBW LED chip Dozens of narrow, colourful and moving beams fill the room with light Razorsharp optics for intense beam projections Individual LED chip control with colour mixing, for creative colour combinations. Working modes: Automatic, music-controlled, master/slave, DMX Exciting built-in programs or full control with a DMX controller DMX operation: 1, 3, 10 channels...
