High capacity stacker sensor (media bin full) assembly removal

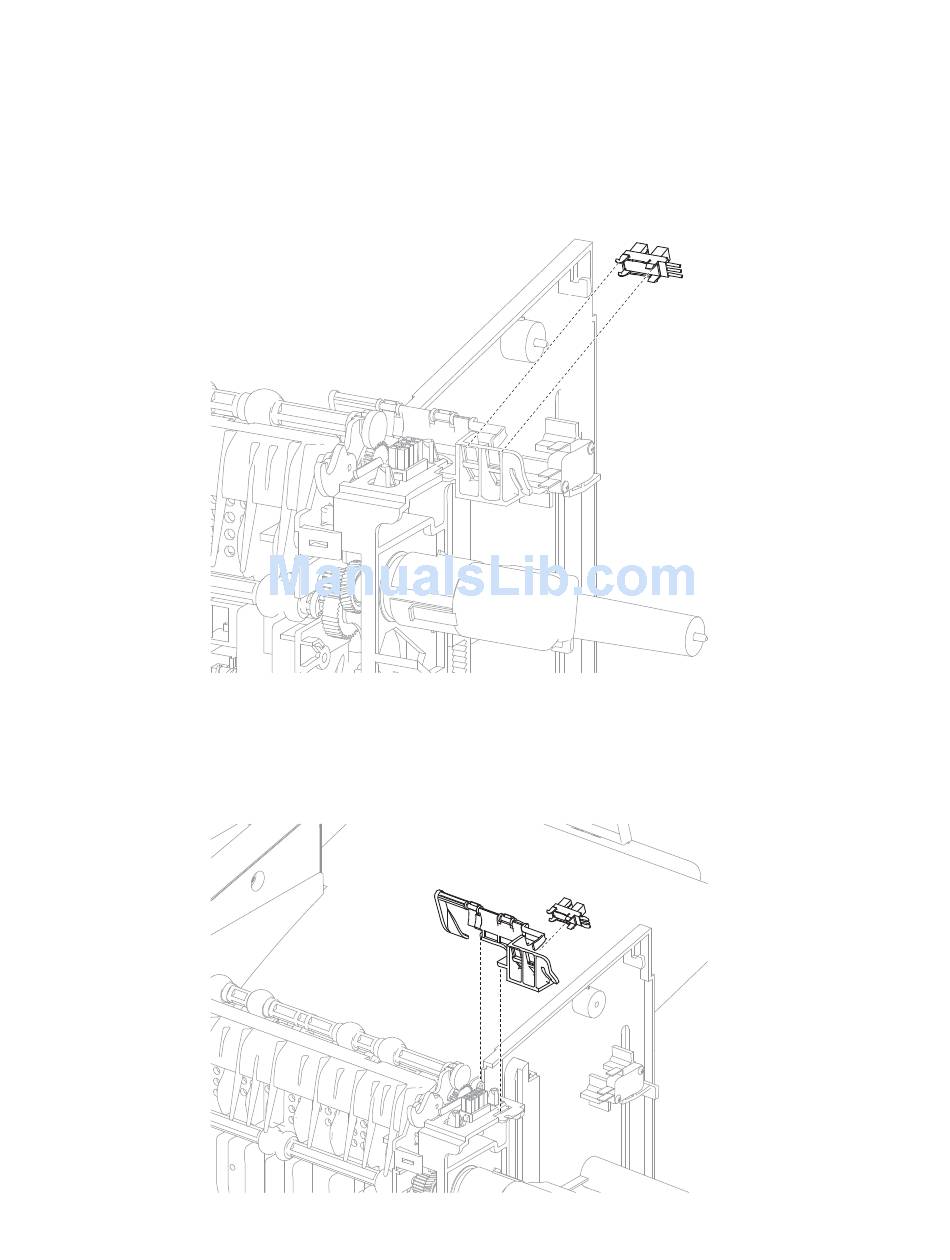

1. Remove the high capacity stacker controller card cover panel. Go to
card cover panel removal" on page
2. Release the tabs securing the high capacity stacker sensor (media bin full) assembly to the left frame.
3. Disconnect the sensor (media bin full) harness from the upper controller card.
4. Remove the high capacity stacker sensor (media bin full) assembly.
High capacity stacker sensor (media bin full) bracket assembly removal
1. Remove the high capacity stacker left cover. Go to
page 4-140.
2. Release the tab securing the bracket to the left frame.
4-144
Service Manual
4-142.
"High capacity stacker left cover removal" on
"High capacity stacker controller
