4062-XXX
6. Remove the card mount option with the media size actuator.
Re-installation note:
1. Re-install the card mount option with the media size actuator to the frame by inserting the leftmost part of it
through the hole, and then securing it with the four screws.
2. Re-install the actuator switch with the spring to the card mount option through the drawer opening.
3. Re-install the cam size sensing plate with the spring to the card mount option through the access hole in the
rear side.
4. Reattach the two springs to the frame.

Sensor (HCIT tray raised HP) with cable assembly removal

Note: Carefully remove the base machine from the HCIT tray assembly before proceeding.
1. Remove the HCIT cover, left. Go to

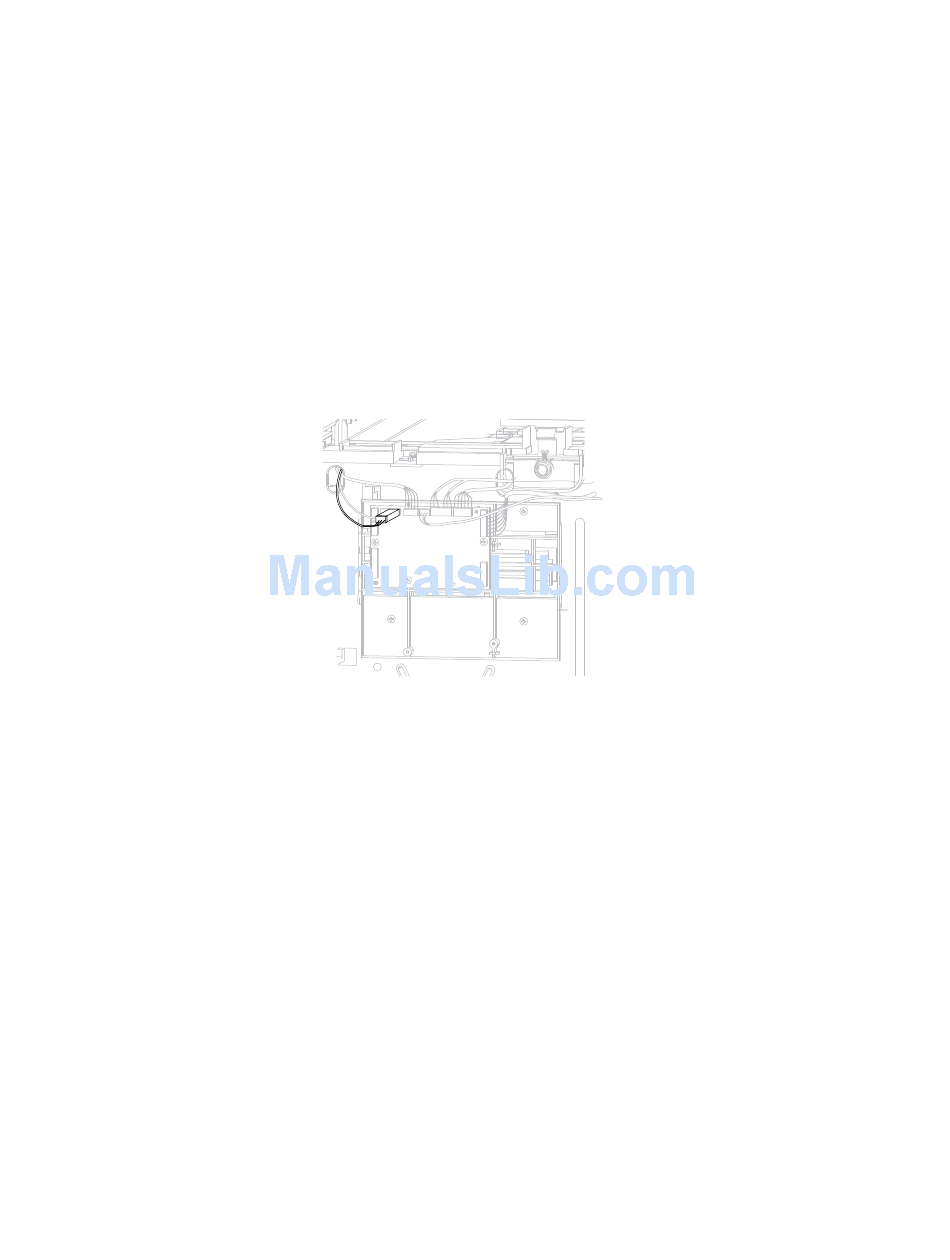

2. Disconnect the sensor (HCIT tray raised HP) cable connector from the HCIT controller card assembly.
Note: Remove the cable from the restraints, and observe the routing for reinstallation.
4-90
Service Manual
"High capacity input tray (HCIT) cover, left removal" on page 4-83.
