4062-XXX
231-239 paper jams (optional external duplex unit)
Rear paper jams

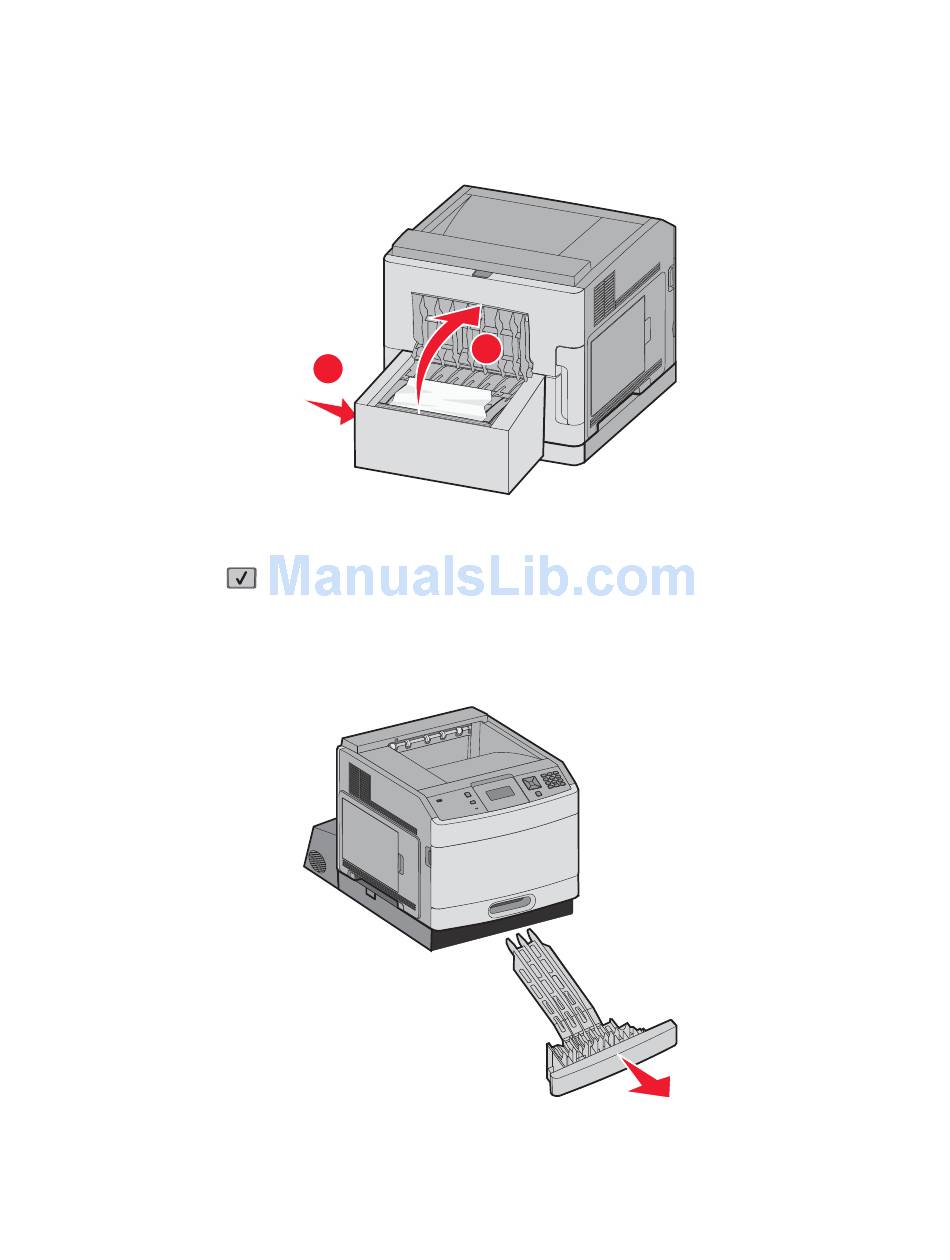

1. Push in and hold the latch while pulling up the rear duplex door.
2
1
2. Remove the jammed paper.
3. Close the rear duplex door.
4. Press
.
Front paper jams
1. Remove the standard tray from the printer.
2. Remove the duplex jam access tray.
3-71
Diagnostic aids
