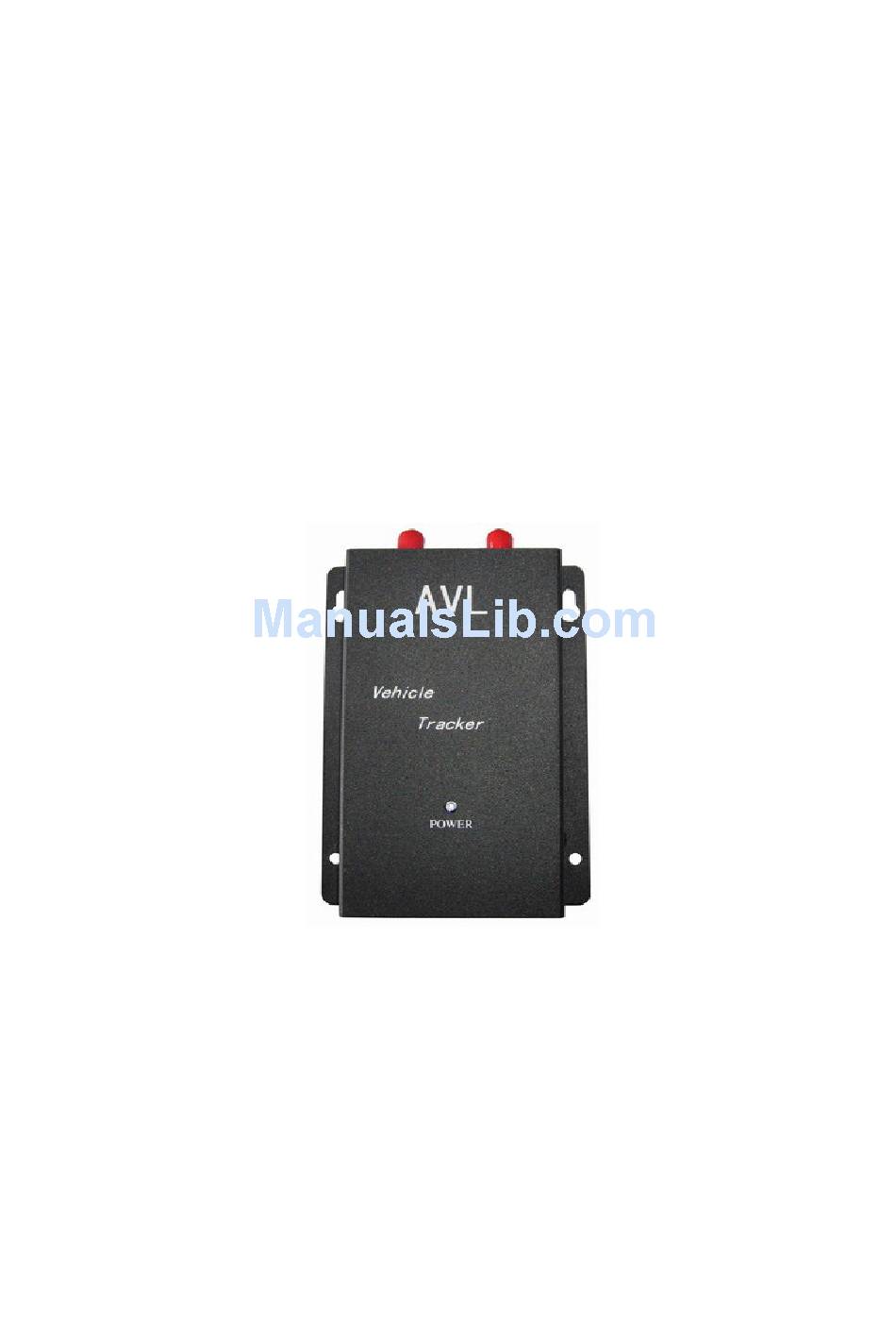

- Page 1 GPS+GSM+GPRS AVL Automatic Vehicle Tracker PST-AVL01 Please read it carefully before installation and operation Page 1 of 23...
-
Page 2: Table Of Contents
Table of Contents I. Hardware installation.............3 A. working directions………………………………………………….…3 B. System introduction…………………….………………………….…4 C. Wiring Installation…………………………….………………….…...4 1. Product Parts List ................4 2. Precaution before Installation ............5 3. Panel Description ................5 4. Installation..................6 5. Power Charging................8 6. Wiring Description................10 7. Description of the LED Indicators ..........10 8. -
Page 3: Hardware Installation
I Hardware installation Working Directions: Thank you for your purchase of PST-AVL01 Automatic Vehicle Tracker. In order to realize the full functions of this product, please read this manual carefully before starting to use the product. 1. This product can only be maintained and repaired by qualified professional service personnel. If you detach this product for maintenance or repair, your warranty will be invalidated. -
Page 4: Wiring Installation
Following are the function descriptions for the PST-AVL01 products. GPS Position Tracking Function: With this function, the vehicle owner will be able to know the geographic coordinates, direction, and other related information of the car anytime in any place. The report methods can be via SMS short message service. -
Page 5: Precaution Before Installation
2. Precaution before Installation Check if all the parts are included. Prepare a SIM card for GSM communication. Use some other mobile phone to confirm that the PIN code has not been set, and that it can dial out and receive telephone calls without problem. Before install the SIM card, make sure to cut off power from the AVL unit. -
Page 6: Installation
SIM card connector 4. Installation: Step 1: Install GSM Antenna * Connect the GSM Antenna to the unit. * Fasten the connection by turning the screw in the bottom. Please do not swing round the antenna itself. Step 2: Install SIM Card (1) Unscrew and remove the front cover of your locator. - Page 7 ※ Make sure to deactivate the PIN code, so that the SIM card can operate without PIN protection. ※ Before install the SIM card to the GPS Tracker, please use a mobile phone to make sure the SIM card can make & receive phone calls without problem.
-
Page 8: Power Charging
If your car is with metallic windshield, please cut a hole on the windshield above the place where you put the GPS antenna, so that the antenna can receive the GPS signals. Step 5: Connect power charging PST-AVL01 connects to the car charger lighter socket. GSM Antenna Connect Blue line and Green line... - Page 9 Other Lines: Colour function DC IN ( power input ) Input voltage : 9V~35V Suggested : 12V Black white IN :Control signal input ( for example, you can input one pressing key single) See following application example Blue Out :Control signal output See following application example Yellow SW1 : Connect the power switch...
-
Page 10: Wiring Description
(2) Send one following SMS to give the relay the current to drive it : W******,020,1,1 (3) Send one following SMS to cut off the current of the relay.: W******,020,1,0 IN Pin operation: (1) connect one SOS key as above picture show. (2) Send one following SMS to set SOS alarm phone number of aid canter W******,003,1,1,Tel number Tel number:... - Page 11 No matter where you are, when you want to know the position of your vehicle, send a SMS message or make a telephone call to the PST-AVL01; it will report its location back to you by SMS . Edit a message as following format, then send it to PST-AVL01:...
-
Page 12: Stop Tracking Function
In this example, the SMS is Set Time (005 Min) OK This SMS means that PST-AVL01 is in tracking mode now and preset time interval is 5 minutes. Step3. PST-AVL01 will send back position SMS at preset time interval. In this example, the SMS will send back at preset time interval :5 minutes 3. -
Page 13: Hardware Specification
You can get the latitude & longitude data by sending “W+Password+, +000” SMS command Code to the GPS Tracker PST-AVL01. Input the received latitude & longitude data to Google Earth (from earth.google.com) or Google Maps (maps.google.com), then you can find the position fix in the map. - Page 14 : 000000 ,the SMS command code is: W000000,000 2) GPS Tracker will send back some data similar to below, with latitude/ longitude figures. 3) Start the Google Earth software.(For more information about Google Earth software, please refer to http://earth.google.com/).
-
Page 15: More Professional Sms Instruction
Set a preset phone number for W******,003,1,1,TelNumber SOS button TelNumber: Preset Tel number When this button is pressed, (TelNumber must <16 digits ) PST-AVL01 will dial the preset number. Set low power alarm W******,004,X (voltage preset value) =0 , close =1, <3.3V send SMS alarm... - Page 16 22 degree - 32 cent - 40.05 second B=1, position SMS format is NMEA 0183 Format For example: $GPRMC,072414.000,V,3114.37 63,N,12131.3255,E,0.00,0 .00,050805,*00 C=0, PST-AVL01 do NOT hung up when one call incoming . C=1, PST-AVL01 hung up after 4~5 rings when call incoming D=0,...
- Page 17 XX=00 close sleep mode XX=01 sleep XX=02 deep sleep GPRS setting Set the phone number for W******,010,tel PST-AVL01 for GPRS telephone number according the SIM card of AVL01 (tel must be < 14 digits) Set APN W******,011,APN : APN string Set IP Address &port number...
-
Page 18: Iiii Gprs Communication Setting
2 SMS W0000,013,0 is disable GPRS function ) Step6 : According to GPP communication protocols of PST-AVL01, the server can analyses the GPRS data. Or According to NMEA V3 protocol , the server can analyses the GPRS data. Page 18 of 23... -
Page 19: Attachment :Worldwide Apn (Access Point Name) List
Attachment :Worldwide APN (Access Point Name) List Page 19 of 23... - Page 20 Page 20 of 23...
- Page 21 Page 21 of 23...
- Page 22 Page 22 of 23...
- Page 23 Page 23 of 23...
