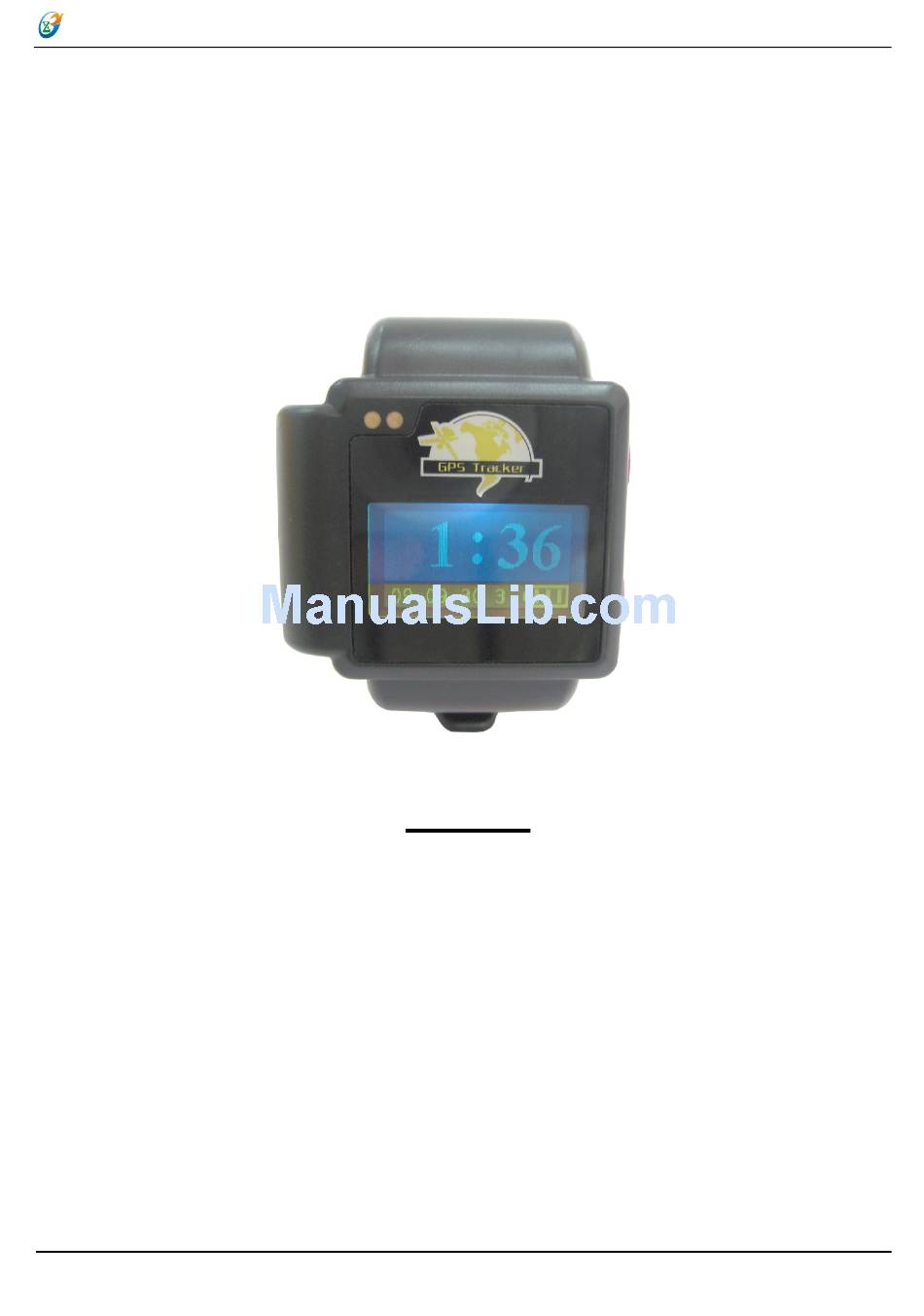

GPSTrackerManual_TK203
GSM/GPRS/GPS WATCH TRACKER
TK-203 USER MANUAL
Preface
Thank you for purchasing the Mini Gp s Watch Tracker. This manual shows how to
operate the device smoothly and correctly. Make sure to read this manual carefully
before using this product. Please note that specification and information are subject to
changes without prior notice in this manual. Any change will be integrated in the latest
release. The manufacturer assumes no responsibility for any errors or omissions in
this document
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GPS Tracker TK-203
Summary of Contents for GPS Tracker TK-203
- Page 1 ZY INTERNATIONAL LIMITED GPSTrackerManual_TK203 GSM/GPRS/GPS WATCH TRACKER TK-203 USER MANUAL Preface Thank you for purchasing the Mini Gp s Watch Tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.
-
Page 2: Table Of Contents
ZY INTERNATIONAL LIMITED GPSTrackerManual_TK203 Content 1 Summary ---------------------------------------------------------------------------------- 2 Application --------------------------------------------------------------------------------- 3 Hardware Description 3.1 Front Face -------------------------------------------------------------------------------------- 3.2 Side Face -------------------------------------------------------------------------------------- 3.3 Interior --------------------------------------------------------------------------------------- 3.4 Buttom Face --------------------------------------------------------------------------------------- 4 Specifications ---------------------------------------------------------------------------------------- 5 Usage SIM card installation ----------------------------------------------------------------------- Battery and Charger ------------------------------------------------------------------------ Quick Startup ---------------------------------------------------------------------- Initialization... -
Page 3: Summary
ZY INTERNATIONAL LIMITED GPSTrackerManual_TK203 1 Summary Working based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or GPRS. 2 Applications Rental vehicle / Fleet management etc Protect the child / the old / the disabled / pet etc ... -
Page 4: Interior
ZY INTERNATIONAL LIMITED GPSTrackerManual_TK203 NOTE:As for ON/OFF Button,keep pressing 3 seconds is ON/OFF the tracker;while keep pressing second is switch to displaying Latitude&Longitude.it displays Time,Date,Day and Battery in 30 ON/OFF Button seconds later automatically. 3.3 Interior Battery connector SIM Card slot 3.4 Bottom Face Close the watch back cover by yightened the screws... -
Page 5: Usage
ZY INTERNATIONAL LIMITED GPSTrackerManual_TK203 GPS sensitivity -159dBm GPS accuracy Cold status 45s Time To First Fix Warm status 35s Hot status 1s 110－220V input Wall charger output Battery Chargeable changeable 3.7V 450mAh Li-ion battery Standby 48hours Storage Temp. -40°C to +85°C Operation Temp. -
Page 6: Battery And Charger
ZY INTERNATIONAL LIMITED GPSTrackerManual_TK203 5.1.4 Close the back cover,and tighten the screws. 5.2 Battery and Charger 5.2.1 Charger Battery connector Chanrging slot for Watch Chanrging slot for battery Charging connector The LED indicator The indicator DC 5V Power Supply 5.2.2 Charging... - Page 7 ZY INTERNATIONAL LIMITED GPSTrackerManual_TK203 Put the battery into the slot The green indicator is full charged The red indicator is charging Put the watch into the slot for charging directly Do charge the battery to capacity in 8 -12 hours for the first use. Please use the battery and charger provided by the manufacturer.
-
Page 8: Initialization
ZY INTERNATIONAL LIMITED GPSTrackerManual_TK203 5.3 Startup Put the SIM card and battery in place,and tighten the screws.. Turn on the unit outdoors by pressing the “on/off” button for 5 seconds,until the indicator is on and flashing,the flashing stoped to represent the success of receiveing GSM signal.In 30s to 60 seconds,the unit displays the real-time after received the GPS signal. -
Page 9: Authorization
ZY INTERNATIONAL LIMITED GPSTrackerManual_TK203 5.6 Authorization There are only 5 numbers able to be authorized. 5.6.1 Setup:Send SMS admin+password+space+cell phone number to be as a authorized number. The other authorized numbers should be set up by the first authorized number. If the number is successfully authorized, the unit will reply SMS. “admin ok!”. -
Page 10: Geo-Fence
ZY INTERNATIONAL LIMITED GPSTrackerManual_TK203 30s,total 5 times.(s: second, m: minute, h: hour). The setting must be in 3 digits and at maximum 255 in value. 5.8.2 To get a Geo-info at 30s intervals to the authorized numbers for heaps of times. Setup:Send SMS t030s***n+password to the unit, it will report a Geo-info every 30s,total heaps of times. -
Page 11: Overspeed Alert
ZY INTERNATIONAL LIMITED GPSTrackerManual_TK203 This function is using for the owner to get alarm when the unit moves out of a restricted district.(500m radius). 5.10.1 Setup: When the unit stays immobile in a place for 3-10 minutes, the user can send SMS move+password to the unit, it will reply “move ok!”. -
Page 12: Sos Button
ZY INTERNATIONAL LIMITED GPSTrackerManual_TK203 5.12 SOS Button Press the SOS for 3 second, it will send “ help me !+ Geo-info” to all the authorized numbers every 3 minutes. The alert format as below: lat: 22.566923 long: 114.051331 speed:85.60 28/10/09 03:33 F:4.32V,0, Signal:F heip me imei:359587011016261 05 41.9 The unit stop sending such a SMS and it will reply the user SMS ”help me ok!”... -
Page 13: Gprs Setting
ZY INTERNATIONAL LIMITED GPSTrackerManual_TK203 13100000000 lat: 22.566923 long: 114.051331 speed:0.00 28/10/09 03:33 F:3.88V,0, Signal:F imei:359587011016261 05 41.9 5.14.2 Cancel:Send SMS noadminsms+password to cancel the SMS center.It will reply SMS noadminsms ok! 5.15 GPRS Setting In order to use GPRS function, the user needs to set IP, Port and APN ( access point name ) by cell phone. - Page 14 ZY INTERNATIONAL LIMITED GPSTrackerManual_TK203 Setup: Send SMS apnpassword+123456+space+the sim card’s password. If setup successful, the tracker will reply SMS “apnpasswrod ok”. Cancel: The old APN password will be invalid automatically when a new APN password is set. 5.15.5 GPRS transport protocols As soon as the IP &...
-
Page 15: Cautions
ZY INTERNATIONAL LIMITED GPSTrackerManual_TK203 ◆ Pls use the following SMS to set up GMT time in the SMS for the tracker time zone+password+space+ the customer’s GMT TIME ◆ Pls use the following SMS to set up YOUR website in the SMS for the tracker home+password+space+ the customer’s WEBSITE home+password+space+space (if there is no website in the SMS) 6 Cautions... -
Page 16: Faults & Solutions
ZY INTERNATIONAL LIMITED GPSTrackerManual_TK203 7 Faults & Solutions Faults Solution Check the battery and see if it is fully charged or No info display correctly installed. In existence of an authorized number, an unauthorized No SMS reply number dials up the unit . Please initialize the unit and re-set up the authorized numbers.
