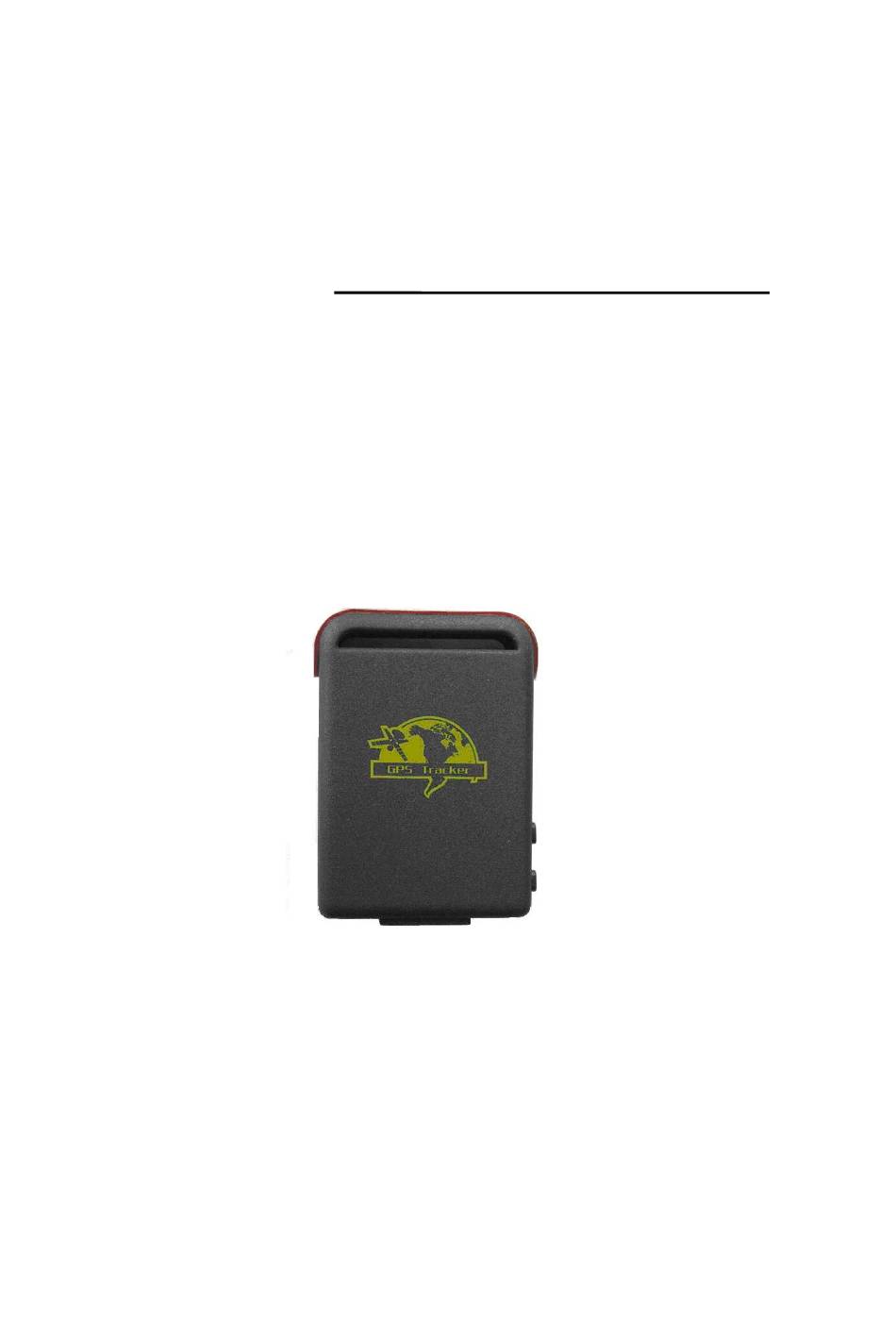

- Page 1 Portable Tracker USER MANUAL V6.18 Model No.: TK102 Updated on 10 .July.2010...
-
Page 2: Table Of Contents
7.1.1 Position Report 7.1.2 Set Interval for Automatic Timed Report 7.1.3 Stop Automatic Timed Report 7.2 GPRS Setting by SMS 7.2.1 Set ID for TK102 7.2.2 Set APN 7.2.3 Set IP Address and Port 7.2.4 Set Time Interval for Sending GPRS Packet 7.2.5 Enable GPRS Tracking Function... -
Page 3: Summary
1 Summary Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or GPR 2 Applications Vehicle rental / Fleet management etc Protect child / the old / the disabled / pet etc Provide peace-of-mind for businessmen Manage personnel Track criminals secretly... -
Page 4: For Your Safe
Safe Driving - Drivers should not operate this product while driving. Qualified Service - Only qualified personnel can install or repair TK102. Water Resistance – TK102 is not water resistant. Keep it dry. Install it inside the vehicle or use waterproof bag if necessary. -
Page 5: Device Parameter
2 LED lights to show GPS/GSM working status. Flash Memory 8MB (Optional) Interface 1 digital input for Ignition detection (Optional) 6 Getting Started This section will describe how to set up your TK102 6.1 Hardware Features TK102 includes: • TK102 Main Unit •USB Cable •User Manual •... -
Page 6: Light And Button Functionality
Press it to send SMS alert 6.3 Installation Read this manual before using your TK102 and check if all parts are included in the packaging box. Ensure that your TK102 has a working SIM installed. - Check that the SIM has not run out of credit (test the SIM in a phone to make sure it can send and receive SMS) -
Page 7: Sms Command
The default password is 000000. 7.1 Basic SMS Commands 7.1.1 Position Report To know the location of your TK102, send an SMS or make a telephone call directly to TK102 and it will report its location by SMS. Command: W<password>,<000>... -
Page 8: Gprs Setting By Sms
Example: W000000,013,1 TK102 will reply with an SMS to confirm this setting. For more information regarding of bulk configuration by USB cable please refer to < GPS Tracker Parameter Editor>. For more information regarding GPRS settings please refer to <GPRS Communication Protocol >. -
Page 9: Tracking On Map
8 Tracking on Map Download Google Earth from http://earth.google.com/ Start the Google Earth (For more information about Google Earth please refer to http://earth.google.com/) as the following picture shows: Input the latitude and longitude that you receive from the tracker by SMS and click the search button. Google Earth will display the location for you. -
Page 10: Troubleshooting
Cancel sleeping mode Wrong password in your SMS or wrong SMS format Write correct password or SMS format The SIM in TK102 has run out of credit Replace or top up the SIM card No SIM card Insert working SIM card. Check in phone that the SIM can send SMS message. -
Page 11: Sms Command List
80Km/h Set Geo-fence alert W******,006,XX XX ( preset distance to original place ) =00, close When the TK102 moves out of =01, 30m preset scope, it will send one =02, 50m Geo-fence SMS to the SOS =03, 100m preset number. - Page 12 E=0, reserved E=1, TK102 shuts down automatically when the power voltage lower than 3V. F=0, Turn off the alert when TK102 enters GPS blind area. F=1, Turn on the alert when TK102 enters GPS blind area. SMS is to be sent to SOS...
- Page 13 GSM enters Example: standby mode stop If XX=10, TK102 will enter power saving sending out message until it is mode after it is immobile for 10 minutes. activated by an SMS or an incoming call) phone...
- Page 14 example, W000000,032,-120. Set character for SOS alert W******,033,1,Char Char is the character in SOS message message and max 32 characters Get SMS in goolge link W******,100 The device will send the SMS report with format google map link, which can open the map on the PDA or Smart phone.
