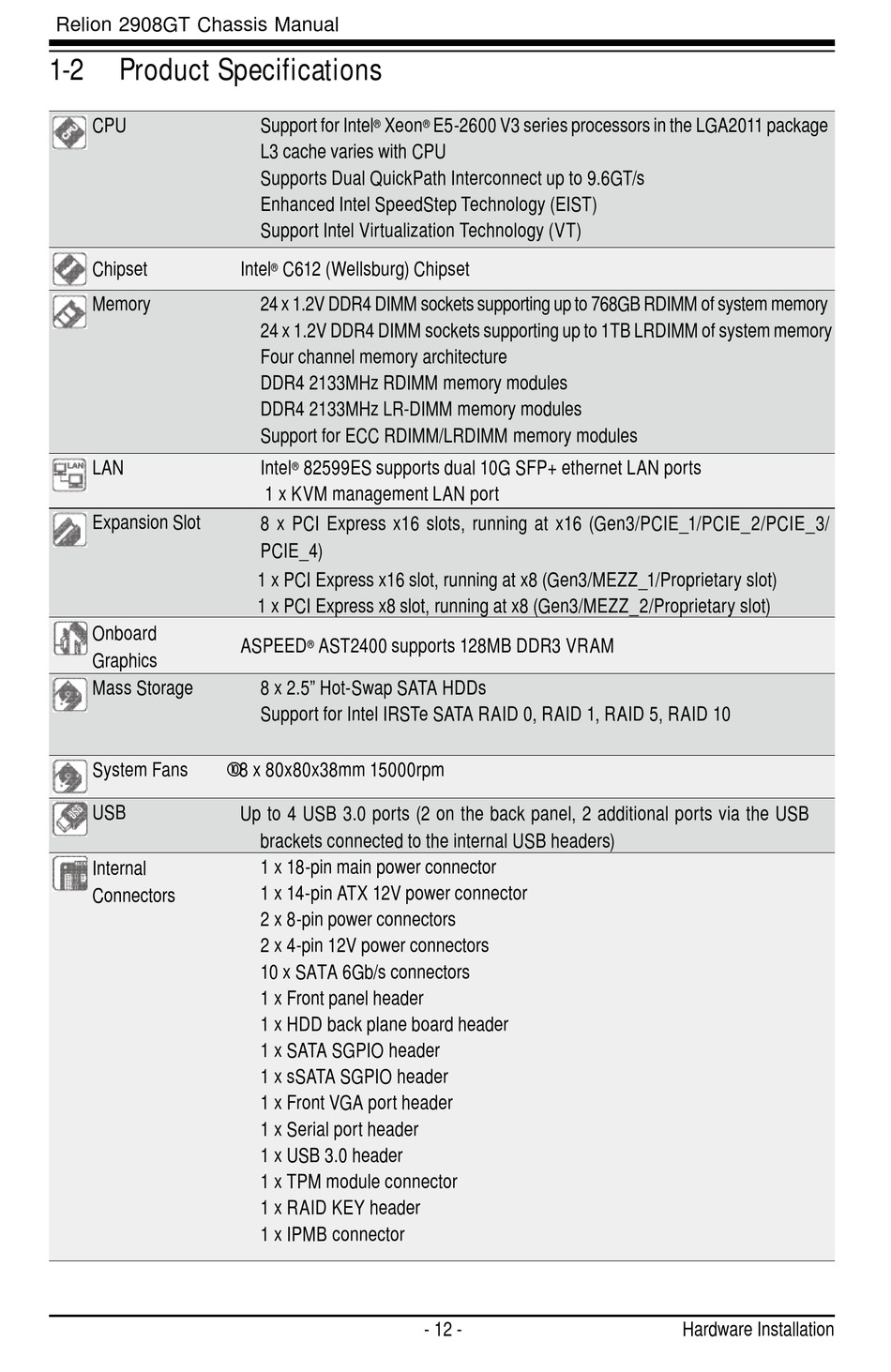

Product Specifications

CPU
Chipset
Memory
LAN
Expansion Slot
Onboard
Graphics
Mass Storage
System Fans
USB
Internal
Connectors
Support for Intel Xeon
®
L3 cache varies with CPU
Supports Dual QuickPath Interconnect up to 9.6GT/s
Enhanced Intel SpeedStep Technology (EIST)
Support Intel Virtualization Technology (VT)
Intel C612 (Wellsburg) Chipset
®
24 x 1.2V DDR4 DIMM sockets supporting up to 768GB RDIMM of system memory
24 x 1.2V DDR4 DIMM sockets supporting up to 1TB LRDIMM of system memory
Four channel memory architecture
DDR4 2133MHz RDIMM memory modules
DDR4 2133MHz LR-DIMM memory modules
Support for ECC RDIMM/LRDIMM memory modules
Intel 82599ES supports dual 10G SFP+ ethernet LAN ports
®
1 x KVM management LAN port
8 x PCI Express x16 slots, running at x16 (Gen3/PCIE_1/PCIE_2/PCIE_3/
PCIE_4)
1 x PCI Express x16 slot, running at x8 (Gen3/MEZZ_1/Proprietary slot)
1 x PCI Express x8 slot, running at x8 (Gen3/MEZZ_2/Proprietary slot)
ASPEED AST2400 supports 128MB DDR3 VRAM
®
8 x 2.5" Hot-Swap SATA HDDs
Support for Intel IRSTe SATA RAID 0, RAID 1, RAID 5, RAID 10
 8 x 80x80x38mm 15000rpm
Up to 4 USB 3.0 ports (2 on the back panel, 2 additional ports via the USB
brackets connected to the internal USB headers)
1 x 18-pin main power connector
1 x 14-pin ATX 12V power connector
2 x 8-pin power connectors
2 x 4-pin 12V power connectors
10 x SATA 6Gb/s connectors
1 x Front panel header
1 x HDD back plane board header
1 x SATA SGPIO header
1 x sSATA SGPIO header
1 x Front VGA port header
1 x Serial port header
1 x USB 3.0 header
1 x TPM module connector
1 x RAID KEY header
1 x IPMB connector
E5-2600 V3 series processors in the LGA2011 package
®
