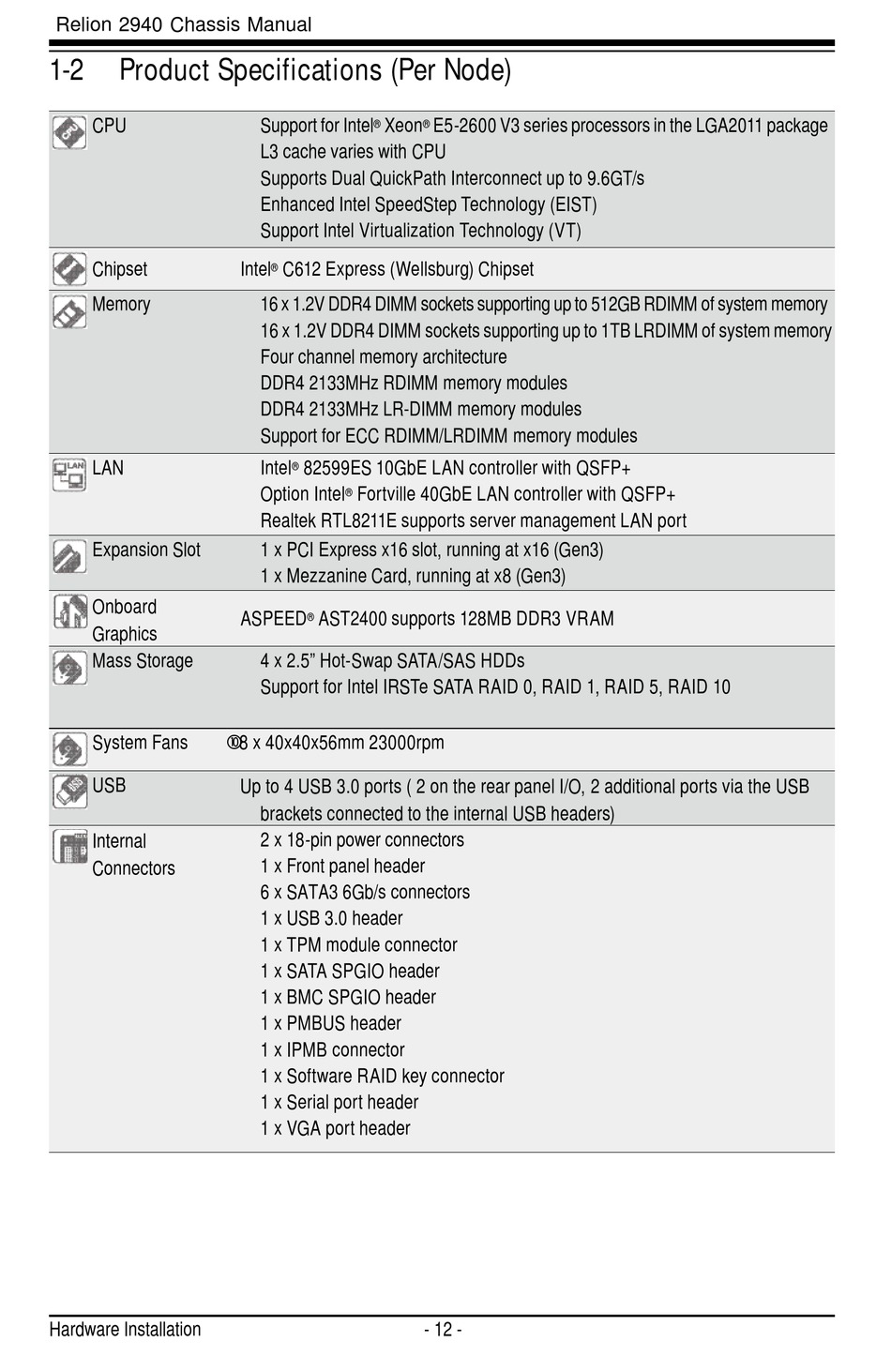

Product Specifications (Per Node)

CPU
Chipset
Memory
LAN
Expansion Slot
Onboard
Graphics
Mass Storage
System Fans
USB
Internal
Connectors
Hardware Installation
Support for Intel Xeon
®
L3 cache varies with CPU
Supports Dual QuickPath Interconnect up to 9.6GT/s
Enhanced Intel SpeedStep Technology (EIST)
Support Intel Virtualization Technology (VT)
Intel C612 Express (Wellsburg) Chipset
®
16 x 1.2V DDR4 DIMM sockets supporting up to 512GB RDIMM of system memory
16 x 1.2V DDR4 DIMM sockets supporting up to 1TB LRDIMM of system memory
Four channel memory architecture
DDR4 2133MHz RDIMM memory modules
DDR4 2133MHz LR-DIMM memory modules
Support for ECC RDIMM/LRDIMM memory modules
Intel 82599ES 10GbE LAN controller with QSFP+
®
Option Intel Fortville 40GbE LAN controller with QSFP+
®
Realtek RTL8211E supports server management LAN port
1 x PCI Express x16 slot, running at x16 (Gen3)
1 x Mezzanine Card, running at x8 (Gen3)
ASPEED AST2400 supports 128MB DDR3 VRAM
®
4 x 2.5" Hot-Swap SATA/SAS HDDs
Support for Intel IRSTe SATA RAID 0, RAID 1, RAID 5, RAID 10
 8 x 40x40x56mm 23000rpm
Up to 4 USB 3.0 ports ( 2 on the rear panel I/O, 2 additional ports via the USB
brackets connected to the internal USB headers)
2 x 18-pin power connectors
1 x Front panel header
6 x SATA3 6Gb/s connectors
1 x USB 3.0 header
1 x TPM module connector
1 x SATA SPGIO header
1 x BMC SPGIO header
1 x PMBUS header
1 x IPMB connector
1 x Software RAID key connector
1 x Serial port header
1 x VGA port header
E5-2600 V3 series processors in the LGA2011 package
®
