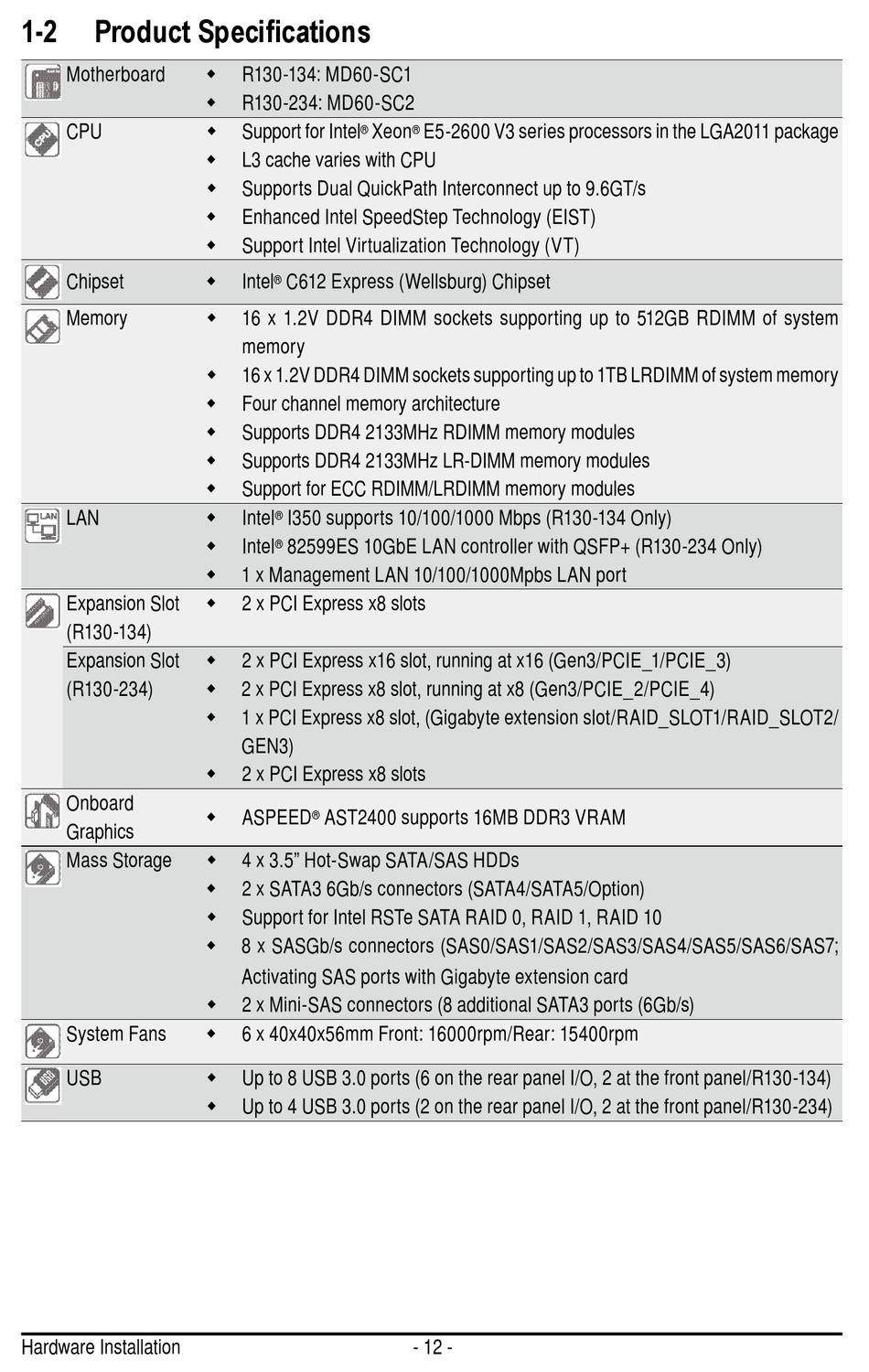

1-2 Product Specifications
Motherboard
CPU
Chipset
Memory
LAN
Expansion Slot
(R130-134)
Expansion Slot
(R130-234)
Onboard
Graphics
Mass Storage
System Fans
USB
Hardware Installation
R130-134: MD60-SC1
Š
R130-234: MD60-SC2
Š
Support for Intel
Š
®
L3 cache varies with CPU
Š
Supports Dual QuickPath Interconnect up to 9.6GT/s
Š
Enhanced Intel SpeedStep Technology (EIST)
Š
Support Intel Virtualization Technology (VT)
Š
Intel C612 Express (Wellsburg) Chipset
Š
®
16 x 1.2V DDR4 DIMM sockets supporting up to 512GB RDIMM of system
Š
memory
16 x 1.2V DDR4 DIMM sockets supporting up to 1TB LRDIMM of system memory
Š
Four channel memory architecture
Š
Supports DDR4 2133MHz RDIMM memory modules
Š
Supports DDR4 2133MHz LR-DIMM memory modules
Š
Support for ECC RDIMM/LRDIMM memory modules
Š
Intel I350 supports 10/100/1000 Mbps (R130-134 Only)
Š
®
Intel 82599ES 10GbE LAN controller with QSFP+ (R130-234 Only)
Š
®
1 x Management LAN 10/100/1000Mpbs LAN port
Š
2 x PCI Express x8 slots
Š
2 x PCI Express x16 slot, running at x16 (Gen3/PCIE_1/PCIE_3)
Š
2 x PCI Express x8 slot, running at x8 (Gen3/PCIE_2/PCIE_4)
Š
1 x PCI Express x8 slot, (Gigabyte extension slot/RAID_SLOT1/RAID_SLOT2/
Š
GEN3)
2 x PCI Express x8 slots
Š
ASPEED AST2400 supports 16MB DDR3 VRAM
Š
®
4 x 3.5" Hot-Swap SATA/SAS HDDs
Š
2 x SATA3 6Gb/s connectors (SATA4/SATA5/Option)
Š
Support for Intel RSTe SATA RAID 0, RAID 1, RAID 10
Š
8 x SASGb/s connectors (SAS0/SAS1/SAS2/SAS3/SAS4/SAS5/SAS6/SAS7;
Š
Activating SAS ports with Gigabyte extension card
2 x Mini-SAS connectors (8 additional SATA3 ports (6Gb/s)
Š
6 x 40x40x56mm Front: 16000rpm/Rear: 15400rpm
Š
Up to 8 USB 3.0 ports (6 on the rear panel I/O, 2 at the front panel/R130-134)
Š
Up to 4 USB 3.0 ports (2 on the rear panel I/O, 2 at the front panel/R130-234)
Š
Xeon E5-2600 V3 series processors in the LGA2011 package
®
