Relion 2908GT Chassis Manual
For GPU2/GPU3/GPU4/GPU5

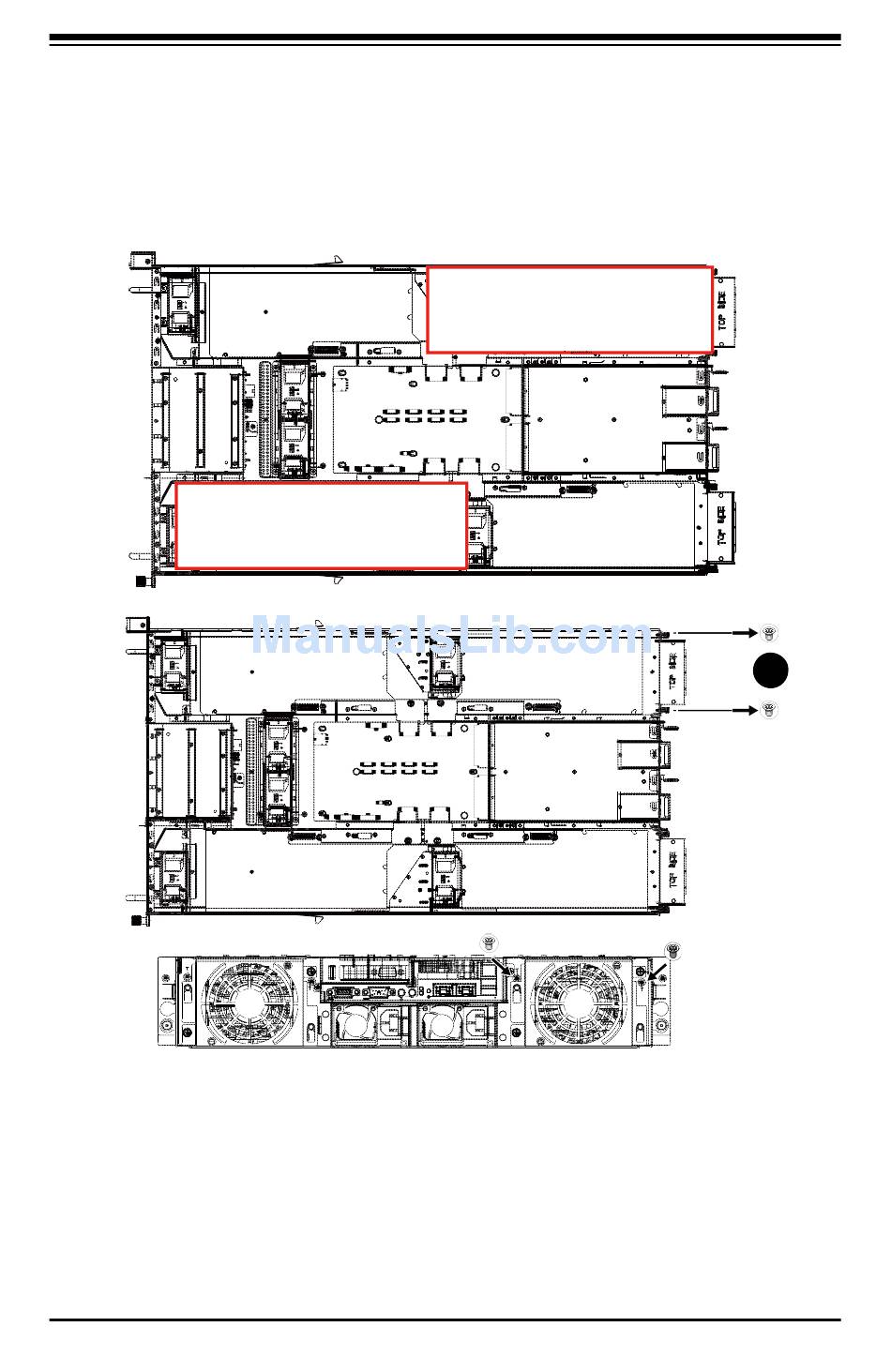

Follow these instructions to install PCI Expansion card:
1. Loosen and remove the screws securing the PCI cage.
2. Pull the two plastic handles to lift up the PCI cage from the system.
3. Insert the card into the selected slot and secure the expansion card with screw.
Make sure that the card is properly seated.
4. Secure the PCI expansion cards in place with screws.
Front
Top: GPU Card #3 (Slot 2)
Bottom: GPU Card #2 (Slot 1)
Front
Top: GPU Card #5 (Slot 2)
Bottom: GPU Card #4 (Slot 1)
- 25 -
Rear
1
Rear
Hardware Installation
