Relion 2908GT Chassis Manual

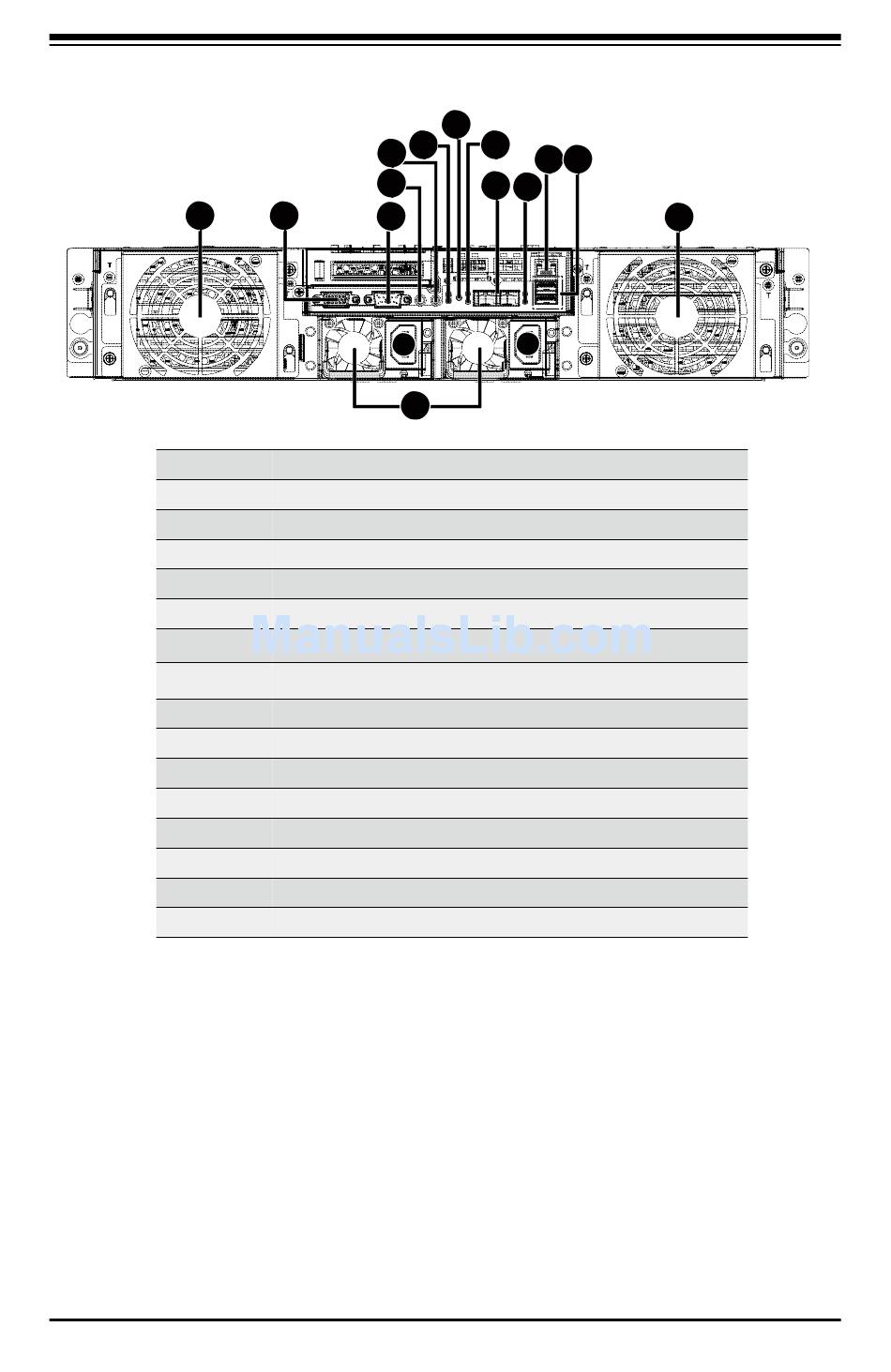

3-2 Rear View
1
No.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
Hardware Installation
6
5
4
2 3
14
15
Decription
System fan (GPU12E_FAN)
VGA port
Serial port
Power button/LED
ID switch button
Reset button (top)/NMI button (buttom)
System status LED
LAN1 Active/Link (top)/Speed (buttom)LEDs
Dual 10G SFP+ LAN port
LAN2 Active/Link (top)/Speed (buttom)LEDs
10/100/1000 Server management LAN port
USB 3.0 ports
System fan (GPU56E_FAN)
Power supply module cord socket
Power supply fan
- 39 -
