8.2. Adjust the lower portafilter support in models with
Dynamometric press system DYN
1.

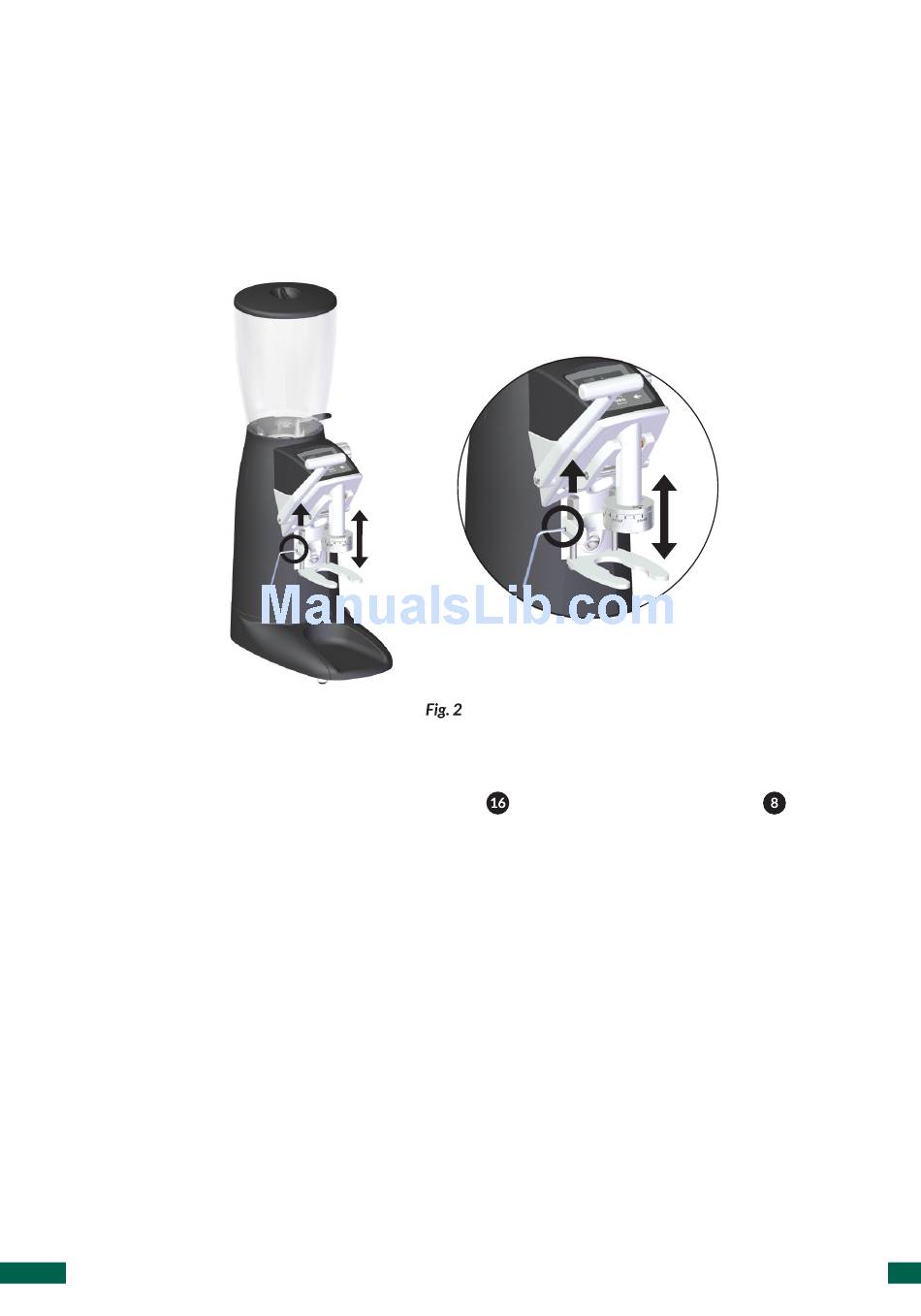

Remove screw caps (Fig. 2) using a flat headed screw driver.
2. Adjust the mobile fork as described in section 8.1.
3. Replace and tighten the screw caps (Fig. 2).
8.3. Grind point adjustment
Place portafilter in upper portafilter holder (
ground coffee begins to dispense from exit chute.
To adjust the grind point, simply turn the grind adjustment knob. A clockwise
adjustment will render a finer grind and a counter clockwise adjustment will render
a more coarse grind.
CAUTION: Changing grind settings must be done when the grinder is on and burrs are in
motion. Not doing this suposes that the burrs will gunk up and cleaning will be required.
10
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 21/07/2015 | K06315
) and push the refill button ( ) until
