F8-F10
COFFEE GRINDER
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Compak F8

Summary of Contents for Compak F8

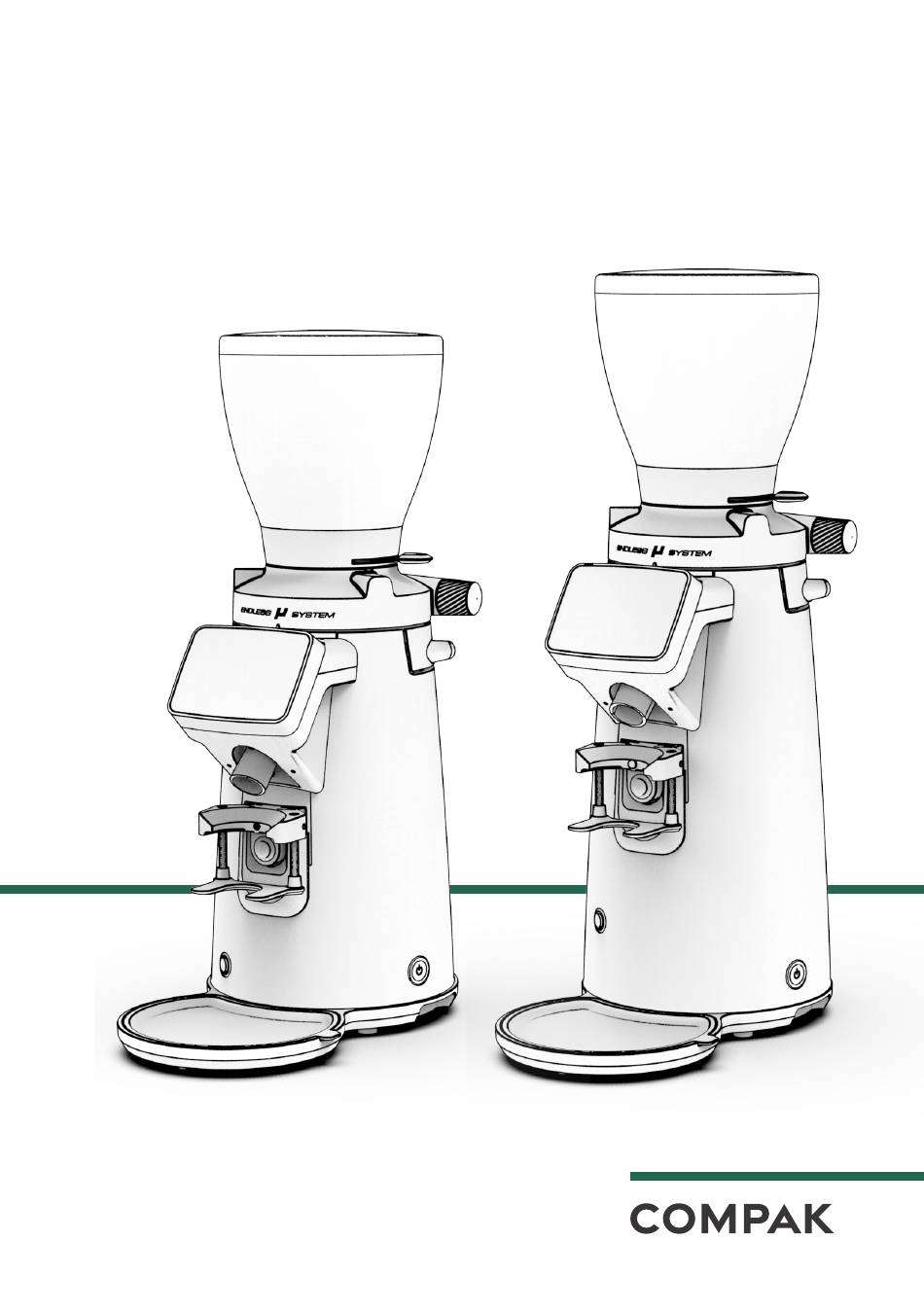

  • Page 1 F8-F10 COFFEE GRINDER USER MANUAL...
  • Page 2 K09680H00 | PROC-CAL/002/03 USER MANUAL | V. 15/04/2024...

  • Page 3: Table Of Contents

    CONTENTS F8-F10 COFFEE GRINDER SAFETY DESCRIPTION INSTRUCTIONS IDENTIFICATION TECHNICAL CHARACTERISTICS EXTERNAL COMPONENTS INSTALLATION ADJUSTMENT OPERATION SETTINGS CLEANING MAINTENANCE DECLARATION OF CONFORMITY K09680H00 | PROC-CAL/002/03 USER MANUAL | V. 15/04/2024...

  • Page 4: Safety

    SAFETY ADDITIONAL SAFETY MEASURES BUILT-IN TO OUR GRINDERS: Special screw to keep the hopper fixed. • Safety current cut-off by microswitch to access • the grinding unit This coffee grinder Children should not should only be used play with the device. for the function for which it was designed: Cleaning and...
  • Page 5 SAFETY USERS SHOULD PAY SPECIAL ATTENTION TO, AND SCRUPULOUSLY OBEY THE FOLLOWING SAFETY INSTRUCTIONS If it is necessary to access the interior, where the electrical components are located, go to the nearest technical Any other use will be service. considered improper and dangerous.

  • Page 6: Description

    DESCRIPTION INSTRUCTIONS 3.1. This manual is designed provide necessary information to correctly install, use and maintain the grinder, as well as to highlight precautions for users to keep in mind. To ensure the best operation of the coffee grinder, please follow the instructions as outlined in this manual.

  • Page 7: Identification

    IDENTIFICATION TECH. CHARACTERISTICS 5.1. SCOPE technical characteristics plate is indelibly marked with the The coffee grinders are intended for following information: commercial applications where ground coffee must be used, or in small shops selling coffee, but not for continuous mass production of food.
  • Page 8 TECH. CHARACTERISTICS Model Hopper capacity Net weight Height / Width / Depth 1,25 3,08 15,36 33,86 617 x 230 x 385 24,3 x 9,05 x 15,15 1,25 3,08 19,50 42,99 677 x 230 x 385 26,65 x 9,05 x 15,15 * Production and durability based on a medium roast coffee and grinding point for Espresso.

  • Page 9: External Components

    EXTERNAL COMPONENTS F8-F10 Hopper security screw Hopper Coffee bean hopper Hopper shutter Grind regulator knob Lock Load System TFT screen Portafilter position screw Exit chute Portafilter Dose button adjustment screw Portafilter holder Switch ON-OFF Refill button Coffee collection tray K09680H00 | PROC-CAL/002/03 USER MANUAL | V. 15/04/2024...

  • Page 10: Installation

    INSTALLATION 7.3. WHERE TO USE IT 7.1. LEGAL NOTICES The appliance must be installed on a The installer must read this instruction solid and flat surface. manual carefully before installing the machine. The minimum size for the working space, to ensure you installation get the best performance from device must be carried out...

  • Page 11: Adjustment

    ADJUSTMENT 8.1. GRINDER SET UP Remove the hopper lid ( ), fill the hopper Place the hopper ( ) on the grind regulator with coffee ( ), and replace the lid on the ) and make sure the bean trap ( ) is in hopper ( ) (Fig.
  • Page 12 ADJUSTMENT 8.2. ADJUSTING THE LOWER 8.3. GRIND ADJUSTMENT SYSTEM PORTAFILTER SUPPORT Everytime you turn the grind regulator knob ) the display will show the scale mesured In order to ensure the proper distribution in microns. Turning the knob clockwise will of ground coffee in the portafilter, while result in a coarser grind;...

  • Page 13: Operation

    AUTOMATIC / OFF / MANUAL when changing finer or ON /OFF. grinding, with the motor running, to prevent coffee from building F8 - F10 between burrs blocking the grinder. The equipment’s electronic functions are activated NOTE: If the coffee throughput...
  • Page 14 OPERATION 9.5. DETECTION MODE Once the grind cycle is initiated, it can be paused by pressing the lower activation button ( ). In this operating mode, the grinder detects the presence of the portafilter through The cycle will pause, and will complete the the movement of a fitted Tag.

  • Page 15: Settings

    Home menu and the dose time menu will be accessed. DOSE 04.00 02.00 SEC DOSE 1 DOSE 2 04.00 SEC ACTIVE DOSE 3 GRIND SIZE F8 Ø83mm 154μm SEL ECT 06.00 SEC DOSE 3 K09680H00 | PROC-CAL/002/03 USER MANUAL | V. 15/04/2024...
  • Page 16 ) until the desired time or coffee quantity is reached. To save the configured dose, press OK. DOSE 1 GRINDING TIME GRIND SIZE F8 Ø83mm 154μm SEL ECT SECONDS 10.3.2. There are 5 options, use the horizontal scroll to navigate between: Mode, Statistics, Recipes and Settings.
  • Page 17 SETTINGS 10.4. MODE MENU 10.5. STATISTICS 10.4.1. Press in the configuration Menu. 10.5.1. Press MENU MENU MODE STATISTICS RECIPES MODE STATISTICS RECIPES 10.4.2 There are three different options to operate the grinder, Push, Detection 10.5.2. The number of independent doses or Touch.
  • Page 18 SETTINGS 10.5.3. Relative Statistics can be reset by Model KG * KG Red Speed * pressing the Reset Relative button and then entering the Password. 5.000 1.200 8.000 COFFEE STATISTICS * Production and durability based on a medium roast coffee and Relatives grinding point for Espresso.
  • Page 19 SETTINGS RECIPES GRINDER SETTINGS GRINDER SETTINGS DOSE GRIND PAUSE PASSWORD LANGUAGE SCREENSAVER RECIPES In this menu, you can set a new Burr Zero Point or configure the Espresso recipe by GRINDER SETTINGS pressing the icon GRIND SIZE BURR ZERO POINT 0 µm SOUNDS DOSE ALARM...
  • Page 20 SETTINGS 10.9. LANGUAGE If the Password is active, enter the Default one: 0000 10.9.1. Press PASSWORD GRINDER SETTINGS GRINDER SETTINGS 0 1 2 3 4 7 8 9 PASSWORD LANGUAGE SCREENSAVER 10.8.2. Activate or deactivate the Password by pressing . To modify the Password press 10.9.2.
  • Page 21 SETTINGS 10.10. SCREENSAVER 10.11. SOUNDS 10.10.1. Press 10.11.1. Press GRINDER SETTINGS GRINDER SETTINGS GRINDER SETTINGS PASSWORD LANGUAGE SCREENSAVER SOUNDS DOSE ALARM DATE/HOUR 10.10.2. 10.11.2. Activate or deactivate the sound by Activate deactivate Screensaver by pressing . To modify the pressing the button activation time press SOUNDS SCREENSAVER...
  • Page 22 SETTINGS 10.12.5. To delete the stored data of the Burr ALARMS change alarm, i.e. once replaced the current set of Burrs, scroll vertically, press the Reset Alarm button and then enter the Password. BURRS CHANGE ALARM ALARMS ADJUST WEIGHT DOSE 2 GRS ADJUST WEIGHT DOSE 2 GRS SET UP ALARM SET UP ALARM...
  • Page 23 SETTINGS 10.13.2. Edit both the time, the date, or the 10.13.4. Edit the date by pressing way to show the date between DD/MM/YY access the date setting screen. Change the or MM/DD/YY. days, months, and years by sliding up or down until the desired time is obtained and DATE &...

  • Page 24: Cleaning

    • Always turn the main power switch to grounds and oils. the off position ( In order to clean the coffee outlet in F8 • Unplug the machine from the power models, use the #3 Hex Allen key supplied to source.
  • Page 25 CLEANING 11.4. CLEANING THE GRIND CHAMBER obstruction in the grind chamber. Removal of the grind assembly should It is recommended to clean the grind chamber be performed by a qualified service monthly using a cleaner. This process helps technician. eliminate any smelly residues from the coffee remnants, which can have a negative impact on the quality of the brewed coffee.

  • Page 26: Maintenance

    MAINTENANCE 12.1. GENERAL WARNING 12.3. GRINDING GROUP MAINTENANCE To perform grind chamber maintenance Before performing any type of maintenance, please observe the following steps: you should: • Always turn OFF the main power switch to the off position ( 12.3.1. Turn off the grinder by making sure ) is on the OFF the main power switch ( •...
  • Page 27 The curtain or metal grid ensures consistency the grinding cavity (Fig. 5). in the dosage and reduces static electricity. F8, are replaced using the instruction from 12.4.1., while F10 is replaced using the instructions from 12.4.4. 12.4.1. After the point 12.3.4. use a #2 Hex Allen key to untighten the screw enough to can release the knob from the axis (Fig.
  • Page 28 MAINTENANCE 12.4.2. Using a #2.5 mm hex Allen key, loosen 12.4.4. After point 11.3.2. use a #2 Hex Allen the four screws securing the aluminum cover key to untighten the screws that hold the to the top burr support (Fig. 10). Carefully metal grid to the coffee exit chute ( ).

  • Page 29: Declaration Of Conformity

    Compak Coffee Grinders, s.a. Molí Barri, Parcela B - Pol. Ind. Can Barri - 08415 Bigues i Riells - Barcelona - Spain Ph. 34 93 703 13 00 - www.compak.es - info@compak.es K09680H00 | PROC-CAL/002/03 USER MANUAL | V. 15/04/2024...
  • Page 30 K09680H00 | PROC-CAL/002/03 USER MANUAL | V. 15/04/2024...
  • Page 31 K09680H00 | PROC-CAL/002/03 USER MANUAL | V. 15/04/2024...
  • Page 32 www.fsc.org USER MANUAL K09680H00 | PROC-CAL/002/03 USER MANUAL | V. 15/04/2024...

This manual is also suitable for:

F10
