ANTAIRA FCN-3112 Series Quick Installation Manual

Antaira Technologies
FCN-3112 Series
1010/100/1000TX to 1000SX SNMP Managed Media Converter
Quick Installation Guide
Version 1.0
(October 2018)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – FCN-3112 Series media converter
⚫ 1 – 5 volt power supply
⚫ 1 – CD
Front Panel Layout

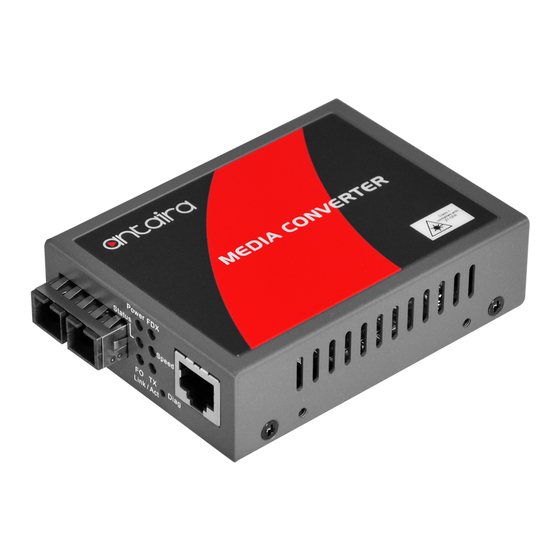

Figure 1. Media Converter Dual-Fiber Front Panel
Figure 2. Media Converter Single-Fiber & SFP Front Panel
Back Panel View
Product Overview
The media converter series is designed to meet the increasing
needs for Gigabit network deployment and is able to extend a
copper-based Gigabit network via fiber cable to a maximum
distance of up to 80KM.
The media converter series is fully compliant with IEEE 802.3,
802.3u, 802.3ab & 802.3z standards. It can be installed into a
Converter RACK. The installation and operation procedures are
simple and straightforward. Operation status can be locally
monitored through a set of diagnostic LED indicators located in
the front panel.
-10/100/1000Base-T to 1000BASE-X Converter
-Standard: IEEE 802.3, 802.3u, 802.3ab, and 802.3z
-Interface: 1 x RJ-45 LAN connector
1 x SC connector or 1 x SFP slot
1 x Diag. button
-Auto-Negotiation in TX port
-MDI/MDIX Auto-Crossover supported
-LED: Power, FDX, Status, Speed, FO Link/Act, TX Link/Act
-Plug-and-Play installation
-Support Link Alarm
-Support Jumbo Frame 9K bytes (under 10,100,1000Mbps)
-Support Selectable ISP Ethernet Tag Type
-Q-in-Q Double Tag configuration
-Support DHCP Client
-Support SNMP / Web Managed interface
-Support SNMP v1 and v2c
-Support HTTP Firmware Upgrade
-Support Power Down Trap Management
LED Indicators
LED Color Description
On
Power is active
Power Green
Off
Power is inactive
On
Copper connection is in full duplex
FDX Green
Off
Copper connection is not in full duplex
Lit when TP or FO link is down. Blink when
Amber
diagnostic testing has failed.
Status Amber/Green
Lit when TP and FO link is up. Blink when
Green
Loopback test is being performed.
Amber
Lit when TP works in 1000M.
Speed Amber/Green
Lit when TP works in 100M. Not lit when TP works
Green
in 10M or is not linked.
Blink when fiber or copper link is down in Link
Amber
Alarm Enabled mode
FO (Link/Act) Amber/Green
Lit when fiber cable connection with the remote
Green
device is good. Blink when FO traffic is present
Blink when fiber or copper link is down in Link
Amber
Alarm enabled mode
TX (Link Act) Amber/Green
Lit when TX cable connection with the remote
Green
device is good. Blink when TP traffic is present
DIP Switch Settings
Pin NO. & Button Function
1 TX Auto-Negotiation
2 Manual TX Data Rate 10M/100M
3 Manual TX Data Rate 1000M
4 Flow Control
5 Fiber Auto-Negotiation
6 Reserved
7 Link Alarm
8 TP Configuration
Press once for Loopback test. Press for 10 seconds to restore factory default
Diag. Button
settings.
Off On
Disable Enable
10M 100M
10M or 100M 1000M
Disable Enable
Force Enable
Always off!!!
Disable Enable
From S/W From DIP
