ANTAIRA FCU-3102SFP-SFP-DR User Manual

Trademarks
Contents subject to revision without prior notice.
All other trademarks remain the property of their owners.
Copyright Statement
This publication may not be reproduced as a whole or in
part, in any way whatsoever unless prior consent has been
obtained from the owner.
FCC Warning
This converter has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These standards are designed to provide
reasonable protection against harmful interference when
this device is operated in a commercial environment. This
device generates, uses, and can radiate radio frequency
energy and may cause harmful interference to radio
communications unless installed in accordance with this
User's Guide. Operation of this device in a residential area
is likely to cause harmful interference which will make the
user responsible for the appropriate remedial action at his /
her own expense.
CE Mark Warning
This is a Class A product. In a domestic environment this
product may cause radio interference in which case the
user will need to consider adequate preventative methods.

1. Checklist

The package should contain the following items:
- Media Converter
- AC-DC Power Adapter
- User's Guide
Please notify your sales representative immediately if
any item is missing or damaged.

2. Overview

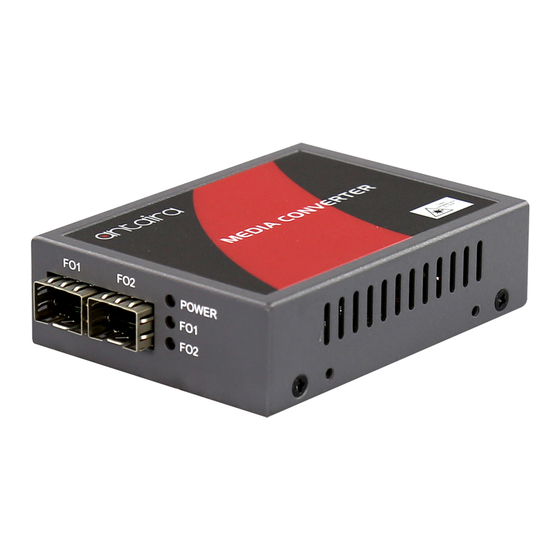

This Media Converter is designed to meet the
massive needs for Gigabit network deployment. It is
fully compliant with 802.3u and 802.3z standards. It
can be installed into a Converter RACK. The
installation and operation procedures are simple and
straightforward. Operation status can be locally
monitored through a set of Diagnostic LED indicators
located in the front panel.
Major Features:
- LED indicators for link and power status
- 9K bytes Jumbo Frame
- Link Alarm
- 100Mbps to 100Mbps / 1000Mbps to 1000Mbps
dual rate transmission
- Full compatibility with Universal Media Converter
RACK

3. Installation

- Attach single mode fiber cable from one port on
the converter to the corresponding device.
- Attach multi-mode fiber cable from the other port
on the converter to the corresponding device.
- Be cautious that the transmission speed of two
fiber ports must be matched, either 100M to 100M
or 1000M to 1000M.
- Connect the power adapter to the converter and
check that the Power LED lights up. The FO1 and
FO2 LEDs will light up when both fiber connections
are satisfactory.

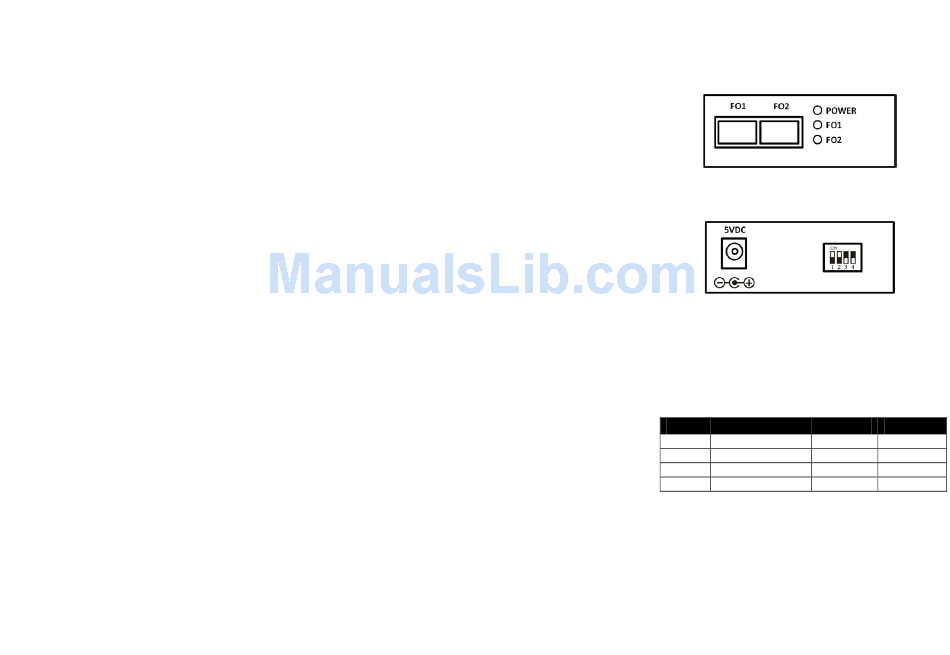

Fig 1. Front Panel
Fig 2. Rear Panel

4. DIP SWITCH Setting

The default setting for PIN 1 and 2 is ON; PIN 3 and 4
are OFF.
Pin No. Function OFF
1 Speed 100Mbps
2 F/O mode Force
3 Link Alarm Disable
4 Reserved
NOTE:
The setting of F/O mode is effective only when the
speed is set to 1000Mbps.
ON
1000Mbps
Auto
Enable
- -
