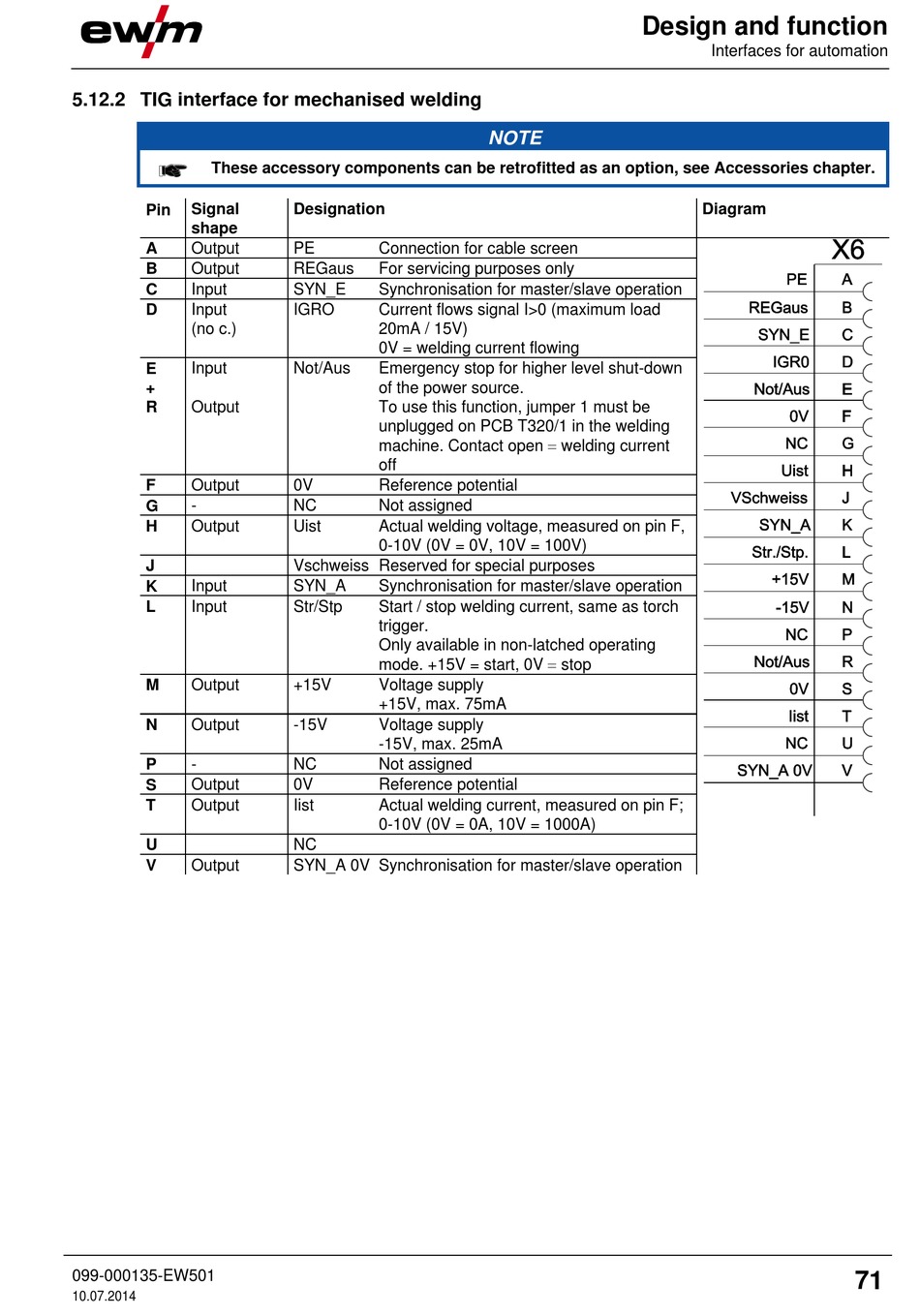

5.12.2 TIG interface for mechanised welding

These accessory components can be retrofitted as an option, see Accessories chapter.
Signal
Pin
shape
A Output
B Output
C Input
D Input
(no c.)
E Input
+
R Output
F Output
-
G
H Output
J
K Input
L Input
M Output
N Output
P -
S Output
T Output
U
V Output
099-000135-EW501
10.07.2014
Designation
PE Connection for cable screen
REGaus For servicing purposes only
SYN_E Synchronisation for master/slave operation
IGRO Current flows signal I>0 (maximum load
20mA / 15V)
0V = welding current flowing
Not/Aus Emergency stop for higher level shut-down
of the power source.
To use this function, jumper 1 must be
unplugged on PCB T320/1 in the welding
machine. Contact open  welding current
off
0V Reference potential
NC Not assigned
Uist Actual welding voltage, measured on pin F,
0-10V (0V = 0V, 10V = 100V)
Vschweiss Reserved for special purposes
SYN_A Synchronisation for master/slave operation
Str/Stp Start / stop welding current, same as torch
trigger.
Only available in non-latched operating
mode. +15V = start, 0V  stop
+15V Voltage supply
+15V, max. 75mA
-15V Voltage supply
-15V, max. 25mA
NC Not assigned
0V Reference potential
Iist Actual welding current, measured on pin F;
0-10V (0V = 0A, 10V = 1000A)
NC
SYN_A 0V Synchronisation for master/slave operation
