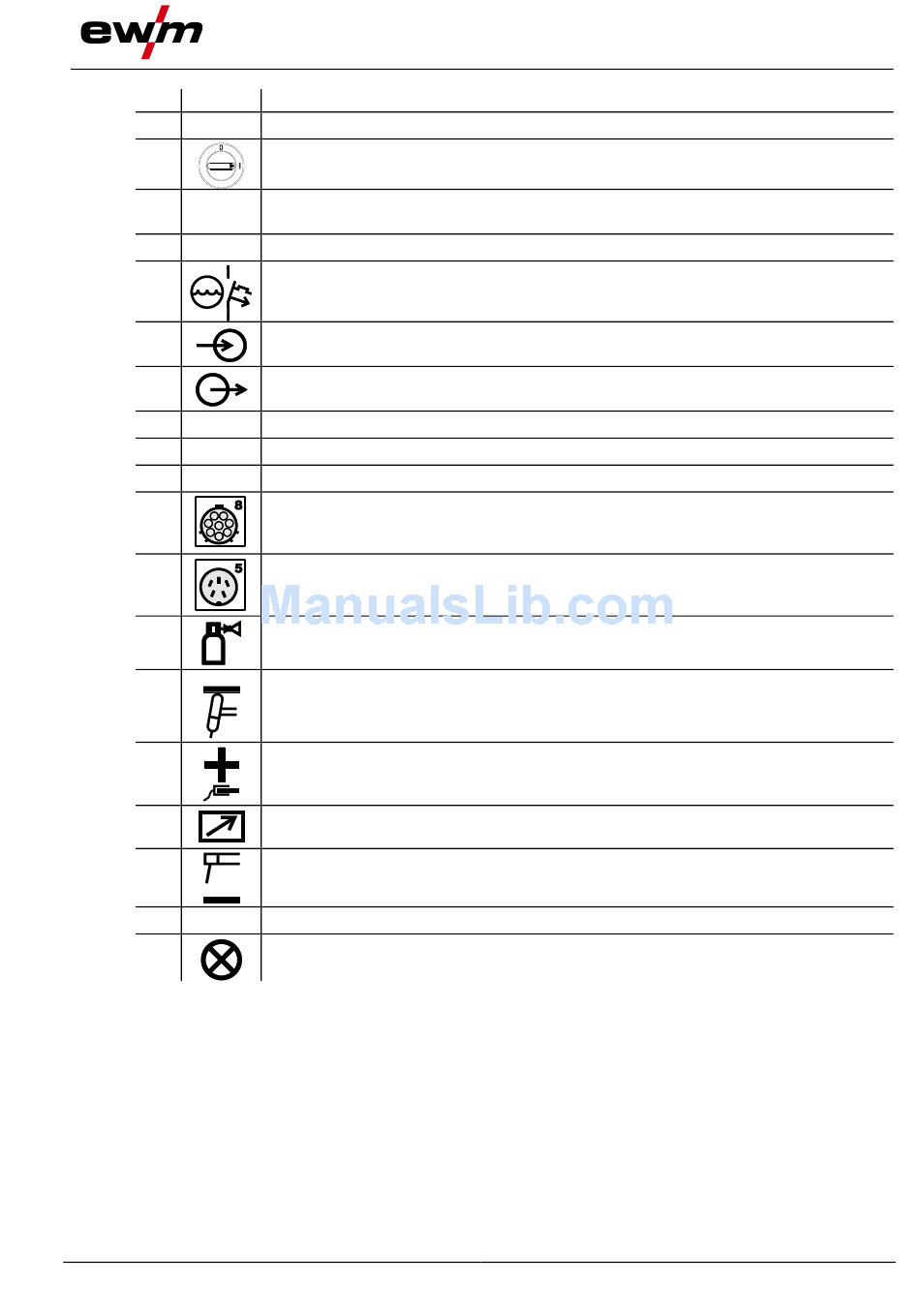

Machine description – quick overview
Description 0
Lifting lug
Main switch, machine on/off
Machine control
See Machine control – operating elements chapter
Carrying handle
Automatic cut-out of coolant pump key button
press to reset a triggered fuse
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply
Wheels, guide castors
Coolant tank
Coolant tank cap
Connection socket, 8-pole
TIG Up/Down or potentiometer torch control lead
Connection socket, 5-pole
Standard TIG torch control lead
G¼" connecting nipple, welding current "-" (with DC- polarity)
Shielding gas connection (with yellow insulating cap) for TIG welding torch
Connection socket, welding current "-" (with DC- polarity)
connection TIG welding torch
Connection socket, welding current "+" (with DC- polarity)
Connection for workpiece lead
Connection socket, 19-pole
Remote control connection
Connection socket, welding current "-" (with DC- polarity)
connection for Electrode holder
Cooling air inlet
Operating state signal lamp
Lights up when the machine is ready for use.
