5.8.7.3

Latched mode

Step 1
Press torch trigger 1, the gas pre-flow time elapses.
HF ignition pulses jump from the electrode to the workpiece, the arc ignites.
Welding current flows and immediately assumes the ignition current value set (search arc at minimum
setting). HF is switched off.
Step 2
Release torch trigger 1.
The welding current increases with the set up-slope time to the main current AMP.
Switching from main current AMP to secondary current AMP%:
Press torch trigger 2 or
Tap torch trigger 1
The slope times can be set (see chapter "Advanced settings", section "Setting slope times for
secondary current AMP% or pulse edges".
Step 3
Press torch trigger 1.
The main current drops with the set down-slope time to the end-crater current I
Step 4
Release torch trigger 1, the arc extinguishes.
The set gas post-flow time begins.
Immediate termination of the welding procedure without down-slope and end-crater current:
Briefly press the 1st torch trigger (3rd and 4th step).
The current drops to zero and the gas post-flow time begins.
When the foot-operated remote control RTF is connected, the machine switches
automatically to non-latched operation.
The up- and down-slopes are switched off.
To use the alternative welding start (tapping start) a double-digit torch mode (11-x) has
to be set at the welding machine control. The number of torch modes available depends
on the machine type. For single-digit torch modes (1-x) this function is disabled.
099-000135-EW501
10.07.2014
Design and function

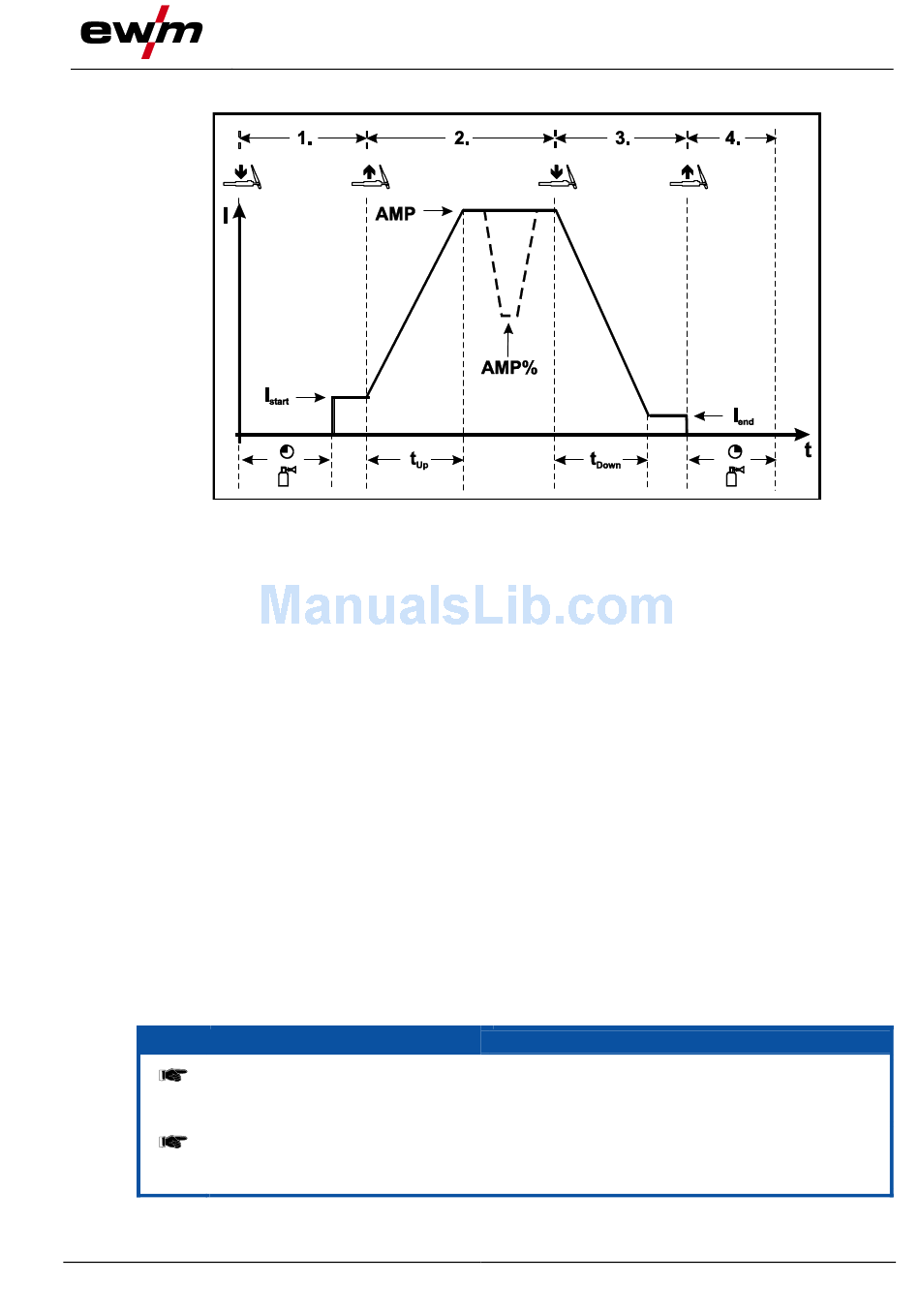

Figure 5-14
NOTE
TIG welding
(minimum current).
end
45
