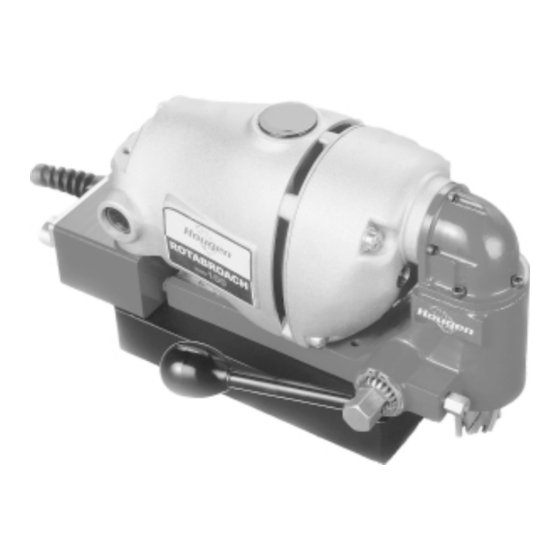

PORTABLE MAGNETIC DRILLS
OPERATOR’S MANUAL
100
HMD
FOR USE WITH "17,000-SERIES" ROTABROACH CUTTERS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rotabroach HMD100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hougen Rotabroach HMD100

  • Page 1 ® ® PORTABLE MAGNETIC DRILLS OPERATOR’S MANUAL FOR USE WITH “17,000-SERIES” ROTABROACH CUTTERS...
  • Page 2: Contents Checklist

    Safety Strap 17059 Stick Lubricant 11746 Cutting Fluid Pint 11741 Feed Handle/knob 17071 (2) Operator’s Manual 17061 Warranty/Registration card* * Please take the time NOW to fill out your Warranty/Registration card and return it to Hougen Mfg. within 10 days.
  • Page 3: Important Safety Instructions

    Important Safety Instructions 1. Read All Instructions 4. Extension Cords Use only 3-wire extension cords that have 3-prong 2. Grounding Instructions grounding type plugs and 3-pole receptacles that This tool should be grounded while in use to protect the accept the tool's plug. Replace or repair damaged operator from electric shock.
  • Page 4 Keep handles dry, clean, and free from oil and 24. Non-Conforming Cutting Tools grease. Your Magnetic Drill is designed to use Hougen Rotabroach Cutters. The use of drilling tools having 18. Disconnect Tools different shank styles is not recommended as they may...
  • Page 5 Review of Controls Magnet On/Off Motor On/Off Circuit Breaker Feed Handle Feed Lock/Release (pull & turn) “17,000-Series” Cutter Installation 1. Disconnect machine from power source. 2. Insert pilot into cutter. 3. Align flat on shank with pin in spindle. 4. Insert cutter into spindle. 5.
  • Page 6: Operating Instructions

    Operating Instructions Place drill on material and locate for drilling hole. CAUTION: Do not over-feed cutter. Excessive feed pressure may cause the magnet to break free from Press magnet switch to “ON” material. Thread safety strap through opening between 17,000 FEATURES AND DESCRIPTION: motor and drill housing.
  • Page 7 Control Panel /Hookup Diagram...
  • Page 8 HMD100 Drill Parts Diagram...
  • Page 9 17031 FACEPLATE 17032 SCREW “17,000” Series Cutter Kit - 17034 POWER CORD ASSEMBLY Hougen part number 17001” 17035 SWITCH-MOMENTARY Kit includes all 10 cutters listed plus 2 17037 CONTROL PANEL ASSEMBLY pilots all in a handy case. Contact your 17039...
  • Page 10 Motor Diagram and Parts List Item Item Part No. Description Qty. Part No. Description Qty. BD-144266-00 Field Case 10995 Brush Assy. (pair) BD-445786-31 Armature BD-376 Set Screw BD-400322-71 Field BD-400718 Nylon Ball BD-12158 Screw & Washer BD-46210 Brush Holder Plug BD-133410 BD-61208-03 Brush Holder...
  • Page 11: Commercial / Industrial Limited Warranty

    No other expressed warranty is given or authorized. Hougen Manufac- turing, Inc. disclaims any implied warranty of MERCHANTABILITY or FITNESS for any period beyond the expressed warranty and shall not be liable for incidental or consequential damages.
  • Page 12: Factory Authorized Warranty Repair Centers

    3715 Harrisburg Houston, TX 77003 (713) 222-2251 ® Hougen Manufacturing, Inc. P.O. Box 2005 • Flint, MI 48501-2005 3001 Hougen Drive • Swartz Creek, MI 48473 Phone (810) 635-7111 • FAX (810) 635-8277 Email: hougenco@tir.com Online: www.hougen.com Form 17061 7/2001...
