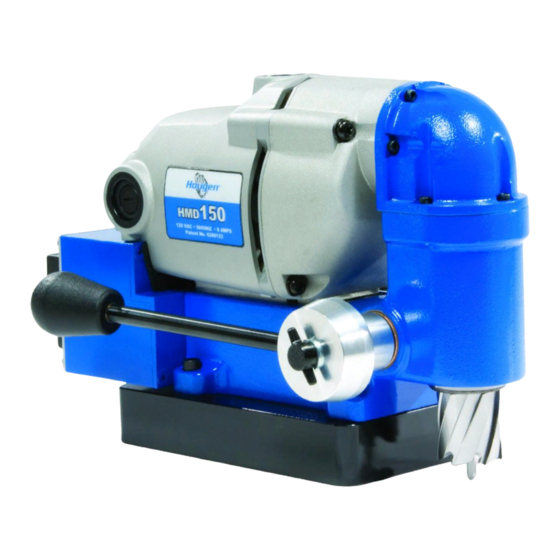

- Page 1 MODEL HMD150 SERIES PORTABLE MAGNETIC DRILLS OPERATOR’S MANUAL COVERS DRILL PART NUMBERS 0150201, 0150301 & 0150401 FOR USE WITH ROTALOC PLUS™ CUTTERS...
-
Page 2: Welcome To Hougen
Hougen. Your new Hougen Magnet Base Drill now incorporates a Label for the Drill Part Number and Serial Number. Below gives a explanation of the Part Number and the location of the Label is shown on the Drill Breakdown Diagram. -
Page 3: Important Safety Instructions
Important Safety Instructions WARNING: Read and understand all instructions. Failure to follow all instructions listed below, may result in electrical shock, fire and/or serious personal injury. Work Area Use safety equipment. Always wear eye production. Dust mask, non-skid safety shoes, hard hat, or hearing protection Keep your work area clean and well lit. -
Page 4: Safety Switch Indicator Light
Arbor and cutter should never be used as a hand- hold. Keep hands and clothing away from all moving parts. Do not use Hougen Cutters where ejected slug For any questions please contact Hougen Manufacturing’s might cause injury (slug ejected at end of cut). -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS 1. Place drill on material (at least 3/8" thick) and 6. Feed Cutter slowly into workpiece. Only after cutting locate for drilling hole. path is established to a depth of about 1/16" can additional force be applied to feed handles. 2. -
Page 6: Safety Switch
SAFETY SWITCH NOTE: The Safety Switch located in the base of the unit shuts off the motor when the unit lifts. The magnet will stay engaged until you turn off the magnet. It is important to keep this area clean and free from chips. Periodically check this switch for proper function and if for some reason it is not working properly, send the unit to an authorized repair center for service. - Page 7 CONTROL PANEL / HOOKUP DIAGRAM 05917 Control Panel Assembly - 230v, 0150201 & 0150401 (includes the 05912 Faceplate Assy.and 05827 Circuit Board) (Note 2) 05918 Control Panel Assembly - 230v Type I Plug, 0150301 (includes the 05913 Faceplate Assy. and 05827 Circuit Board) 05912 Faceplate Assembly 0150201 &...
- Page 8 DRILL PARTS BREAKDOWN 0150201 HMD150 230v, 0150301 0150401 HMD150 TYPE I 230v & HMD150 230v No Plug 10a. 10b. 10c. 10a. 1188...
- Page 9 HMD150 PARTS LIST Item # Part # Description Item# Part # Description 07176 Motor Assy 230v 17285 Plunger Assembly 17502 Left Hand Miter Gear 17476 BHC Torx Screw #6-32 X 1-1/4 17002 SHC #6-32 X 1/2 90052 Lock Washer #6 ext. tooth 17510 Gear Cap Assembly 04885...
- Page 10 07176 230v MOTOR DIAGRAM and PARTS LIST 30 opposite side Item Part # Description Item Part # Description 17607 1st Inter. Gear Assy 17621 Carbon Brush 17608 2nd Inter. Gear Assy 17622 Brush Cap 17603 Ball Bearing 17632 Paper Washer 17626 Retaining Ring 17600...
-
Page 11: Commercial / Industrial Limited Warranty
Commercial / Industrial Limited Warranty Hougen Manufacturing, Incorporated warrants its Portable Magnetic Drills for one (1) year and its Electro-hydraulic Hole Punchers and other products for ninety (90) days from date of purchase against defects due to faulty material or workmanship and will repair or replace (at its option) without charge any items returned. This warranty is void if the item has been damaged by accident or unreasonable use, neglect, improper service, or other causes not arising out of defects in material or workmanship.
