Summary of Contents for Hougen HMD115

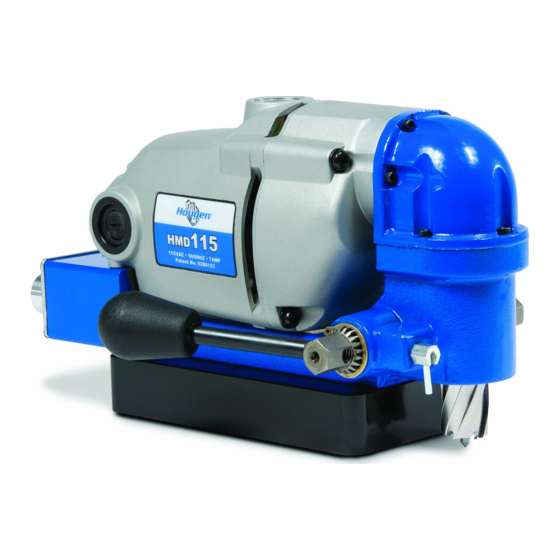

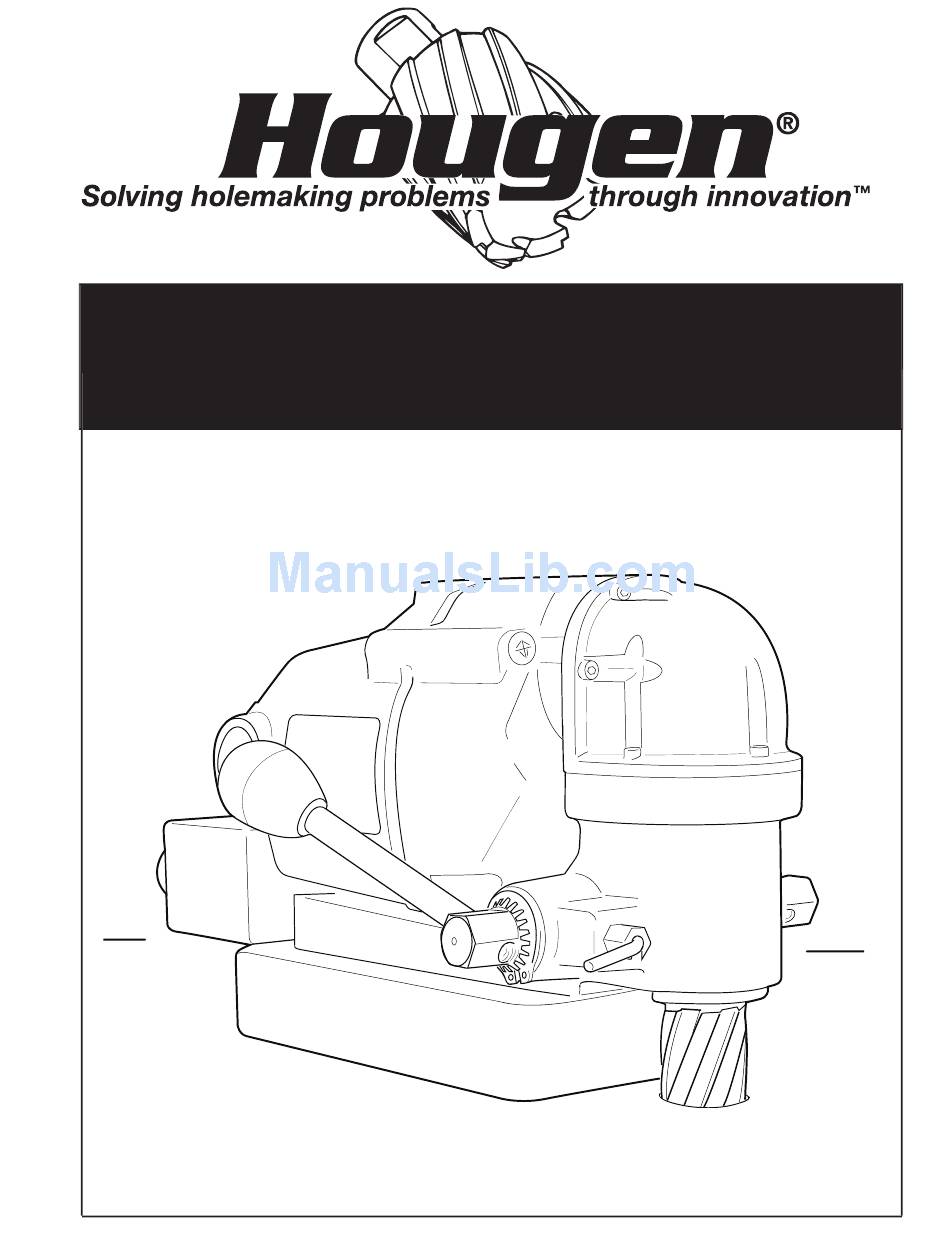

- Page 1 MODEL HMD115 PORTABLE MAGNETIC DRILLS OPERATOR’S MANUAL FOR USE WITH ROTALOC™ CUTTERS...
-
Page 2: Safety First
Hougen. Your new Hougen Magnet Base Drill now incorporates a Label for the Drill Part Number and Serial Number. Below gives a explanation of the Part Number and the location of the Label is shown on the Drill Breakdown Diagram . -
Page 3: Important Safety Instructions
Do not use tool in presence of flammable liquids or 12. Non-Conforming Cutting Tools gases. Disconnect from power source when changing Your Mag Drill is designed to use Hougen Cutters. cutters or maintaining drill. The use of drilling tools having different shank styles is not recommended as they may not tighten securely 8. - Page 4 Wear protective hair covering to contain long hair. hold. Keep hands and clothing away from all moving parts. Do not use Hougen Cutters where ejected slug 16. Do Not Abuse Cord might cause injury (slug ejected at end of cut).
- Page 5 REVIEW OF CONTROLS Motor On / Off Motor On / Off Motor On / Off Motor On / Off Motor On / Off Magnet On / Off Circuit Breaker Feed Handle Feed Lock / Release (Pull & Turn) Rotaloc™ Cutter Installation 1.
- Page 6 OPERATING INSTRUCTIONS 1. Place drill on material and locate for drilling hole. CAUTION: Do not over-feed cutter. Excessive feed pressure may cause the magnet to break free from 2. Press magnet switch to “ON” material. 3. Thread safety strap through opening between DRILLING MULTIPLE LAYER MATERIALS: motor and drill housing.
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS MOTOR MAGNET PRESS-ON RELEASE- OFF / 04644 17032 17034 17545 17035 01226 17575 01833 17049 BLACK POWER 01835 WHITE POWER 17048 MOTOR WHITE MOTOR BLACK Part # Description Part # Description 01226 Push Button Guard 17035 Momentary Switch 01833 Rocker Switch 17048... - Page 8 HMD115 DRILL PARTS DIAGRAM...
- Page 9 Rotaloc™ Cutters for HMD115 17042 Electrical Box The Rotaloc™ Annular cutters are made 17539 Control Panel Assy specifically for the HMD115. They are 04720 OD Spiral Lock equipped with 5/8” tool-less bayonet- 17546 Thurst Washer Bronze style twist and lock shank, and can drill up to 3/4”...
- Page 10 07123 Motor Diagram and Parts List Item # Part # Description Item # Part # Description 17615 Gear Housing 17511 Motor Assy 17616 Spindle 17600 Field case 17617 Fan Guide 17601 Gear Housing Cover 17602 Ball Bearing 17618 Gasket 17630 Armature 17603 Ball Bearing...
- Page 11 Photographs and Specifi cations shown are accurate in detail at time of printing. Manufacture reserves the right to make improvements and modifi cations without prior notice. Hougen, Hougen-Edge, and Punch Pro are proprietary trademarks of Hougen Manufacturing Inc. Ogura and the Ogura logo are proprietary trademarks of Ogura & Co., Ltd. Vac-...
