PORTABLE MAGNETIC DRILLS
OPERATOR'S MANUAL
FOR USE WITH ROTALOC PLUS™ CUTTERS

Advertisement

loading
Need help?

Need help?

Do you have a question about the HMD151 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hougen HMD151

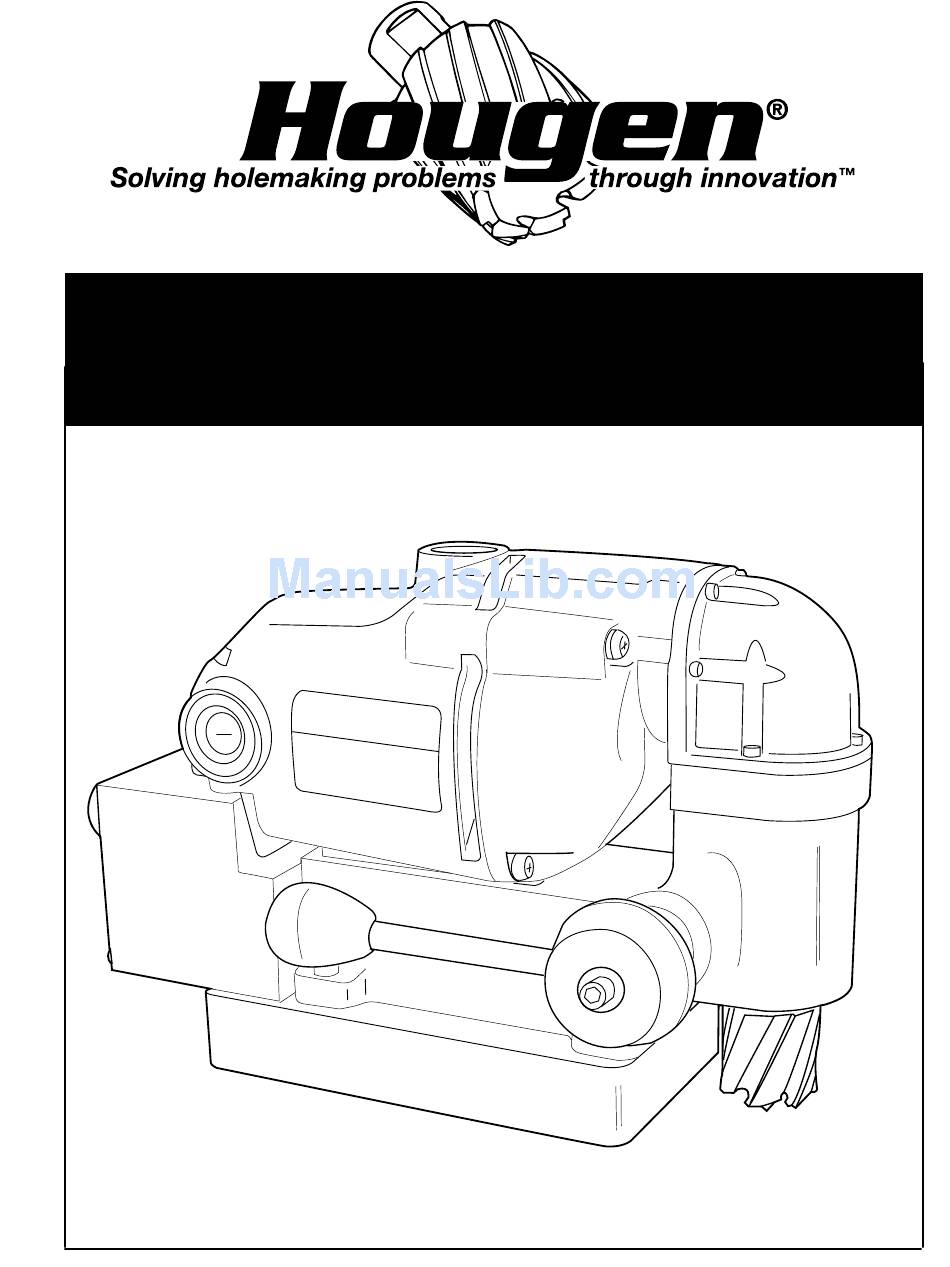

  • Page 1 HMD151(AUS) PORTABLE MAGNETIC DRILLS OPERATOR’S MANUAL FOR USE WITH ROTALOC PLUS™ CUTTERS...
  • Page 2 Magnetic Drill. Your model is designed to produce superior holes quickly and efficiently. Through constant innovation and develop- ment, Hougen is committed to provide you with hole-producing tools and products to help you be more productive. Before attempting to operate your new Portable Magnetic Drill, please read all instructions first.
  • Page 3: Important Safety Instructions

    Do not use tool in presence of flammable liquids or 12. Non-Conforming Cutting Tools gases. Disconnect from power source when changing Your Mag Drill is designed to use Hougen Cutters. cutters or maintaining drill. The use of drilling tools having different shank styles is not recommended as they may not tighten securely 8.
  • Page 4 Wear protective hair covering to contain long hair. hold. Keep hands and clothing away from all moving parts. Do not use Hougen Cutters where ejected slug 16. Do Not Abuse Cord might cause injury (slug ejected at end of cut).
  • Page 5: Safety Switch Indicator Light

    SAFETY SWITCH INDICATOR LIGHT The Safety Switch Indicator Light is a Standard Safety Feature on HMD151 magnetic drills. Its purpose is to inform the user that an unsafe condition exists or the safety switch is defective. If light is Green: In normal operation the safety switch light will be green.
  • Page 6: Operating Instructions

    OPERATING INSTRUCTIONS 1. Place drill on material and locate for drilling hole. 6. Feed Cutter slowly into workpiece. Only after cutting path is established to a depth of about 2mm can 2. Press magnet switch to “ON” additional force be applied to feed handles. 3.
  • Page 7: Hookup Diagram

    Safety Switch (Blue-J4) From Magnet (J1) 04437 05289 17689 04771 (HMD151Aus) 17640 (HMD151) M A G N E T S A F E T Y S W I T C H L I G H T 04877 04881 04879 04878...
  • Page 9 HMD151 PARTS LIST Item # Part # Description Item # Part # Description 90027 Washer SAE Flat 17519 Motor Assy 17693 Faceplate Assy 17282 Feed Hub Assy 17694 Faceplate Assy Aus Model 17283 Feed Handle Assy 17510 Gear Cap Assy...
  • Page 10 Motor Diagram and Parts List 17611 17601 17625 17627 17605 17615 17631 17609 17616 17626 17604 17618 17608 17613 17603 17602 17610 17607 17612 17624 17629 17617 Wires to Motor 17632 Cord 17621 17623 17606 17602 17622 17600 Part # Description Part # Description...
  • Page 11: Rotaloc™ Series Of Cutters

    To obtain warranty service, return the item(s), transportation prepaid, to your nearest Factory Authorized Repair Center or to Hougen Manufacturing, Inc., 3001 Hougen Drive, Swartz Creek, Michigan 48473.
