operator's manual

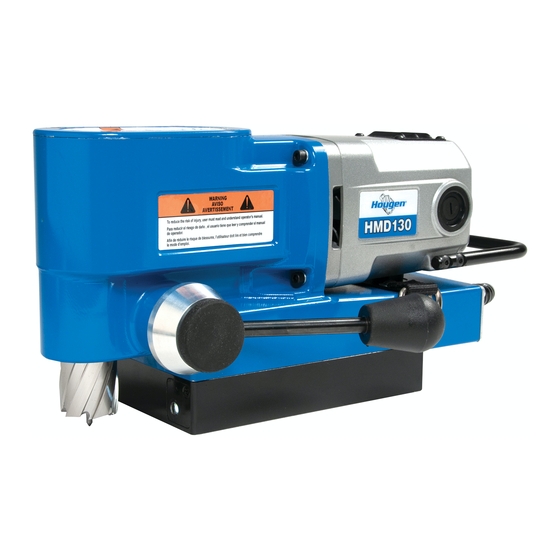

hMD130 series portaBle MaGNetic Drill
covers Drill
covers Drill
part Numbers:
part Numbers:
0130101
for use with rotaloc plus™ cutters
OM1300717CSA Printed in U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMD130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hougen HMD130

Summary of Contents for Hougen HMD130

  • Page 1 MaGNetic Drill covers Drill covers Drill part Numbers: part Numbers: 0130101 for use with rotaloc plus™ cutters OM1300717CSA Printed in U.S.A.
  • Page 2 Portable Magnetic Drill. Your model is designed to produce superior holes quickly and ® efficiently. Through constant innovation and development, Hougen is committed to provide you with hole producing tools and products to help you be more productive. Before attempting to operate your new Portable Magnetic Drill, please read all instructions first. These include the Operator’s Manual and Warning Label on the unit itself.
  • Page 3 WARNING Cutters are sharp. Wear To prevent electric Do not stare at Always wear eye The slug is ejected at gloves when installing shock, do not use operating light. protection while using the end of the cut. Do or removing cutter from power tools near wet cutting tools, or in the not aim cutter or arbor...

  • Page 4: Additional Safety Instructions

    fire and/or serious personal injury. h) Keep handles and grasping surfaces, clean and Do not use Hougen Cutters where ejected slug might cause Important Safety Instructions - Continued injury (slug ejected at end of cut). Also, adhere to all free from oil and grease.

  • Page 5: Operating Instructions

    operatiNG iNstructioNs 6. Feed Cutter slowly into workpiece. Only after cutting 1. Place drill on material (at least 3/8" thick) and path is established to a depth of about 1/16" can locate for drilling hole. additional force be applied to feed handles. Ease up on feed pressure as cutter starts 2.

  • Page 6: Safety Switch

    safetY switch NOTE: The Safety Switch located in the base of the unit shuts off the motor when the unit lifts. The magnet will stay engaged until you turn off the magnet. It is important to keep this area clean and free from chips. Periodically check this switch for proper function and if for some reason it is not working properly, send the unit to an authorized repair center for service.

  • Page 7: Control Panel Assembly

    6 & 7 08435 control panel assembly - HMD130 115V item part # Description 08497 Faceplate 4 & 5 90571 Power Cord Assy 01226 Guard - Switch 01334 Switch - Motor On 02409 Cover - Switch Green...
  • Page 10 # part # Description item# part # Description 08426 Drill Housing & Label Assy 17475 Ring - Retaining 12mm shaft 08699 Gear Box Cap 08453 Ring - Retaining, Int 1.259 Bore 08428 Gear Box Cover 04718...
  • Page 11 The RotaLoc Plus™ cutters are made specifically for the HMD130. They are equipped with 5/8" tool-less Bayonet-style twist and lock shank, 1" D.O.C. stack cut cutter. They are made of premium M42 high speed steel and available in diameters from 7/16"...

  • Page 12: Commercial / Industrial Limited Warranty

    No other expressed warranty is given or authorized. hougen Manufacturing, inc. disclaims any implied warranty of MerchaNtaBilitY or fitNess for any period beyond the expressed warranty and shall not be liable for incidental or consequential damages.
  • Page 13 Del operaDor talaDro MaGNÉtico portÁtil De la serie hMD130 comprende el taladro covers Drill Números de piezas: part Numbers: 0130101 para usar coN cortaDores aNulares rotaloc plus™ OM1300717CSA Impreso en EE. UU.
  • Page 14 Bienvenido a hougen Felicitaciones por la compra del taladro magnético portátil de Hougen®. El modelo que ha elegido está diseñado para abrir orificios con la mayor calidad, rapidez y eficiencia. Mediante la innovación y el desarrollo constantes, Hougen está plenamente comprometido con la tarea de ofrecer productos y herramientas de perforación que le permitan mejorar su productividad.

  • Page 15: Personal Safety

    ADVERTENCIA Los cortadores anulares son Para evitar descargas No mire fi jamente a la Siempre utilice protección ocular El bocado central sólido se fi losos. Utilice guantes para eléctricas, no utilice al manejar herramientas de corte expulsa al fi nalizar el corte. No luz de funcionamiento.

  • Page 16: Instrucciones Importantes Para La Seguridad

    Read and understand all instructions. Failure to follow all instructions listed be las condiciones de trabajo y el trabajo a realizar. La utilización Hougen en lugares donde el bocado central sólido pueda causar Important Safety Instructions - Continued may result in electrical shock, fire and/or serious personal injury.
