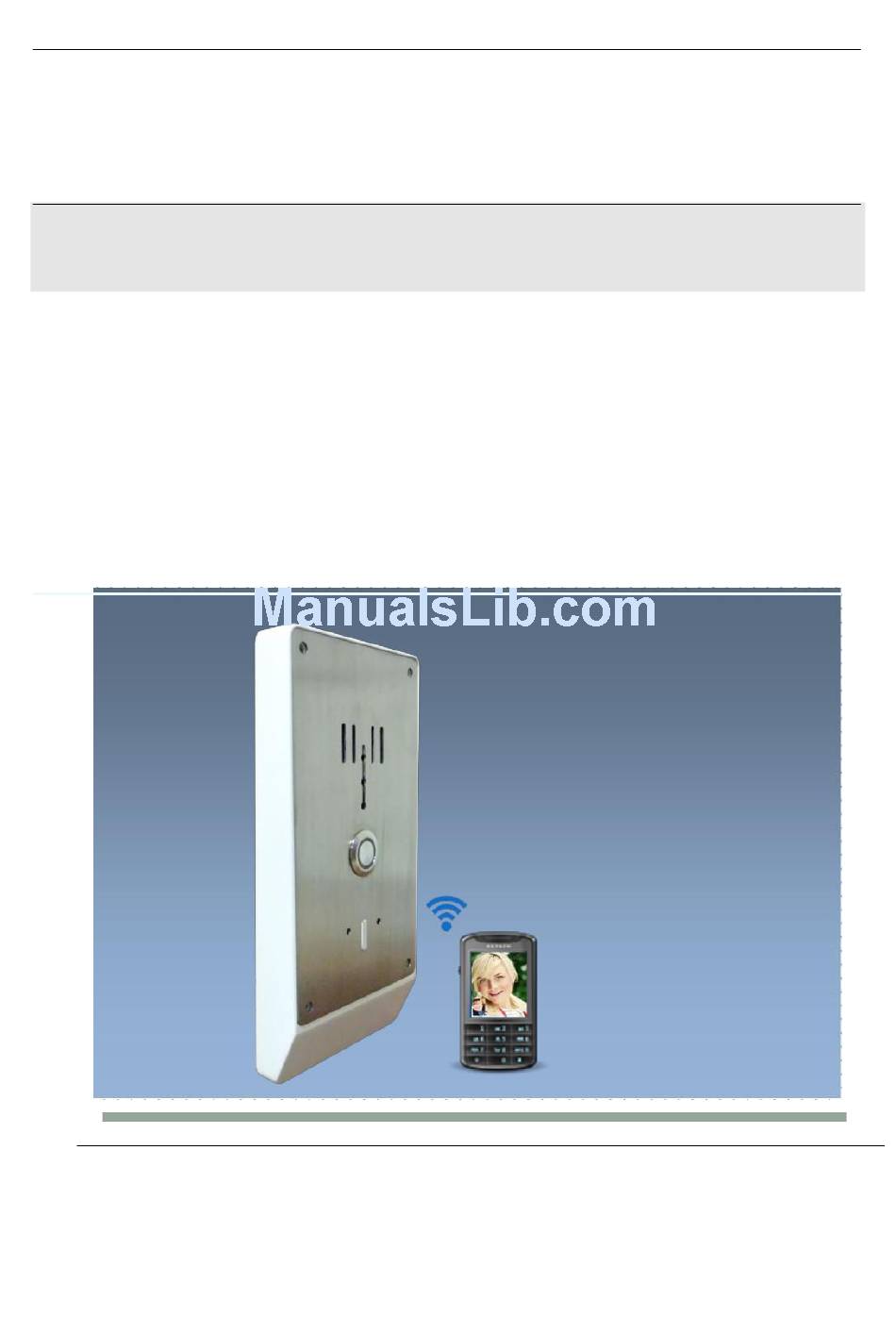

- Page 1 ARISTEL NETWORKS MANUAL 3G VIDEO INTERCOM AN1104 3G Video Intercom (ACCESS CONTROL SYSTEM) Please read these instructions before using. Keep for future reference. Revision E5 28 Jan 2013 AN1104 3G Video Intercom...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..............3 AN1104 3G VIDEO INTERCOM INTRODUCTION ..........4 AN1104 3G VIDEO INTERCOM WITH ACCESSORIES .......... 4 INSTALLATION ......................5 AN1104 3G Video Intercom Unit .................. 6 Wiring Diagram ....................... 6 LED Indicator ......................... 7 AN1104 3G VIDEO INTERCOM OPERATION ............ -
Page 3: Important Safety Instructions
Thank you for purchasing the AN1104 3G Video Intercom. Please read this manual carefully before using. Be sure to keep this manual for future reference in case of any problem or question should arise. IMPORTANT SAFTY INSTRUCTIONS When using this AN1104 3G Video Intercom, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. -
Page 4: An1104 3G Video Intercom Introduction
AN1104 3G VIDEO INTERCOM INTRODUCTION The 3G Video Intercom AN1104 is an intercom system which can be installed at the entrance of a building, factory, farm or car park. It is an ideal product to replace a traditional door phone. The user has the option to see and speak with visitors at the door entrance via simple video call from a 3G/ ability to make video calls. -
Page 5: Installation
INSTALLATION This 3G Video Intercom is suitable for flush mounting. (Front View) (Side View) (Rear View) AN1104 3G Video Intercom Revision E5 28 Jan 2013... -
Page 6: An1104 3G Video Intercom Unit
AN1104 3G Video Intercom Unit Speaker Call Button Camera Microphone Wiring Diagram Revision E5 28 Jan 2013 AN1104 3G Video Intercom... -
Page 7: Led Indicator
Red (power off) 1. SIM card You MUST remove the PIN lock from the SIM before inserting it in the unit AN1104. ( use your mobile phone to remove the SIM PIN lock ) Insert the SIM card into the SIM card holder and close it carefully. -
Page 8: An1104 3G Video Intercom Operation
AN1104 3G VIDEO INTERCOM OPERATION When the visitor pushes the call button to activate the AN1104 ring tone will be heard from the 3G Video Intercom. At the same time connection is established with the phone number that is stored in the AN1104. - Page 9 System flow Chart Dial in the 3G video intercom To search if the phone number is stored in the list as a door open ID. (Nlax:100 numbers) Open the door without answering the call Intercom would answer the call (signal by one beep) incorrect Enter system menu 3 times failure...
- Page 10 *13*1212# Access control mode (audio only) (password for door open ) default *14*1212# default [*33*5678# (audio & video) AN1104 3G Video Intercom Revision E5 28 Jan 2013...
-
Page 11: Enter Listener Monitoring Mode
To end programming mode just hang up. NOTE: *To be successful in programming, originate a call from a land line and enter the digits slowly or using programming by text message. Revision E5 28 Jan 2013 AN1104 3G Video Intercom... -
Page 12: Programming
Nokia and Samsung mobiles can support this feature. iPhone does not support video calls but audio only due to restrictions by Apple Inc. Check if your mobile phone has ability to make video calls Revision E5 28 Jan 2013 AN1104 3G Video Intercom... - Page 13 User command code CORRECT SMS format: *12*1234#11105857235#1220865682554#1310862235644# SMS reply: 11105857235#1220865682554#1310862235644# OK User command code ERROR (user command 12 9 error) SMS format: *12*1234#11105857235# 12 0865682554#1310862235644# SMS reply: 1110587235# 12 0865682554# Error Revision E5 28 Jan 2013 AN1104 3G Video Intercom...
-
Page 14: Door/ Gate Release
When 3G Video Intercom receives a call from user, it will check the calling number and if the number is in the list, the 3G Video Intercom will drop the call and then open the gate / door. The 3G anything to open the gate / door. Revision E5 28 Jan 2013 AN1104 3G Video Intercom... - Page 15 To activate relay by pressing *33*5678# (5678 is default password), the door can be opened after enter correct command code. *This is for door open option for telephone numbers not stored. Revision E5 28 Jan 2013 AN1104 3G Video Intercom...
-
Page 16: Check Gsm Signal Strength
Once the administrator number is stored in the unit whether programming via dialing in or text messages, can only be carried out by this number. Example: Program a mobile number as an administrator number via SMS Mobile number: 0865682554 SMS format *12*1234#740865682554# AN1104 3G Video Intercom Revision E5 28 Jan 2013... -
Page 17: User Commands
No reply (default password:5678) Release relay *35* [ password ] # No reply (default password:5678) SMS data error SMS Data Error (Only 0~9 # are available) Function code error Function Code Error Revision E5 28 Jan 2013 AN1104 3G Video Intercom... - Page 18 None Delete administrator 74*# delete administrator phone None phone number number X: 0, 1 ,2 0 = OFF / 1=GND Door opening detection 81 [ X ] # 2= EOL (10Kohm) Revision E5 28 Jan 2013 AN1104 3G Video Intercom...
-
Page 19: Specifications
1= alarm / 2= SMS & alarm Reset 999# reset default None How To Reset The Hardware When You Forget your Password AN1104 3G Video Intercom Specification Operating Voltage 12 ~ 24 Volt AC/DC Operating Current Maximum 250mA, Typically 55mA UMTS Frequency 850/1900 MHz for Telstra &... - Page 20 5. Select and prepare your SIM card as per the AN1104 installation instruction manual, then insert it into the SIM card holder on the main PCB in the white enclosure.
