QUICK INSTALL GUIDE

INSTALLATION

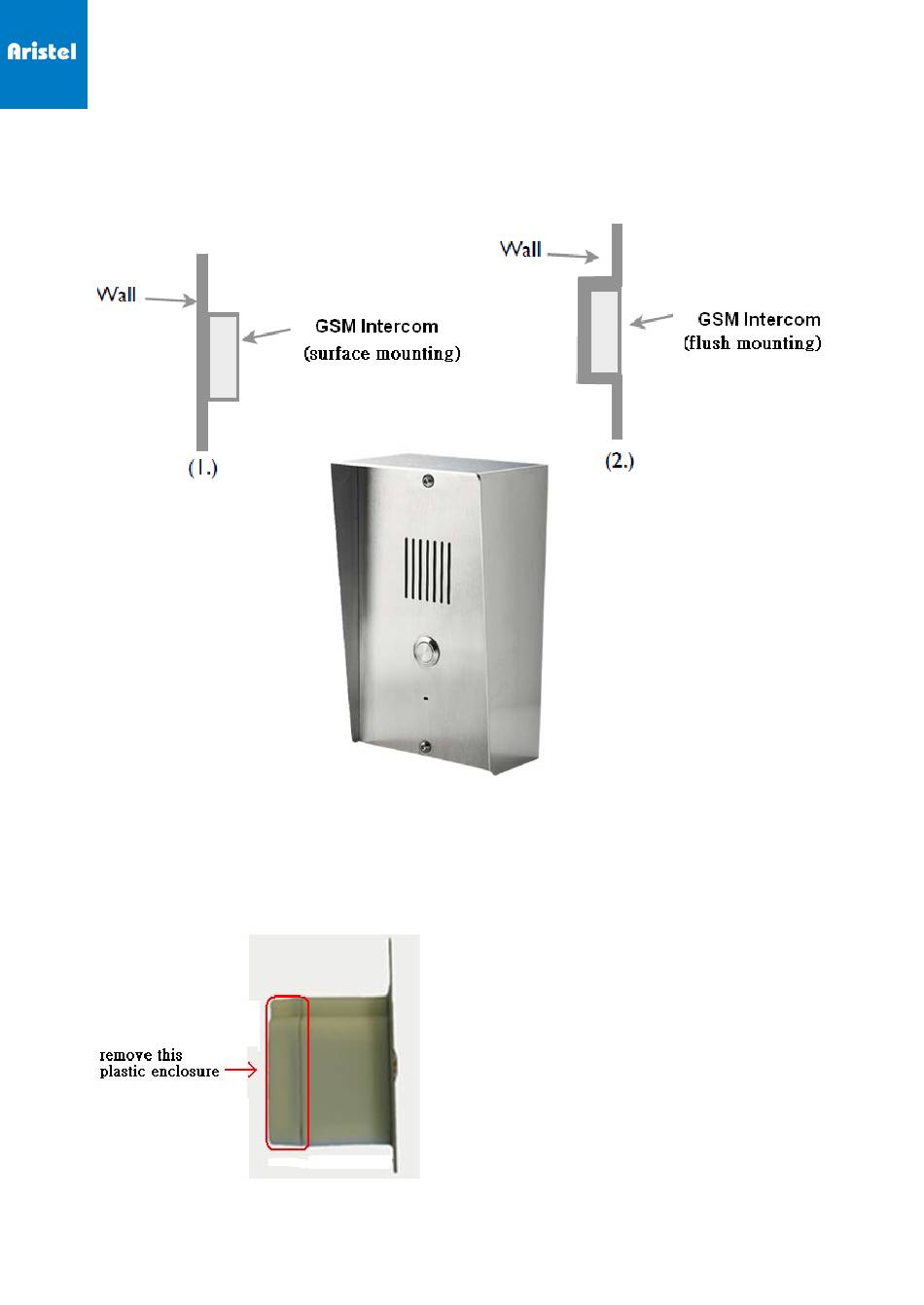

This 4G Intercom is suitable for both flush and surface mounting.
Note:
For surface mounting, you will have to remove the plastic enclosure before fitting main
station into the stainless steel cabinet.
AN1804 4G
1/3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AN1804 and is the answer not in the manual?

Questions and answers

Related Manuals for Aristel AN1804

Summary of Contents for Aristel AN1804

  • Page 1 AN1804 4G QUICK INSTALL GUIDE INSTALLATION This 4G Intercom is suitable for both flush and surface mounting. Note: For surface mounting, you will have to remove the plastic enclosure before fitting main station into the stainless steel cabinet.
  • Page 2 AN1804 4G QUICK INSTALL GUIDE Intercom Unit Speaker Call Button Microphone Wiring Diagram...
  • Page 3 AN1804 4G QUICK INSTALL GUIDE LED INDICATORS 1. LED “Intercom Status “ Indicator Status Yellow (standby) Flashes once per 5 seconds Yellow (using) Solid 2. LED ‘Network “Indicator Status Green (ready) Flashes once per 3 seconds Green (searching) Flashes once per second...
