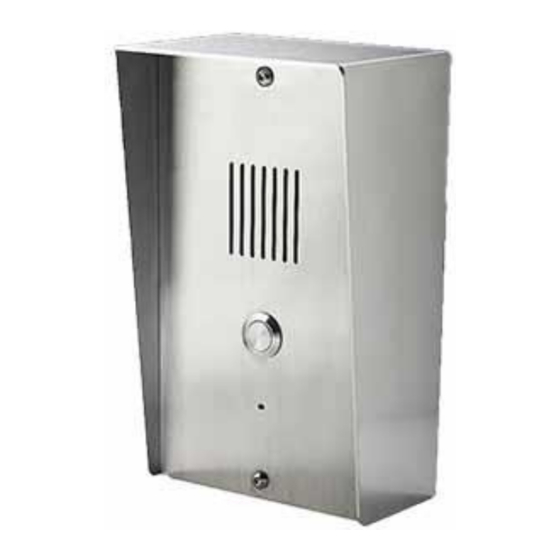

Aristel AN1204 Manual

3g door intercom
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ARISTEL NETWORKS
MANUAL
DOOR INTERCOM
AN1204 3G INTERCOM
(ACCESS CONTROL SYSTEM)
For your protection, read these instructions completely
And keep them for future reference.
Revision E16 ,Oct 2015
AN1204 3G Intercom
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AN1204 and is the answer not in the manual?

Questions and answers

Related Manuals for Aristel AN1204

Summary of Contents for Aristel AN1204

  • Page 1 ARISTEL NETWORKS MANUAL DOOR INTERCOM AN1204 3G INTERCOM (ACCESS CONTROL SYSTEM) For your protection, read these instructions completely And keep them for future reference. Revision E16 ,Oct 2015 AN1204 3G Intercom...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTION ....................3 AN1204 3G INTERCOM INTRODUCTION ..................4 AN1204 3G INTERCOM WITH ACCESSORIES ................... 4 INSTALLATION ..........................5 AN1204 3G Intercom Unit ......................6 Wiring Diagram ..........................6 LED Indicator ..........................7 AN1204 3G INTERCOM OPERATION ....................8 Enter Listener Monitoring Mode ....................

  • Page 3: Important Safety Instruction

    Be sure to keep this manual for future reference in case of any problem or question should arise. IMPORTANT SAFTY INSTRUCTIONS When using this AN1204 3G Intercom, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Please read the following before using your equipment.

  • Page 4: An1204 3G Intercom Introduction

    AN1204 3G INTERCOM INTRODUCTION The AN1204 3G is an intercom system, installed at the entrance of a building. It is an ideal product replacing the traditional door phone. It allows you to speak with visitors standing at the entrance of your company or house entrance from a remote location.

  • Page 5: Installation

    INSTALLATION This 3G Intercom is suitable for both flush and surface mounting. Note: For surface mounting, you will have to remove the plastic enclosure before fitting main station into the stainless steel cabinet. Revision E16 ,Oct 2015 AN1204 3G Intercom...

  • Page 6: Wiring Diagram

    AN1024 3G Intercom Unit Speaker Call Button Microphone Wiring Diagram Revision E16 ,Oct 2015 AN1204 3G Intercom...

  • Page 7: Led Indicator

    Register your SIM card with the network, and check it works in a mobile phone You MUST remove the PIN request from the SIM before inserting it in the AN1204 3G. Ensure the power is OFF before inserting the SIM card. Carefully side the SIM holder in the OPEN direction, insert the SIM, and slide in the CLOSED direction to lock it in place.

  • Page 8: An1204 3G Intercom Operation

    AN1204 3G INTERCOM OPERATION When the visitor pushes the call button to activate the AN1204 3G ring tone will be heard from the 3G intercom. At the same time connection is established with the phone number that is stored in the AN1204 3G.
  • Page 9 Revision E16 ,Oct 2015 AN1204 3G Intercom...

  • Page 10: Enter Listener Monitoring Mode

    To make changes on settings please refer to the user commands.(P15,16) To end programming mode just hang up. NOTE: *To be successful in programming, originate a call from a land line and enter the digits slowly or using programming by text message. Revision E16 ,Oct 2015 AN1204 3G Intercom...

  • Page 11: Programming

    SMS format: (delete 2&3 phone numbers from a call button) *12*1234#12*#13*# User command code CORRECT SMS format: *12*1234#1105857235#120865682554#130862235644# SMS reply: 1105857235#120865682554#130862235644# OK User command code ERROR (user command error) SMS format: *12*1234#1105857235#190865682554#130862235644# SMS reply: 110587235#190865682554# Error Revision E16 ,Oct 2015 AN1204 3G Intercom...

  • Page 12: Door/ Gate Release

    3G Intercom will drop the call and then open the gate / door. The 3G Intercom doesn’t answer the call, it simply checks the caller ID, and so it won’t cost you anything to open the gate / door. Revision E16 ,Oct 2015 AN1204 3G Intercom...
  • Page 13 To trigger relay 2 by pressing *36*5678# To hold relay 2 by pressing *37*5678# To release relay 2 by pressing *38*5678# *Above operation same as sending SMS commands *This is for door open option for telephone numbers not stored. Revision E16 ,Oct 2015 AN1204 3G Intercom...

  • Page 14: Check 3G Signal Strength

    Once the administrator number is stored, the unit will only accept programming from this number and only via SMS programming. Example: Program a mobile number as an administrator number via SMS Mobile number: 0865682554 Command to use *12*1234#74 [Admin number]# SMS format *12*1234#740865682554# To delete the Admin number *12*1234#74*# Revision E16 ,Oct 2015 AN1204 3G Intercom...

  • Page 15: Check A Log Of Dial In And Dial Out Numbers Via E-Mail Or Sms

    ( Doesn’t support Gmail) Command code Example : *42*1234# recipient e-mail address, recipient name, carbon copy e-mail address, carbon copy name# Recipient & Carbon copy settings Commande code example: Revision E16 ,Oct 2015 AN1204 3G Intercom...
  • Page 16 SIM card used in the intercom for time correction which will keep your “dial in numbers log” with correct date and time. Log Example: Revision E16 ,Oct 2015 AN1204 3G Intercom...
  • Page 17 Mobile number for receiving a log 0907967223 SIM phone number used in opener 0948778458 *12*1234#841#850907967223#860948778458# Send *44*1234# to check log Replied log information via SMS example: I: Dial IN numbers N: Next text massage E: End text message Revision E16 ,Oct 2015 AN1204 3G Intercom...
  • Page 18 Password mode access option 5678 Hold Relay 2 *37* [ password ] # To hold relay to keep door 5678 opened Release Relay 2 *38* [ password ] # To release relay for door close 5678 Revision E16 ,Oct 2015 AN1204 3G Intercom...
  • Page 19 No reply (default :5678) Release relay 2 *38* [ password ] # No reply (default :5678) ● (Only 0~9、*、# are available) SMS data error SMS Data Error ● Function code error Function Code Error Revision E16 ,Oct 2015 AN1204 3G Intercom...

  • Page 20: User Commands

    Delete all phone numbers Add administrator phone 74 [ admin number ] # admin number: None 3~15 digit codes number ( no number no restriction) Del administrator phone 74*# delete administrator phone None number number Revision E16 ,Oct 2015 AN1204 3G Intercom...

  • Page 21: How To Reset The Hardware When You Forget Your Password

    Relay 1 release, relay 2 release Disable,enable Call 896+X# X=0 (disable) button LED flashing X=1 (enable) Dial tone volume 898+X# X=1~4 ( levels) Reset 999# reset default None How To Reset The Hardware When You Forget your Password Revision E16 ,Oct 2015 AN1204 3G Intercom...

  • Page 22: Quick Programming Via Sms

    *20# (check reception level of intercom) *21# (check stored number. The unit will reply with list of stored numbers. I= dial in / O= dial out ) *22# (check gate / door status) Revision E16 ,Oct 2015 AN1204 3G Intercom...

  • Page 23: Troubleshooting (Q&A)

    Q. There is no audio from the gate, but the person at the gate can hear ok. A. This can be due to low reception. -Check reception level by *20#. -Change SIM card if necessary to another network which may have better coverage. -Purchase a high gain antenna. Revision E16 ,Oct 2015 AN1204 3G Intercom...
  • Page 24 Face plate: 170 x 100 mm, Stainless cabinet: 174 x 113 x 65 mm Length of antenna 3 meters cable Humidity Less than 80% RH Operating Temperature -20℃ to 50℃ Aristel Networks Pty Ltd www.aristel.com.au ph. (03) 8542 – 2300 fax (03) 9544 - 3299 Revision E16 ,Oct 2015 AN1204 3G Intercom...
